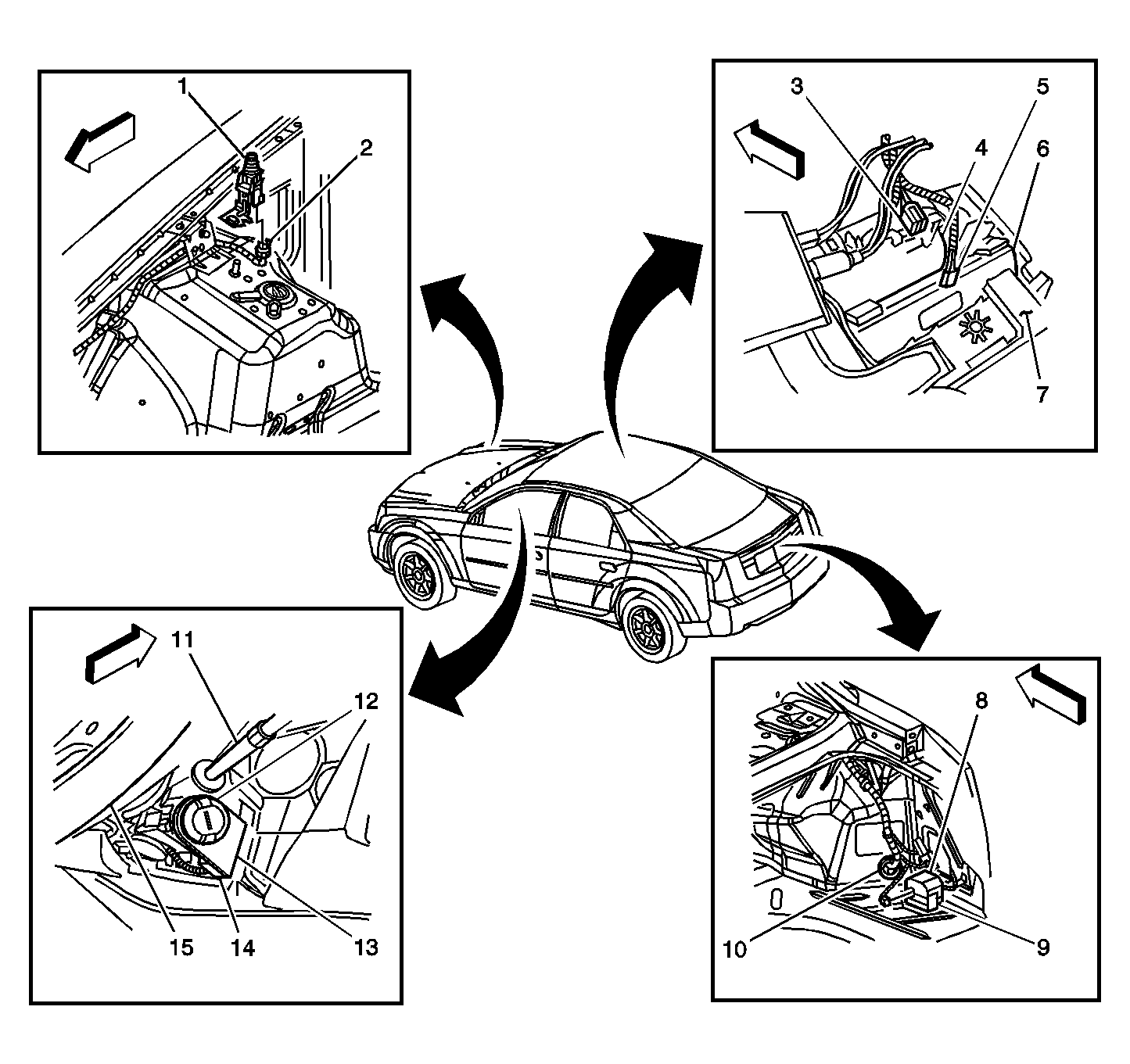

Immobilizer Component Views
| Callout | Component Name |
|---|---|
| 1 | Hood Ajar Switch (Export w/UA2) |
| 2 | Hood Ajar Switch Connector (Export w/UA2) |
| 3 | Dome Lamp Connector |
| 4 | Dome Lamp |
| 5 | Intrusion Sensor Connector (Export w/UA2) |
| 6 | Intrusion Sensor (Export w/UA2) |
| 7 | Headliner |
| 8 | Theft Deterrent Alarm (Export w/UA2) |
| 9 | Inclination Sensor (Export w/UA2) |
| 10 | P400, P401 on Left Side |
| 11 | Windshield Wiper/Washer Switch |
| 12 | Ignition Lock Solenoid |
| 13 | Theft Deterrent Control Module |
| 14 | Theft Deterrent Control Module Connector |
| 15 | Steering Wheel |
