Installation Procedure

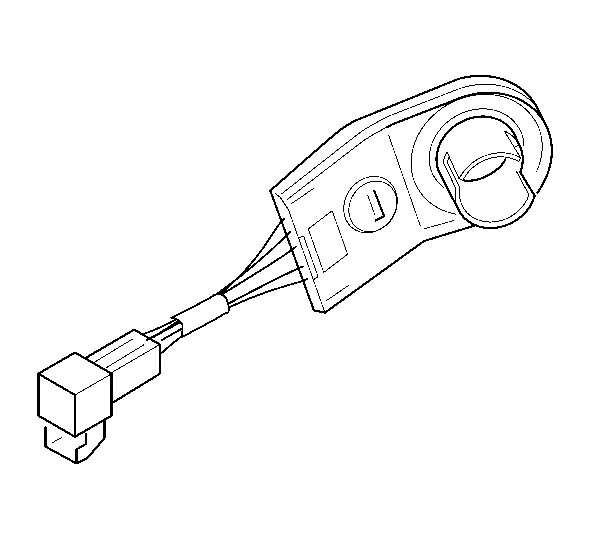

- Install the theft deterrent control module onto the ignition lock cylinder case assembly.
- Connect the connector to the theft deterrent control module.
- If necessary, connect the connector to the ignition lock cylinder case.
- Install the lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT .
- Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
- Enable the inflatable restraint steering wheel module. Refer to SIR DISABLING AND ENABLING .
- Program the theft deterrent system. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS .
- Refer to CONTROL MODULE REFERENCES for programming and setup information
CAUTION:
Improper routing of the wire harness assembly may damage the inflatable restraint steering wheel module coil. This may result in a malfunction of the coil, which may cause personal injury.
