Installation Procedure

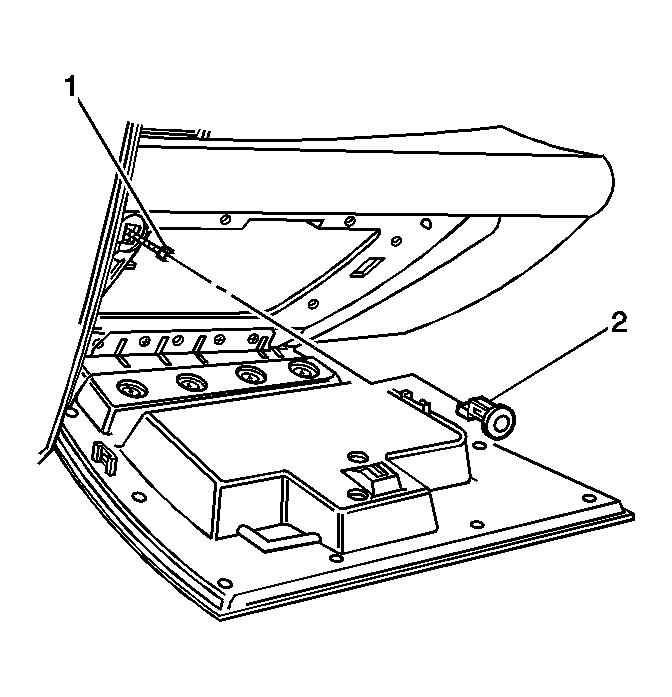

    Fig 1: Removing & Installing Traction Control Switch
    GM776642Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (1) to the traction control switch (2).
  2. Carefully push the traction control switch into the I/P compartment until it is locked into place.
  3. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
