Digital Radio Receiver Replacement (Convertible)

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

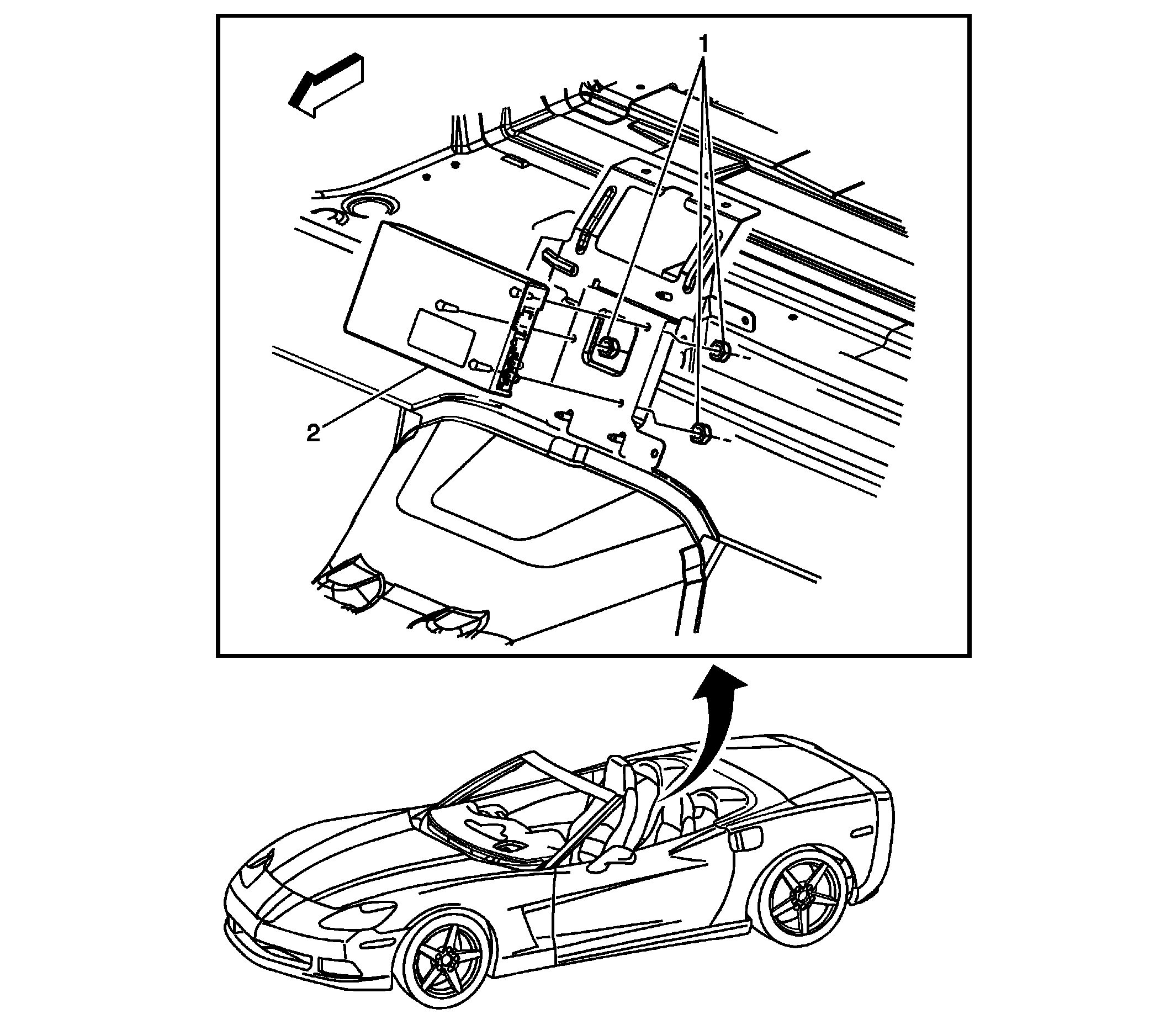

Fig 1: Removing/Installing Digital Radio Receiver (Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the compartment lid extension. Refer to Compartment Lid Extension - Folding Top Stowage .
1	Digital Radio Receiver Nuts (Qty 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Digital Radio Receiver Refer to Control Module References for programming and setup information. Tip: Disconnect the electrical connectors.
