Microphone Replacement - Radio Volume Compensator Interior

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

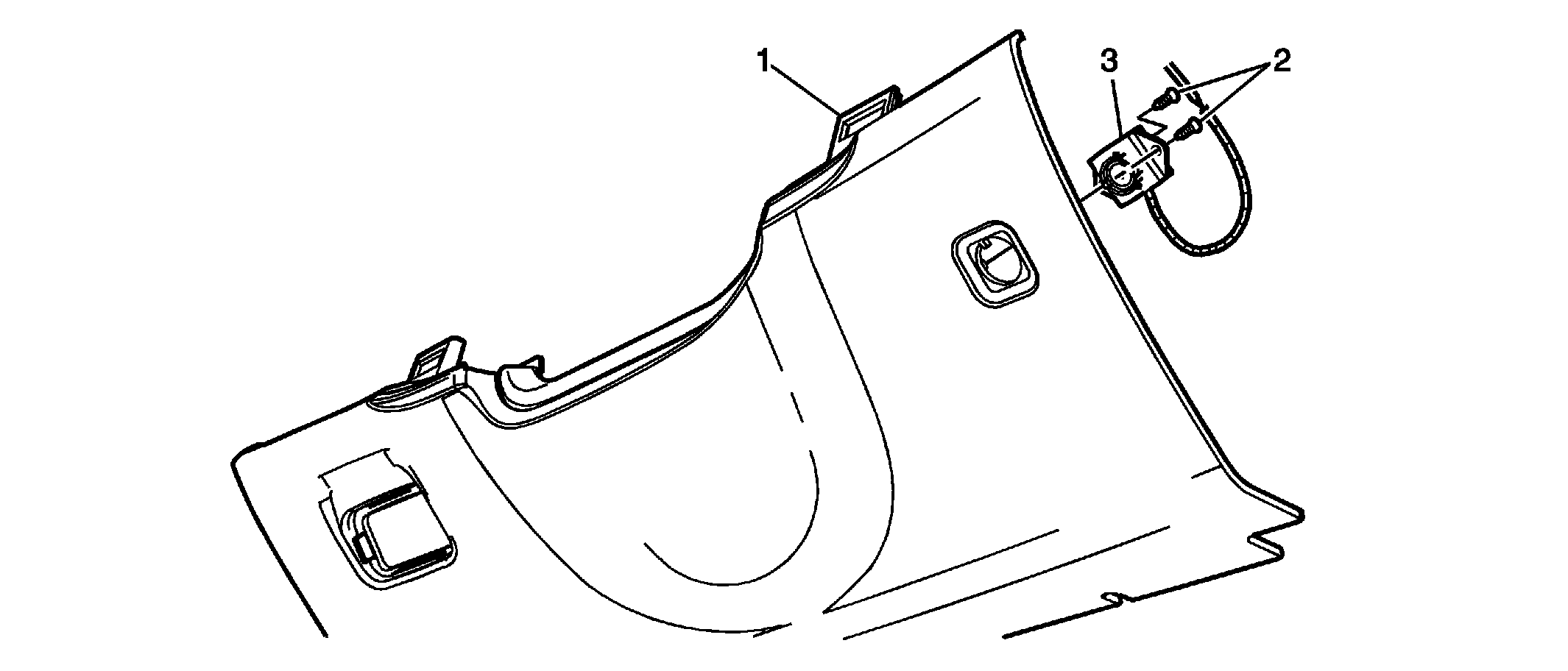

Fig 1: View Of Interior Radio Volume Compensator Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Panel Assembly, Driver Knee, Bolster Refer to Driver Knee Bolster Panel Replacement .
2	Screw, Radio Volume Microphone (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Microphone Assembly, Radio Volume
