Radio Antenna Module Replacement (Convertible)
WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Radio Antenna Module Replacement (Convertible)

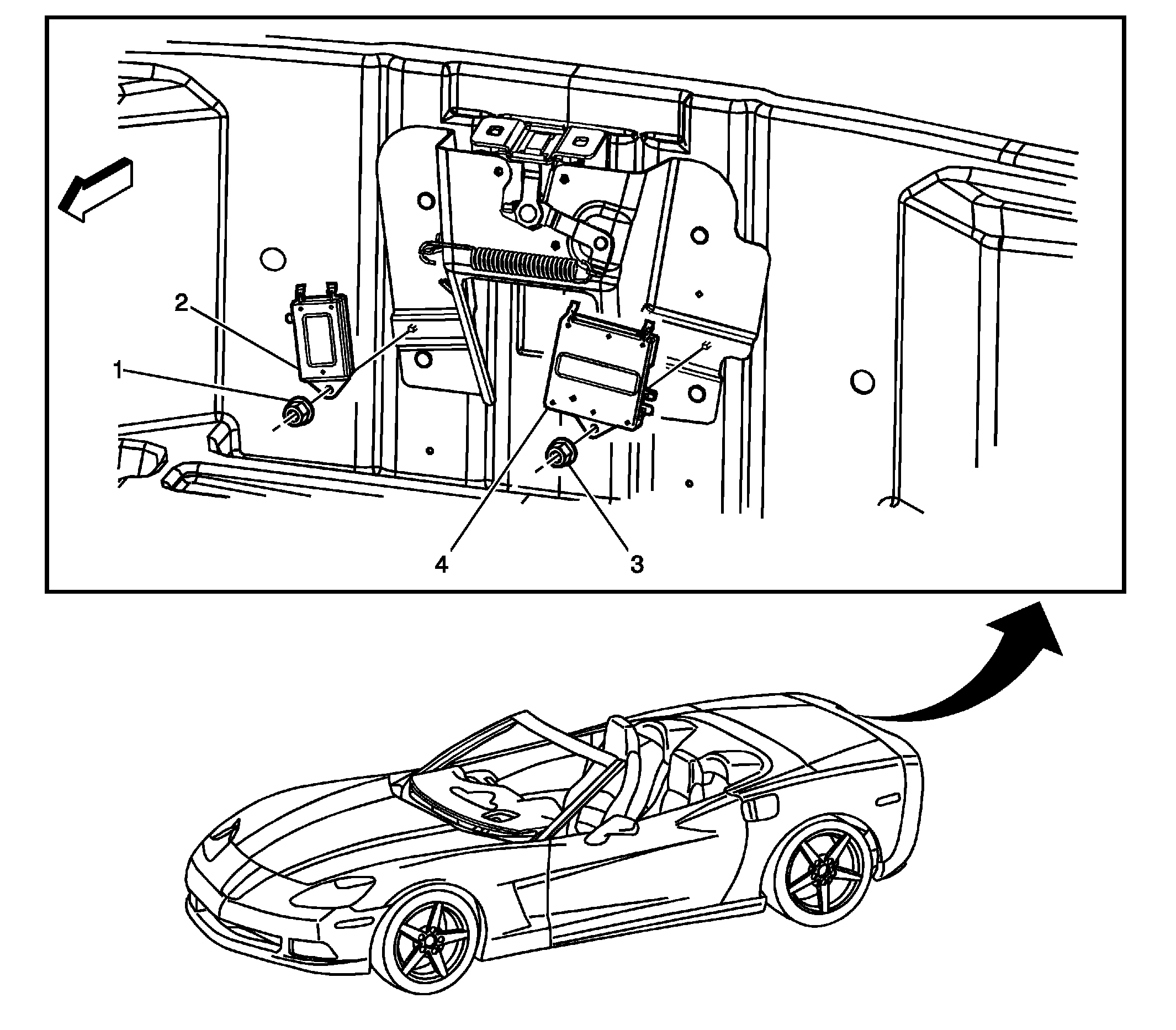

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment center trim panel. Refer to Rear Compartment Rear Center Trim Panel Carpet Replacement . |
|
| 1 | Nut, Antenna Module
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Module, Antenna - Right |
| 3 | Nut, Antenna Module Tighten: 2 N.m (18 lb in) |
| 4 | Module, Antenna - Left |
