Traction Control Switch Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

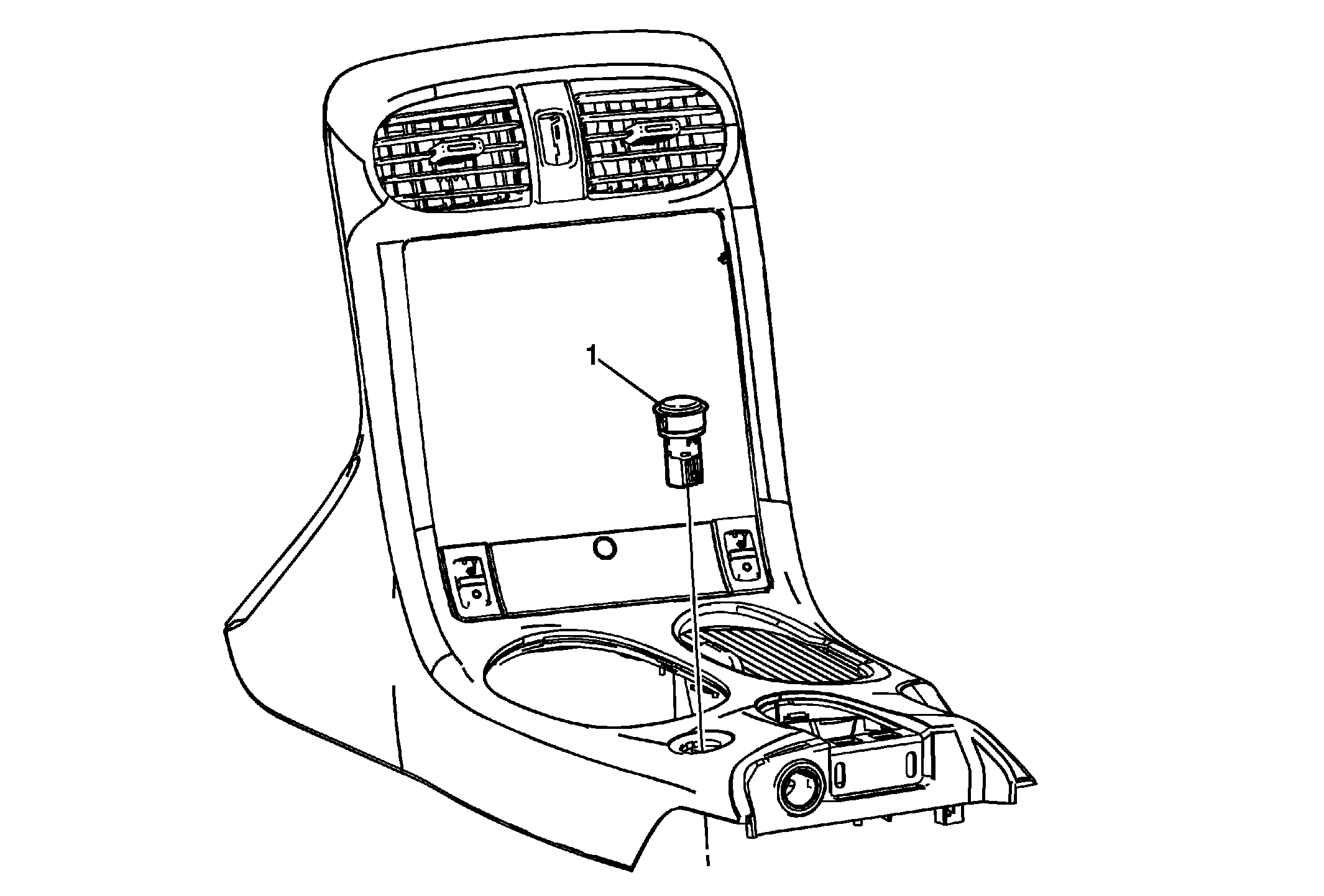

Fig 1: Locating Traction Control Switch Assembly
GM1765026Courtesy of GENERAL MOTORS CORP.
Traction Control Switch Replacement

Callout Component Name
Preliminary Procedure:
Remove the Instrument Panel Accessory Trim Plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
1 Traction Control Switch Assembly
Tip:  Squeeze the tabs securing the traction control switch to the trim plate and remove the switch from the plate.
