Garage Door Opener

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

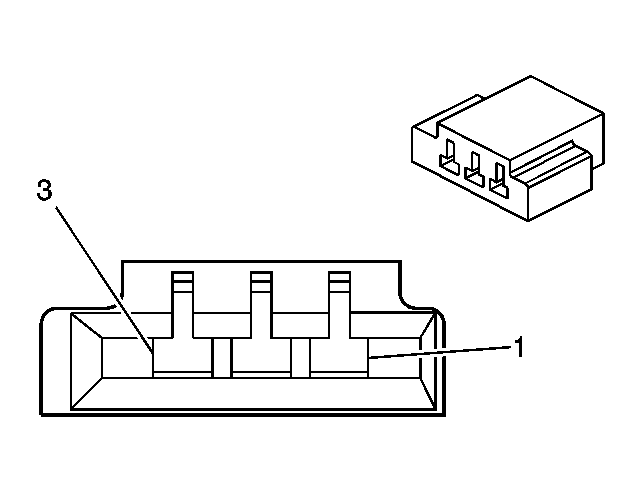

Fig 1: Garage Door Opener Connector End View

Courtesy of GENERAL MOTORS CORP.

Garage Door Opener Connector Parts Information

Connector Part Information

OEM: 09-01-6038
Service: 12162335
Description: 3-Way F Edge Card 156 Series (BK)

Terminal Part Information

Pins: 1, 3
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Garage Door Opener Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	OG	1732	Courtesy Lamps Supply Voltage
2	-	-	Not Used
3	BK	1550	Ground
