Cruise Control Component Views
WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

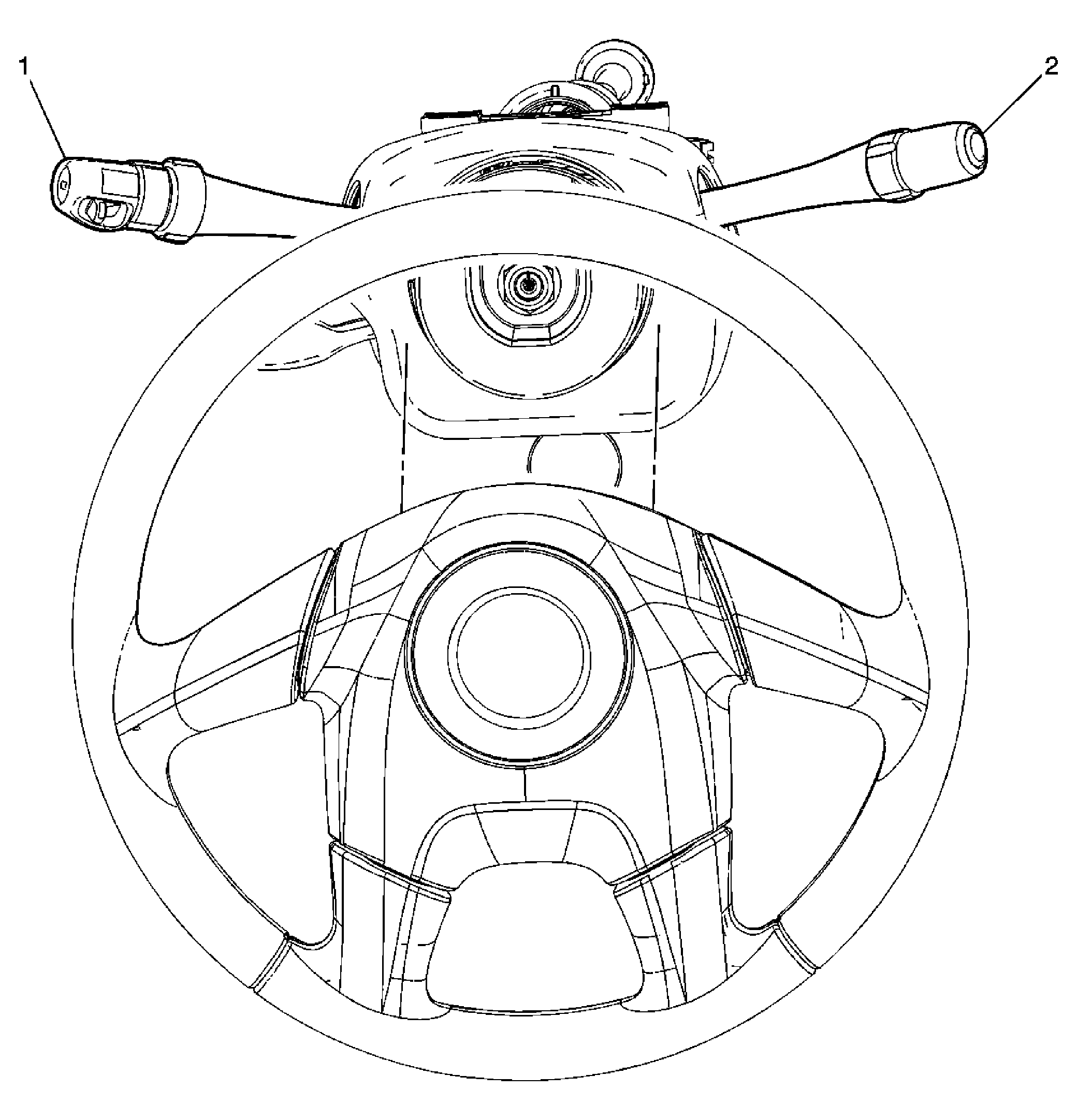

| Callout |
Component Name |
| 1 |
Turn Signal/Multifunction Switch |
| 2 |
Windshield Wiper/Washer Switch |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Brake Pedal Position Sensor |
| 2 |
Accelerator Pedal Position (APP) Sensor |
| 3 |
Clutch Start Switch (MM6/MZ6) |
| 4 |
Clutch Pedal Position (CPP) Switch (MM6/MZ6) |
