Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

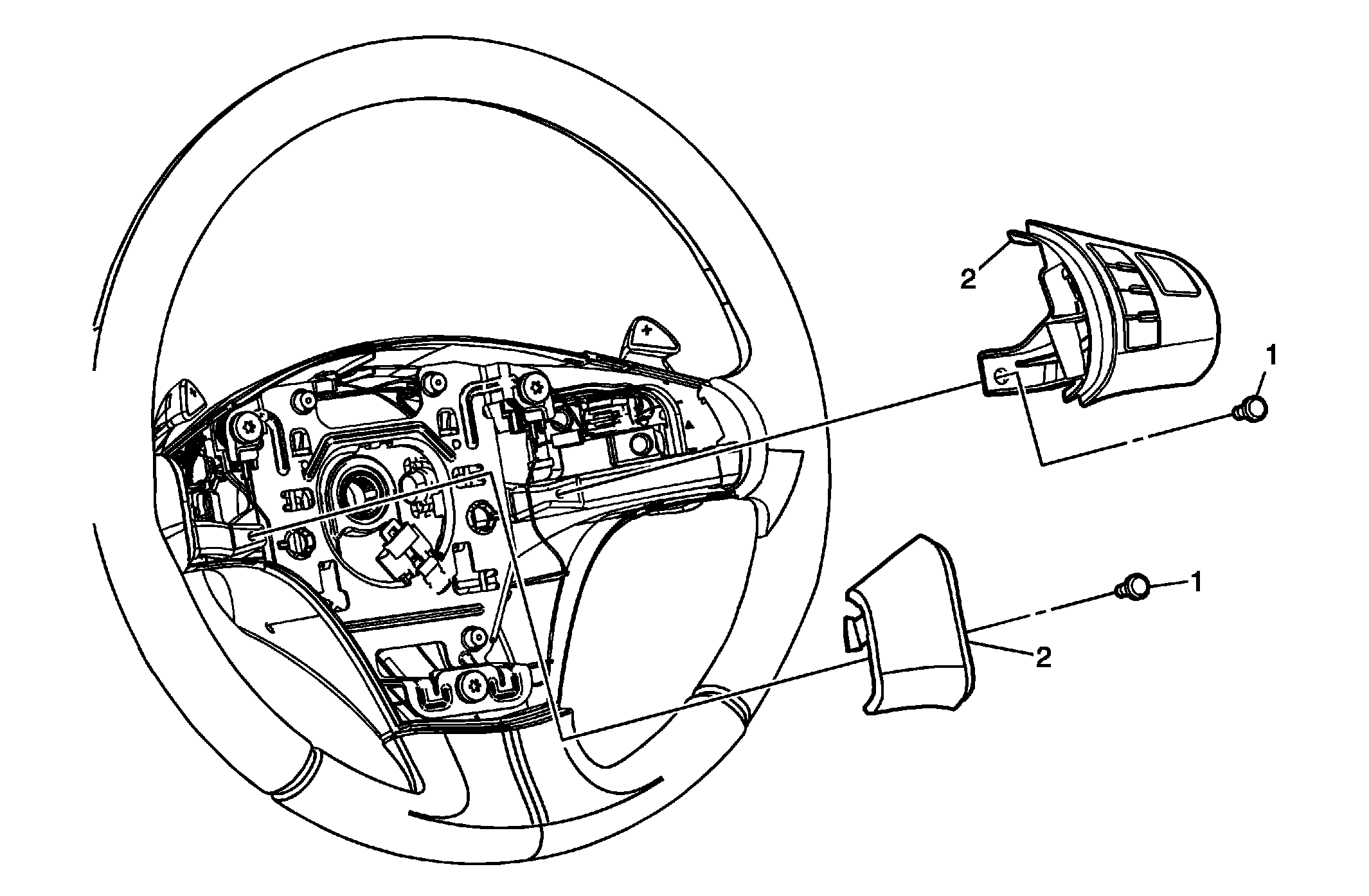

Fig 1: View Of Steering Wheel Control Switch & Screw

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Control Switch Screw (Qty: 2) Tip: Remove the steering wheel control switch screws. Tighten: 2 N.m (18 lb in)
2	Steering Wheel Control Switch Tip: Disconnect the electrical connectors from the from the switches.
