Transmission Temperature Sensor/Switch, A/T

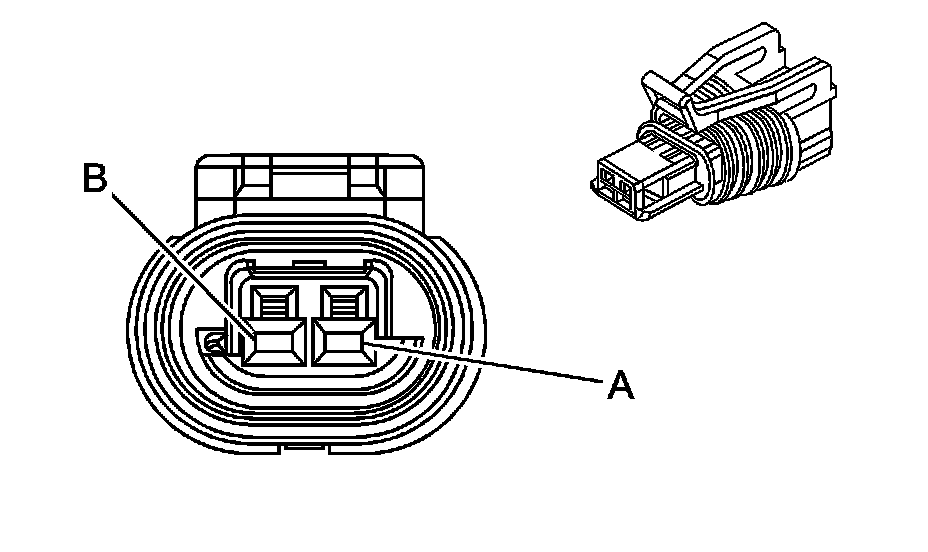

Displays and Gages Connector End Views

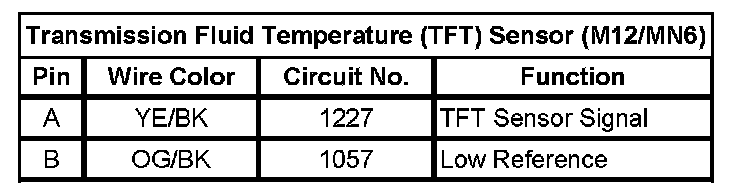

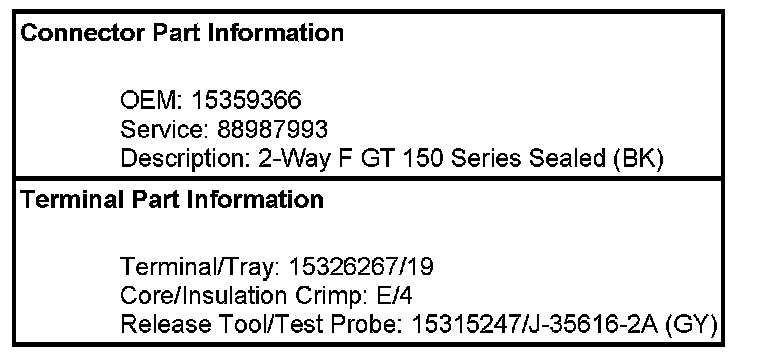

Transmission Fluid Temperature (TFT) Sensor (M12/MN6)
