Right Rear Fuse Block
Electrical Center Identification Views

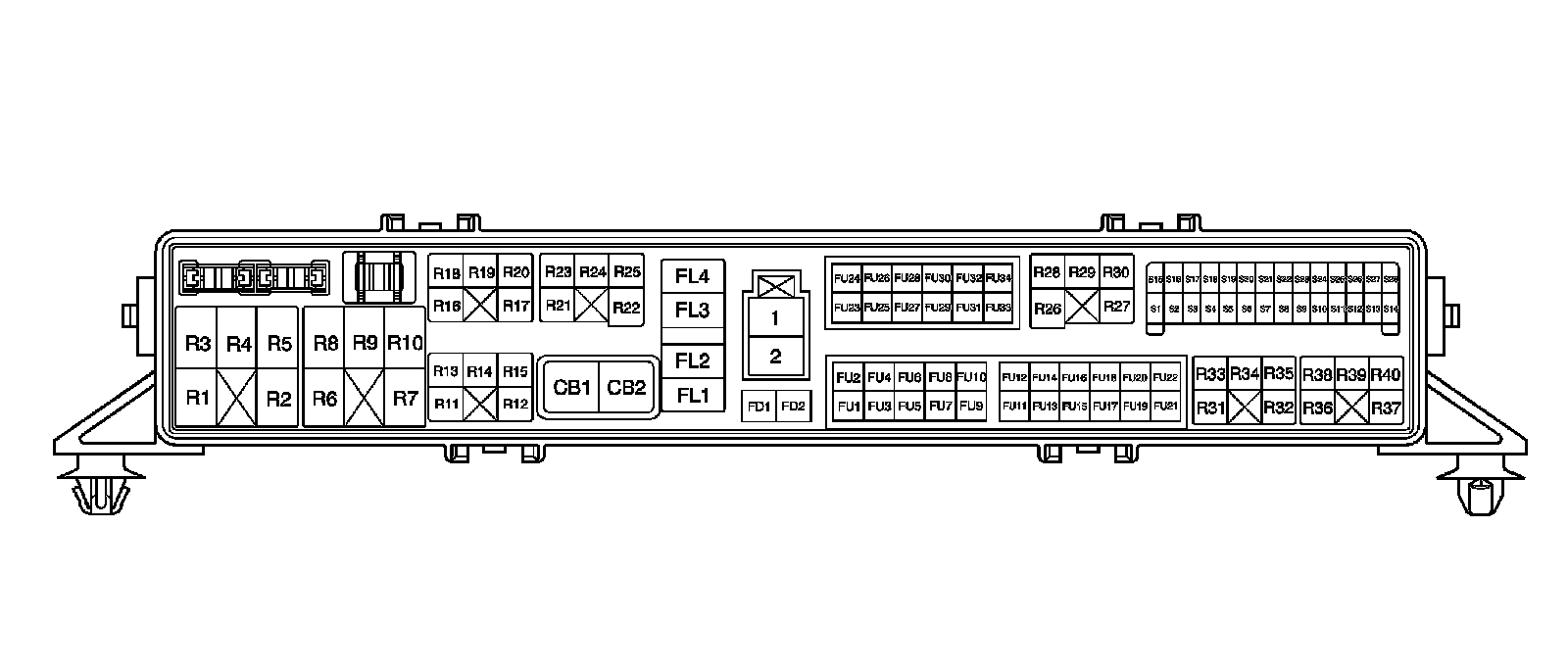

Fuse Block - Right Rear Top View

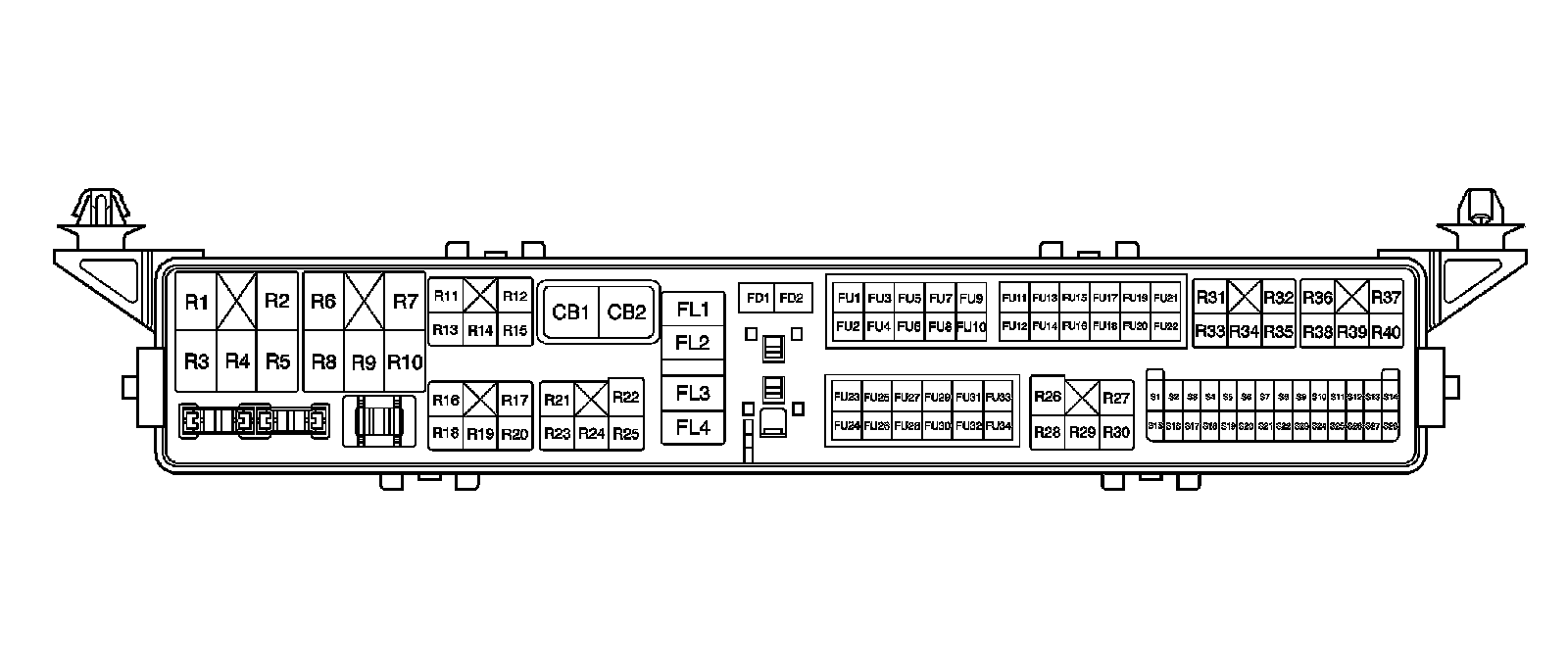

Fuse Block - Right Rear Bottom View

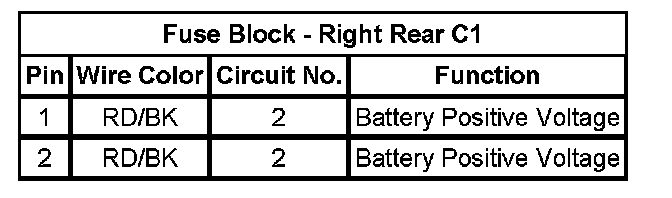

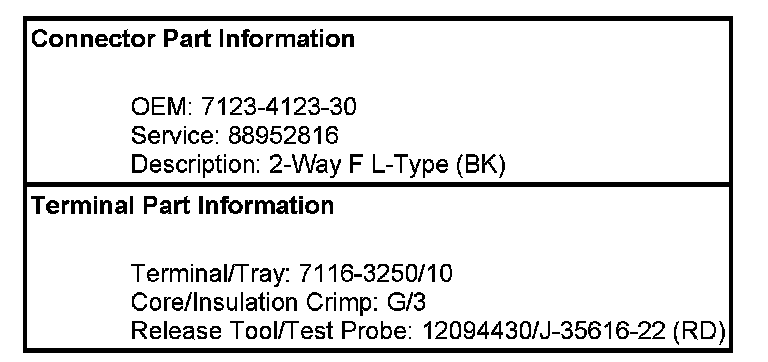

Fuse Block - Right Rear C1
Fuse Block - Right Rear

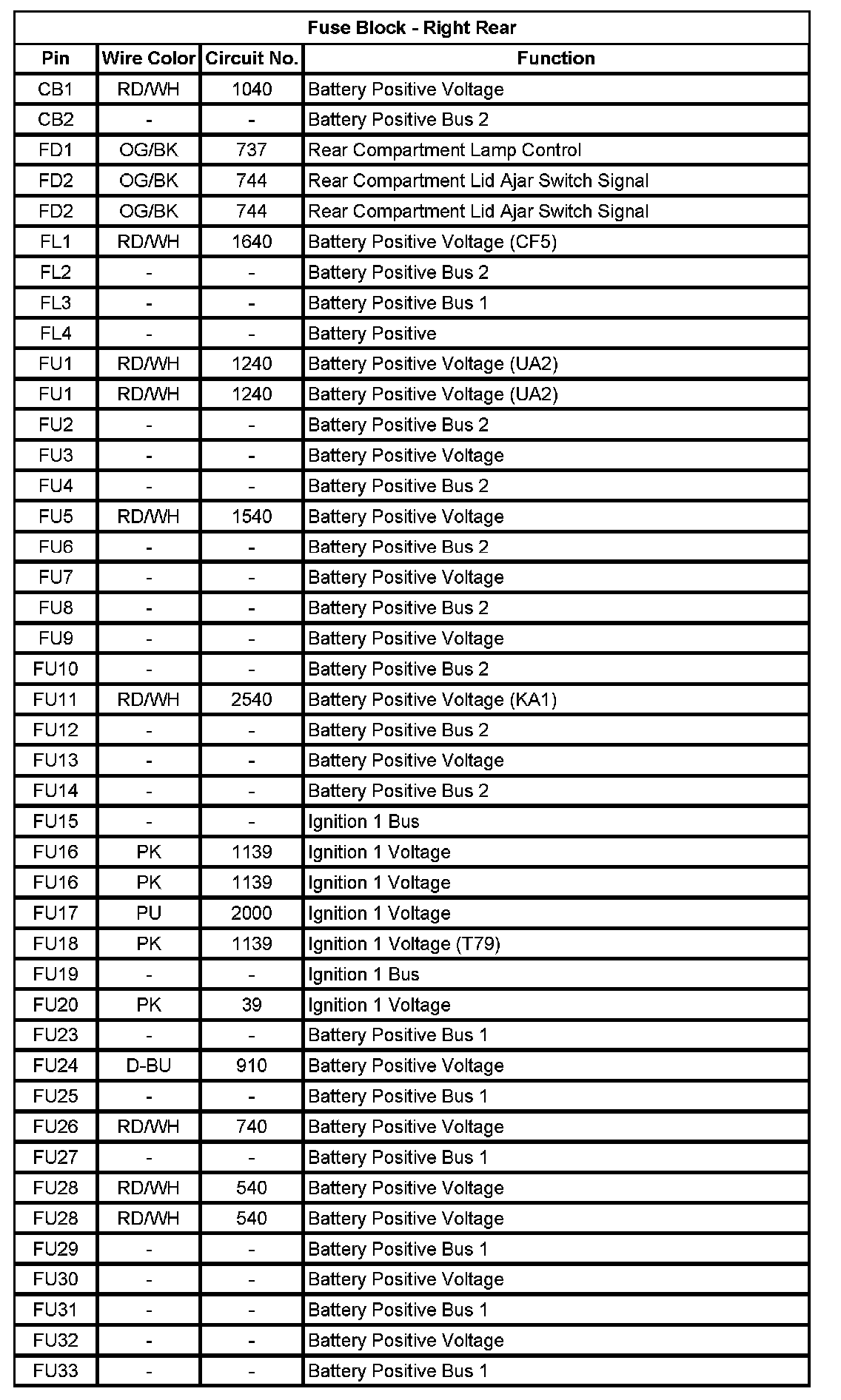

Fuse Block - Right Rear (Pin CB1 To FU33):

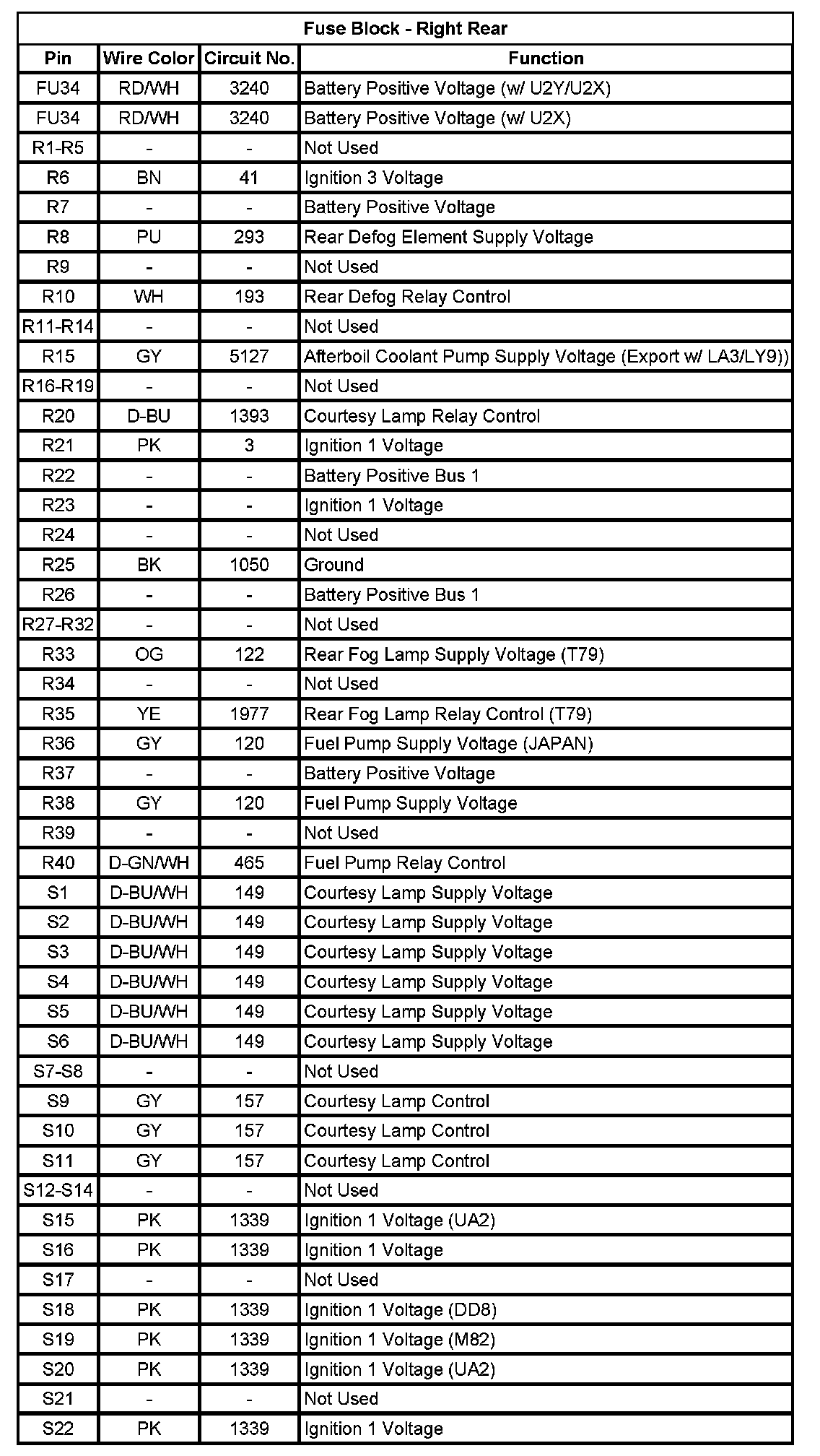

Fuse Block - Right Rear (Pin FU34 To S22):

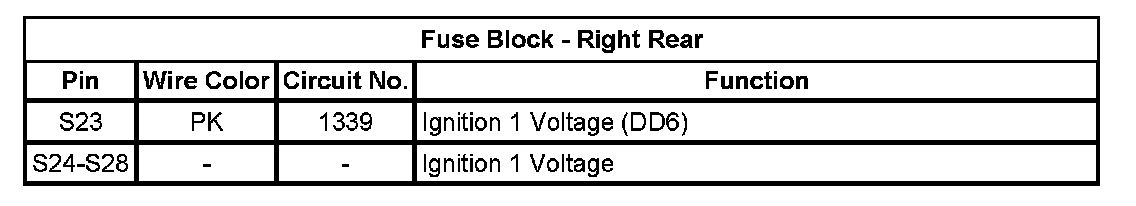

Fuse Block - Right Rear (Pin S23 To S28):
