Window Systems Connector End Views



Window Systems Connector End Views

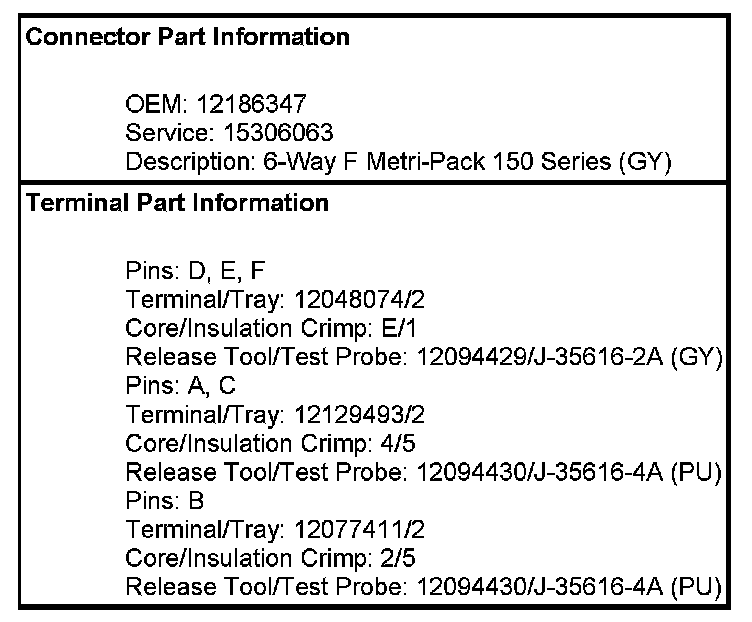

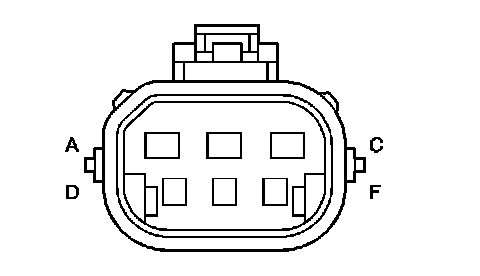

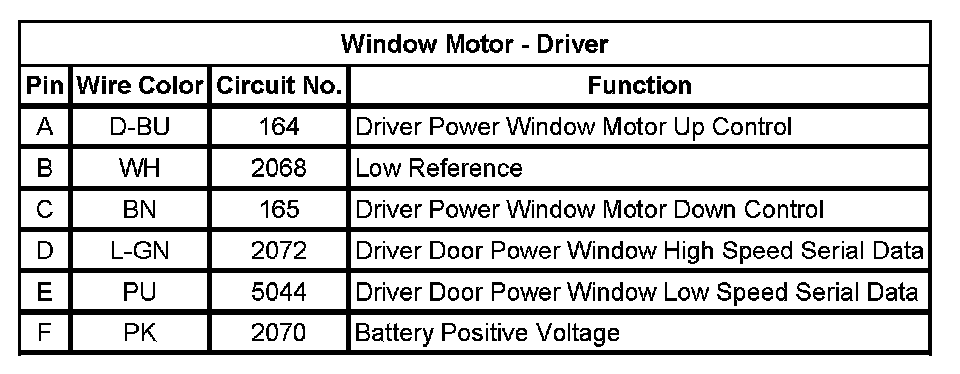

Window Motor - Driver

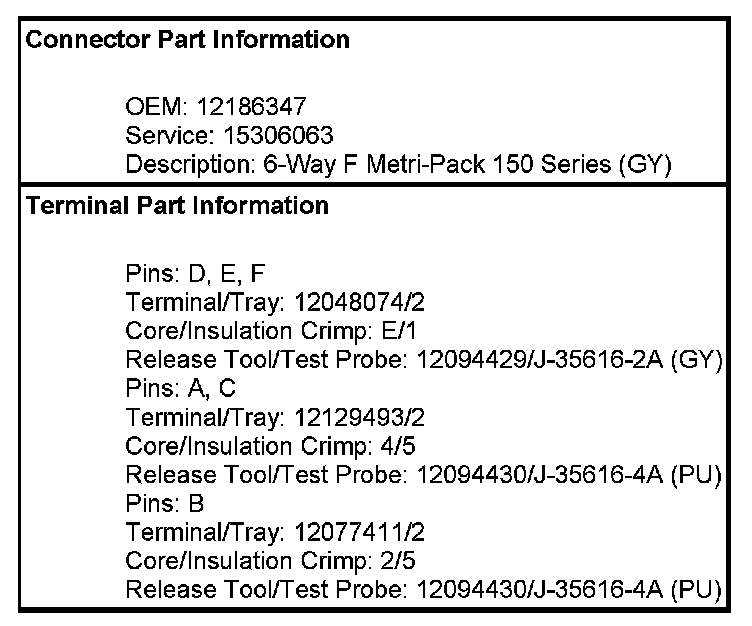

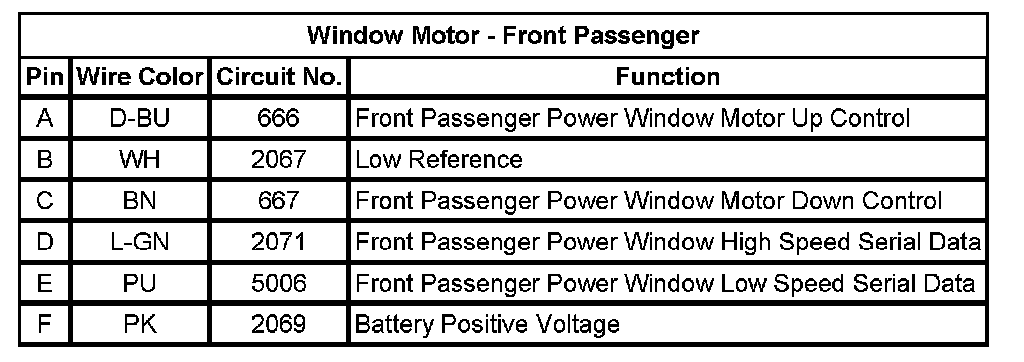

Window Motor - Front Passenger

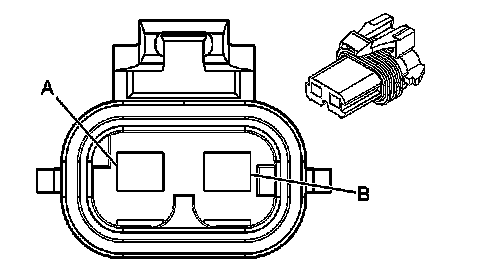

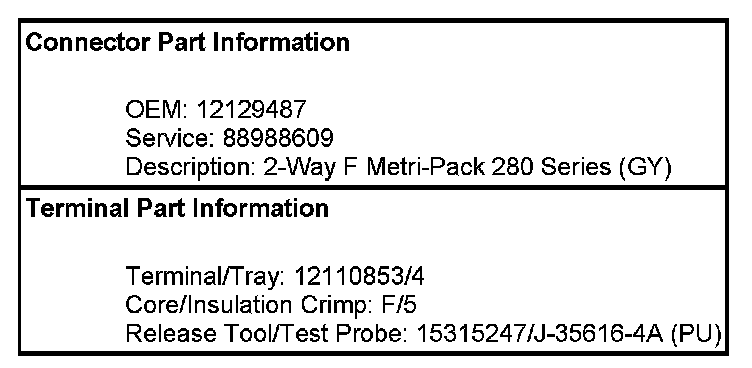

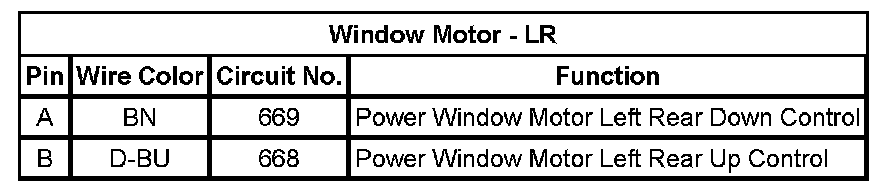

Window Motor - LR














Window Motor - RR
