Steering Mounted Controls Assembly



Secondary/Configurable Connector End Views

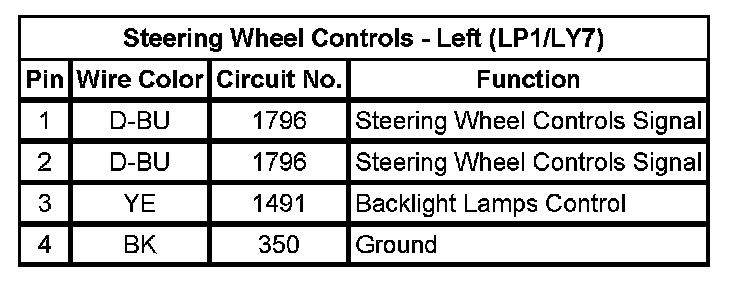

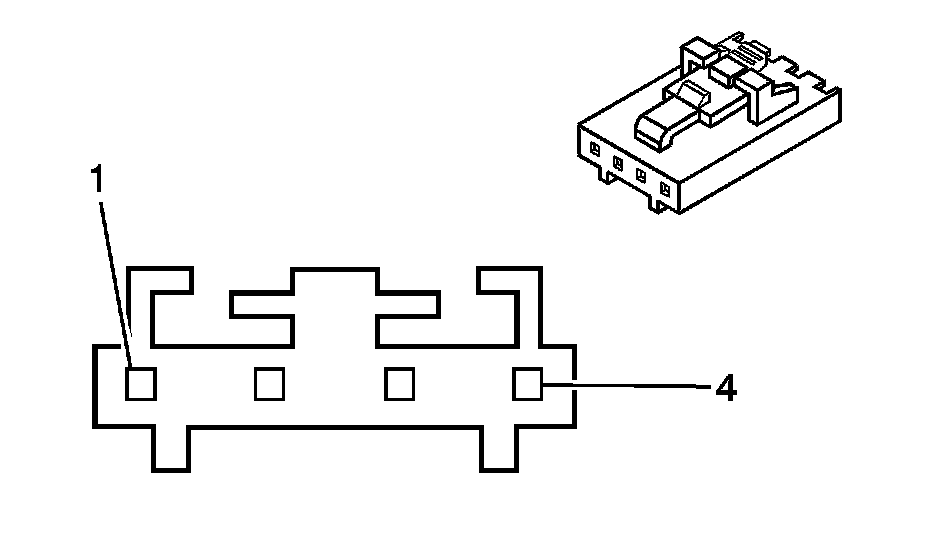

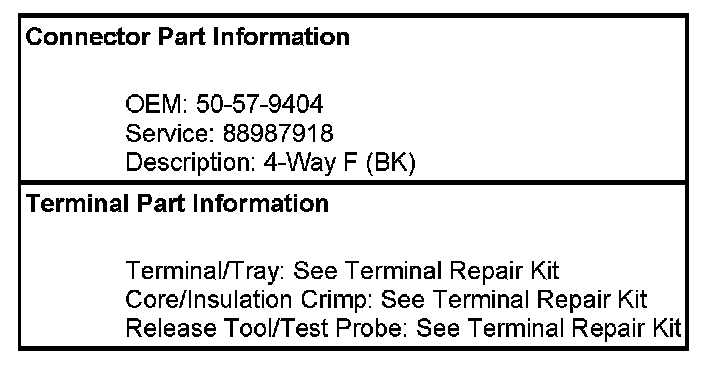

Steering Wheel Controls - Left (LP1/LY7)

Steering Wheel Controls - Right (UK3):

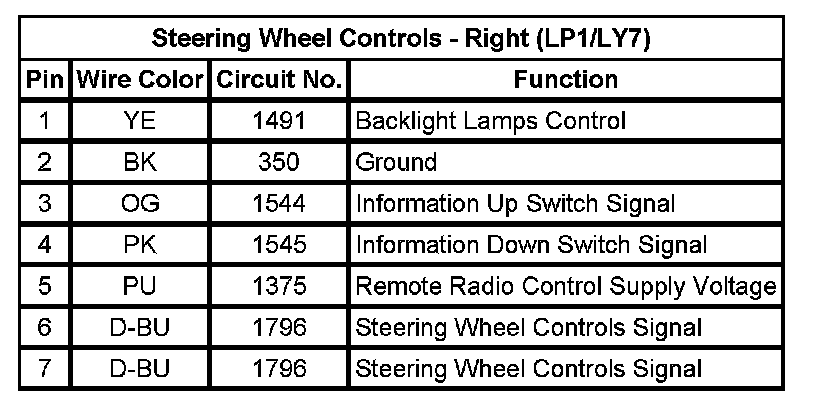

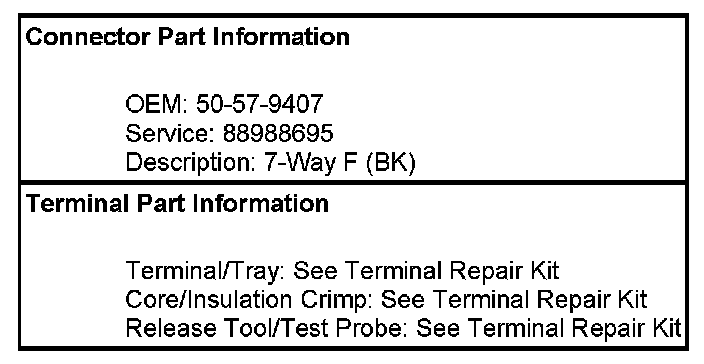

Steering Wheel Controls - Right (LP1/LY7)

Steering Wheel Controls - Left:
