Barometric Pressure Sensor: Service and Repair

Barometric Pressure Sensor Replacement

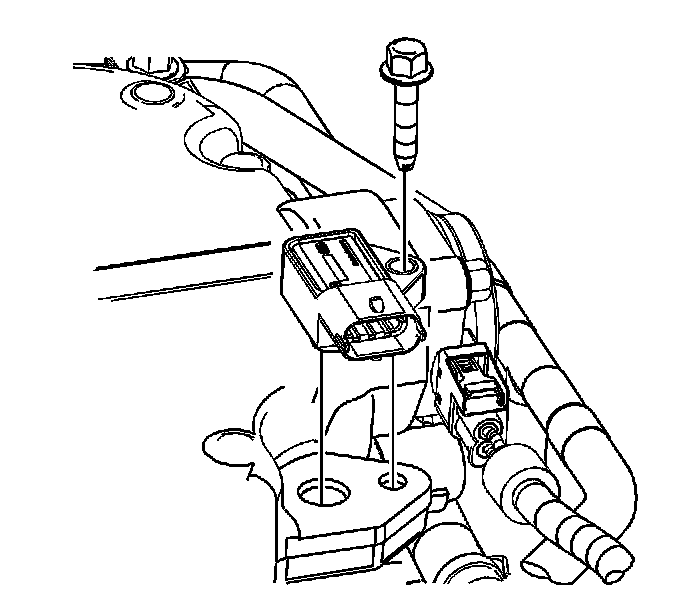

Removal Procedure




1. Turn the ignition OFF.
2. Remove the sensor electrical connector.




3. Remove the barometric pressure sensor bolt.
4. Remove the barometric pressure sensor.

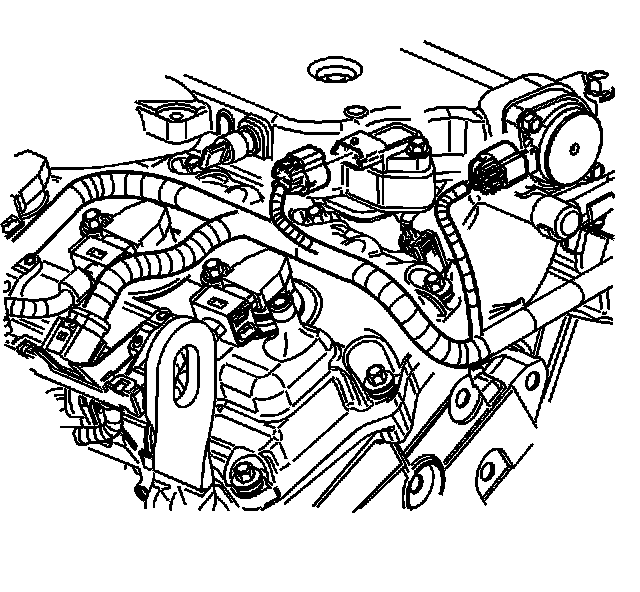

Installation Procedure




1. Install the barometric pressure sensor.

Notice: Refer to Fastener Notice.

2. Install the barometric pressure sensor bolt.

Tighten the barometric pressure sensor bolt to 10 N.m (89 lb in).




3. Install the sensor electrical connector.
