Data Communication Component Views

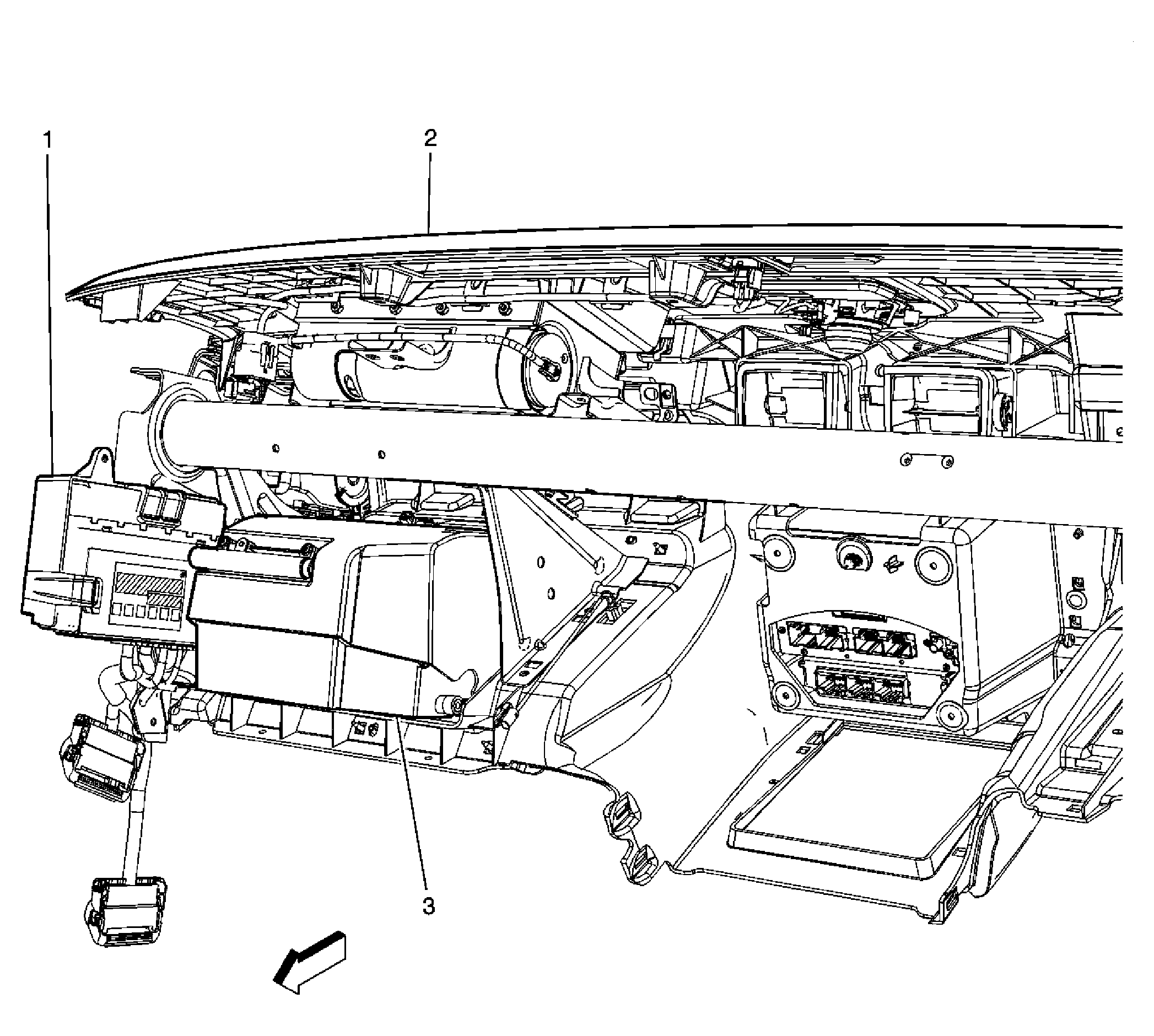

Fig 1: Behind I/P Component Views

GM1657295

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	I/P Trim
3	I/P Compartment Assembly

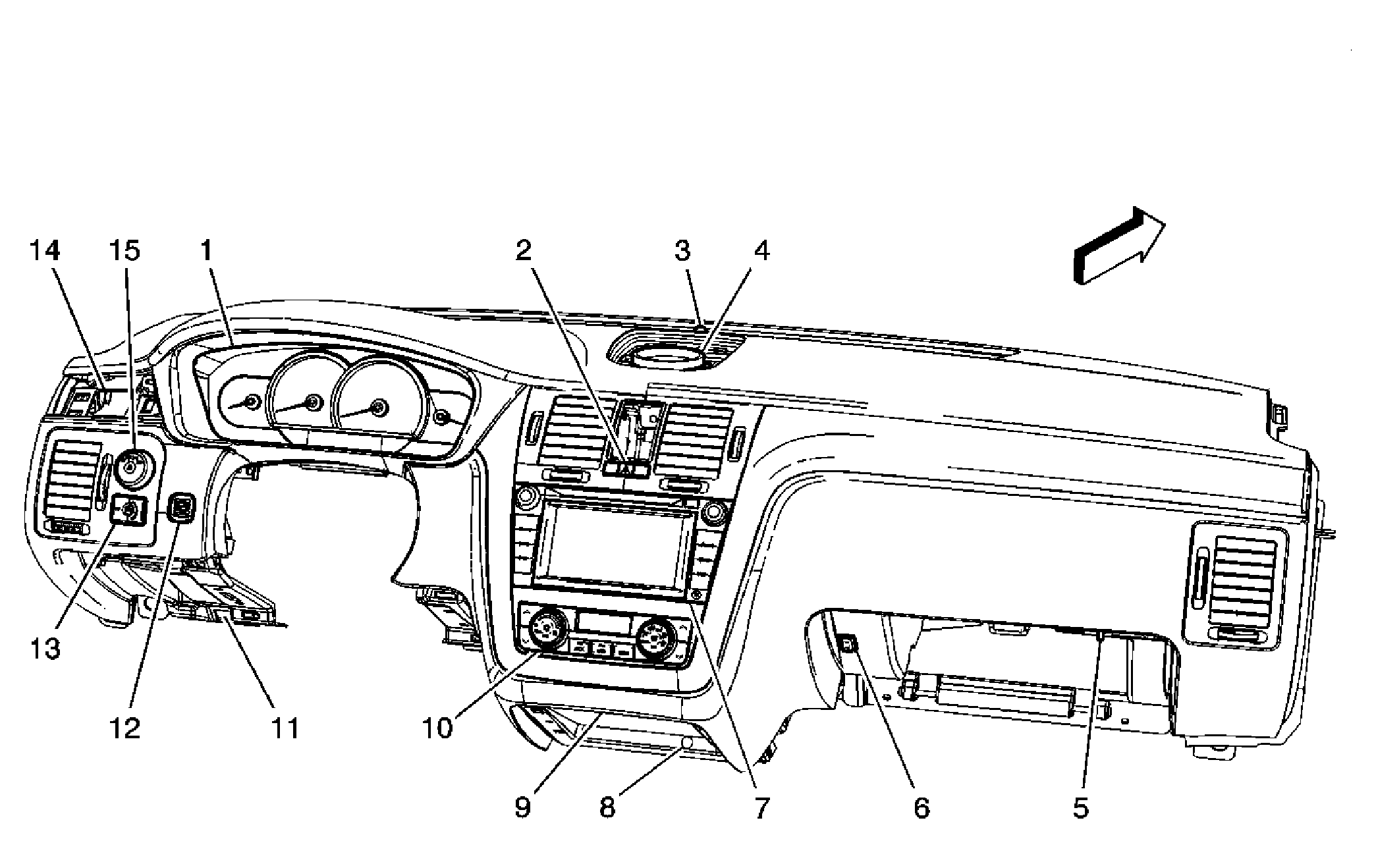

Fig 2: I/P Component Views

GM1657309

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Hazard Switch
3	Sunload Twilight System
4	Speaker - Front Center (U57)
5	I/P Compartment Switch/Lamp
6	Valet Switch
7	Radio/Navigation Unit (U3Q)
8	Auxilary Power Outlet (AV8-DT4), Cigar Lighter (AV8+DT4)
9	Ashtray Lamp
10	HVAC Control Module
11	Data Link Connector (DLC)
12	Air Temperature Sensor - Inside
13	Rear Compartment Lid Release Switch
14	Driver Information Center (DIC) Switch
15	Headlamp Switch
