Window Systems Component Views

Fig 1: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Heated and Cooled Seat Switch - Driver (KB6)
4	Memory/Personalization Function Switch (A45)
5	Mirror Switch
6	Speaker - LF Door
7	Window Switch - Driver Door
8	Window Motor - Driver
9	Courtesy Lamp - Left Front Door
10	Door Lock Switch Assembly
11	Door Latch Assembly - Driver
12	Door Lock Key Cylinder Switch - Driver

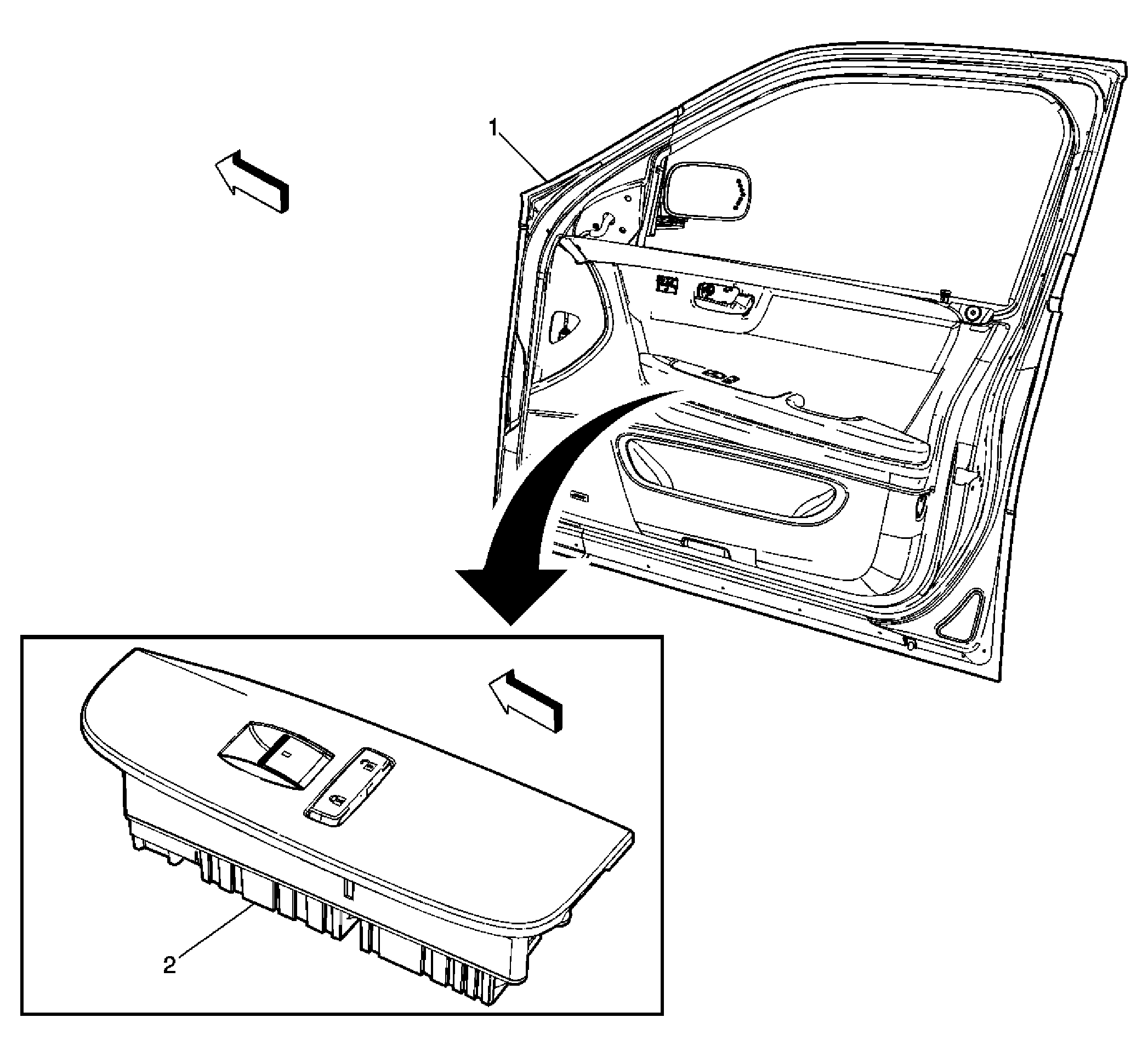

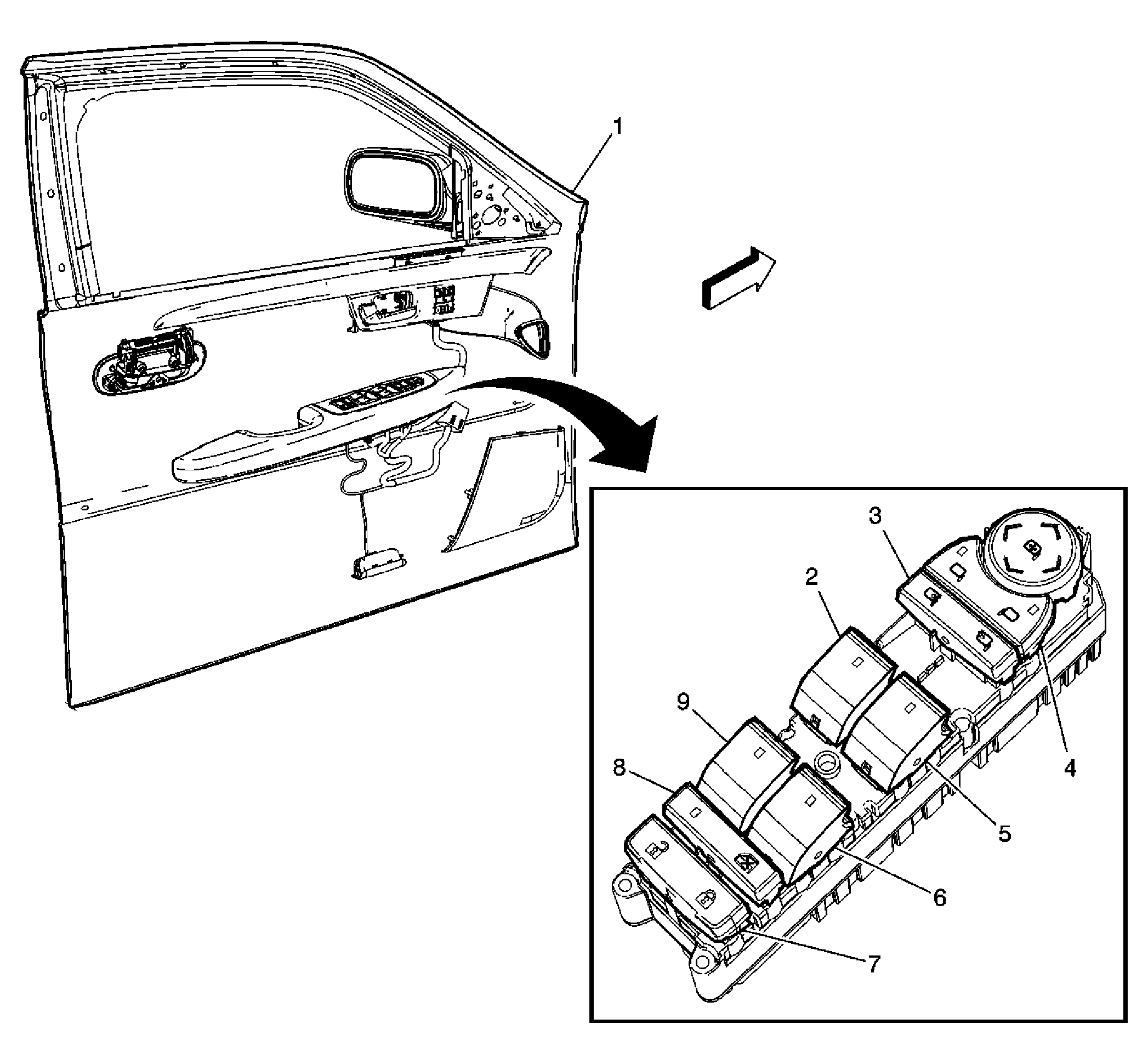

Fig 2: Driver Door Module - Window/Lock Switch Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Driver Door Module (DDM)-Window/Lock Switch

Fig 3: Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Front Passenger
4	Courtesy Lamp - Right Front Door
5	Window Motor - Front Passenger
6	Speaker - RF Door
7	Power Lock Switch - Front Passenger
8	Window Switch - Front Passenger
9	Heated Cooled Seat Switch (KB6) - Front Passenger

Fig 4: Passenger Door Module - Window/Lock Switch Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Passenger Door Module (PDM)-Window/Lock Switch

Fig 5: LR Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Heated Seat Switch - LR
3	Seat Lumbar Switch - LR (ARC)
4	Window Motor - LR
5	Speaker - LR Door
6	Courtesy Lamp - Left Rear Door
7	Window Switch - Left Rear
8	Door Latch Assembly - Left Rear

Fig 6: RR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - Right Rear
3	Courtesy Lamp - Right Rear Door
4	Speaker - RR Door
5	Window Motor - RR
6	Window Switch - Right Rear
7	Seat Lumbar Switch - RR (ARC)
8	Heated Seat Switch - RR

Fig 7: Rear of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger
2	RFA Rear Glass Antenna
3	Radio Rear Glass Antenna
4	Center High Mounted Stop Lamp (CHMSL)
5	Tail Lamp - Right
6	Object Alarm Sensor - RR Outer
7	Object Alarm Sensor - RR Middle
8	License Lamp
9	Object Alarm Sensor - LR Middle
10	Object Alarm Sensor - LR Outer
11	Tail Lamp - Left
12	Remote Control Door Lock Receiver (RCDLR)

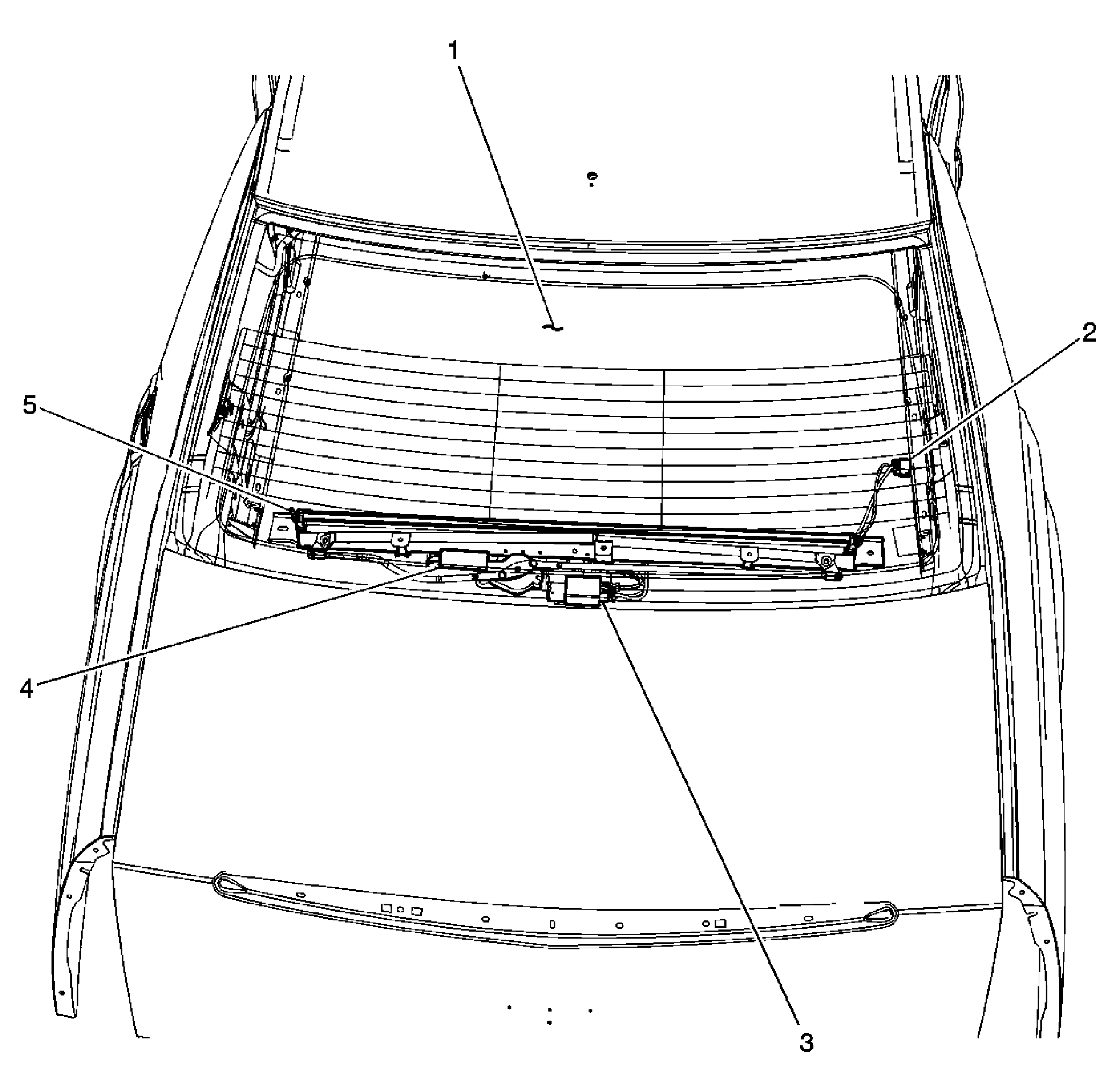

Fig 8: Center of Rear Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window
2	C395
3	Rear Window Sunshade Module (DE9)
4	Rear Window Sunshade Actuator (DE9)
5	Rear Window Sunshade (DE9)
