Engine Electrical Component Views

Fig 1: Top of Engine (L37/LD8) Component Views
GM1657280Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter
2 Manifold Absolute Pressure (MAP) Sensor
3 Throttle Body Assembly
4 Fuel Injector 8
5 Ignition Coil/Module 8
6 Fuel Injector 6
7 Ignition Coil/Module 6
8 Knock Sensor (KS) 2
9 Fuel Injector 4
10 Ignition Coil/Module 4
11 Ignition Coil/Module 2
12 Fuel Injector 2
13 Crankshaft Position (CKP) Sensor
14 Knock Sensor (KS) 1
15 Camshaft Position (CMP) Sensor
16 Ignition Coil/Module 1
17 Ignition Coil/Module 3
18 Fuel Injector 1
19 Ignition Coil/Module 5
20 Fuel Injector 3
21 Ignition Coil/Module 7
22 Fuel Injector 5
23 Fuel Injector 7

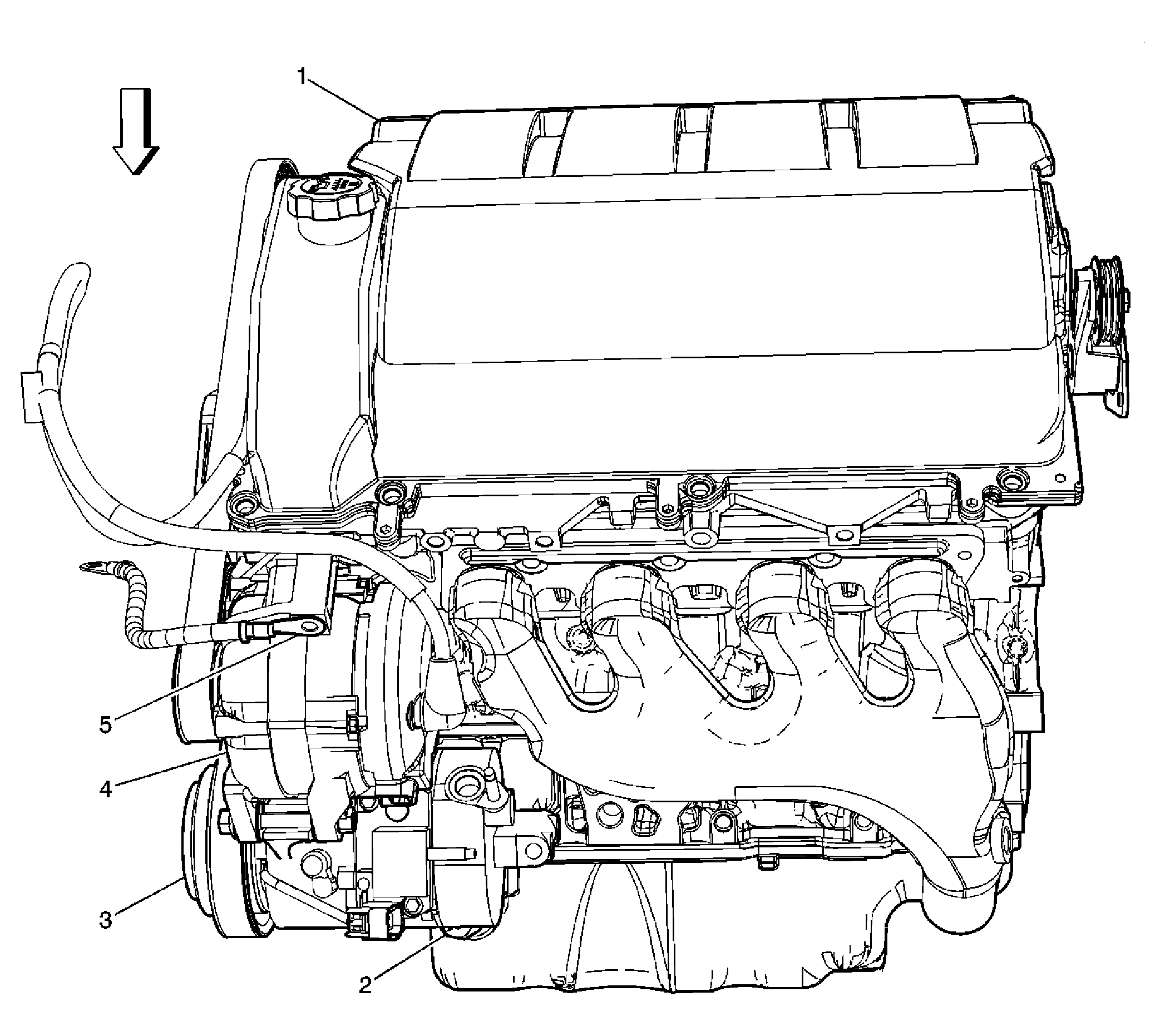

Fig 2: Left Side of Engine (4.6L) Component Views
GM1697753Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine - 4.6L
2 Engine Oil Level Switch (06)
3 A/C Compressor
4 Generator
5 G110

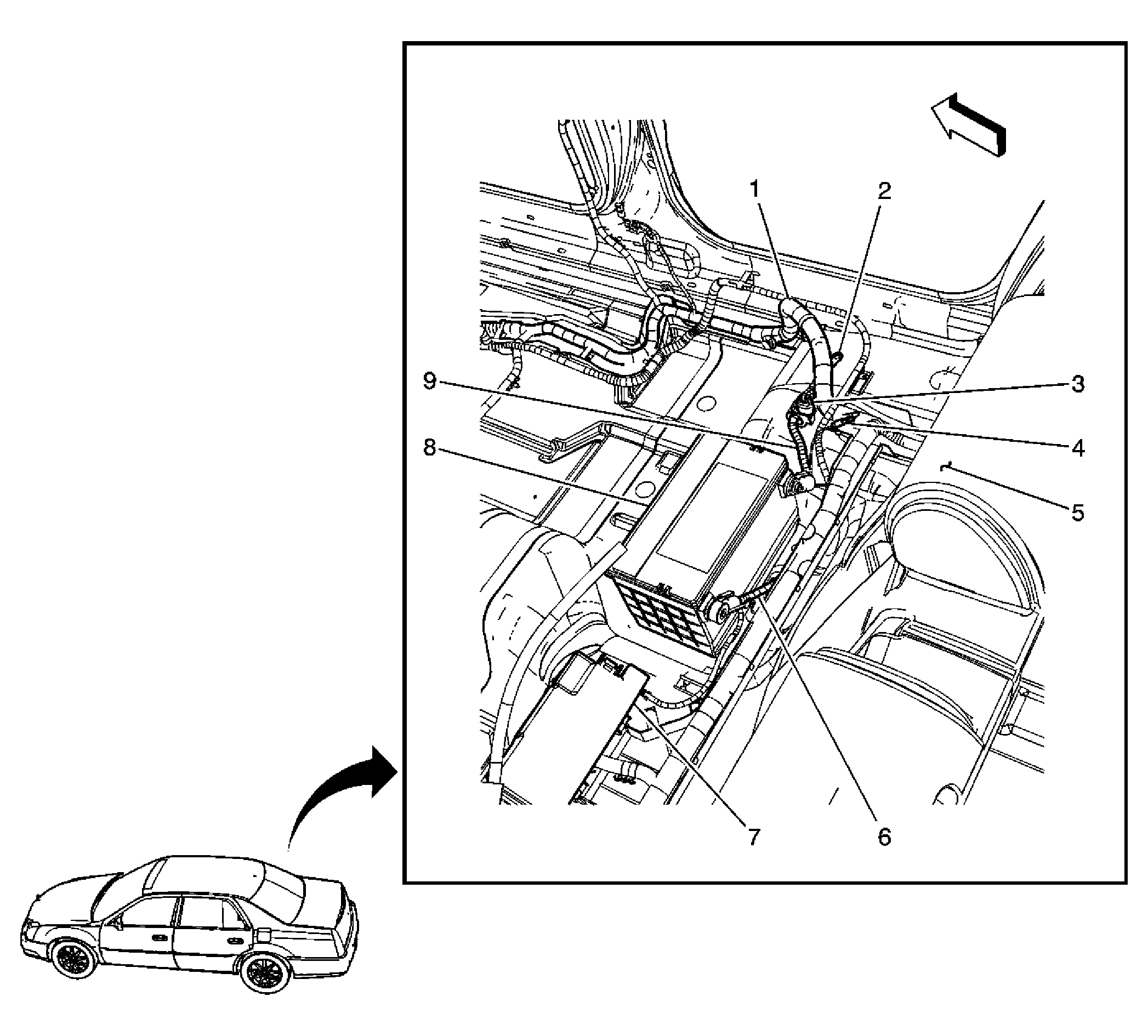

Fig 3: Under Passenger Seat - RR Component Views
GM1656936Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 G303
3 Battery Current Sensor
4 C124 Negative Battery Cable to Body Harness
5 Rear Seat Back Cushion
6 Battery Positive Cable
7 Fuse Block - Rear
8 Battery
9 Negative Battery Cable
