Inflatable Restraint I/P Module Indicator Connector End View

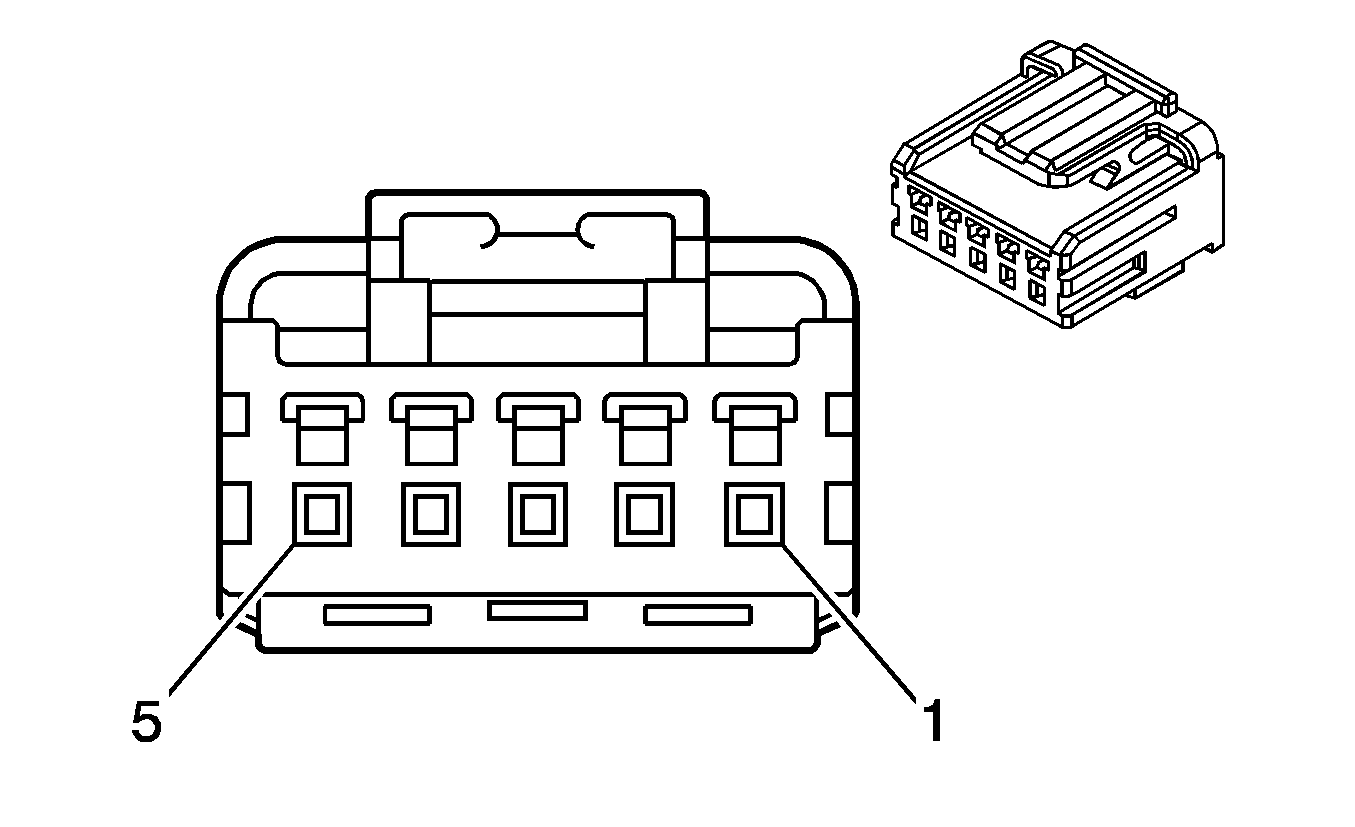

Fig 1: Inflatable Restraint I/P Module Indicator Connector End View
G00455586Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint I/P Module Indicator Connector & Terminal Parts Information

Connector Part Information
  • OEM: HCMPB-05-S
  • Service: See Catalog
  • Description: 5-Way F HCM 5P Female Housing Assembly (WH)
Terminal Part Information
  • Terminal/Tray: SHCM-A03T-P025/20
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
Inflatable Restraint I/P Module Indicator Connector End View

Pin Wire Color Circuit No. Function
1 D-BU 2307 Passenger Air Bag On Indicator Control
2 BK 850 Ground
3 PK/TN 2308 Passenger Air Bag Off Indicator Control
4 PK/RD 239 Battery Positive Voltage
5 PU 5234 Passenger Seat Belt Indicator
