Antilock Brake System Component Views

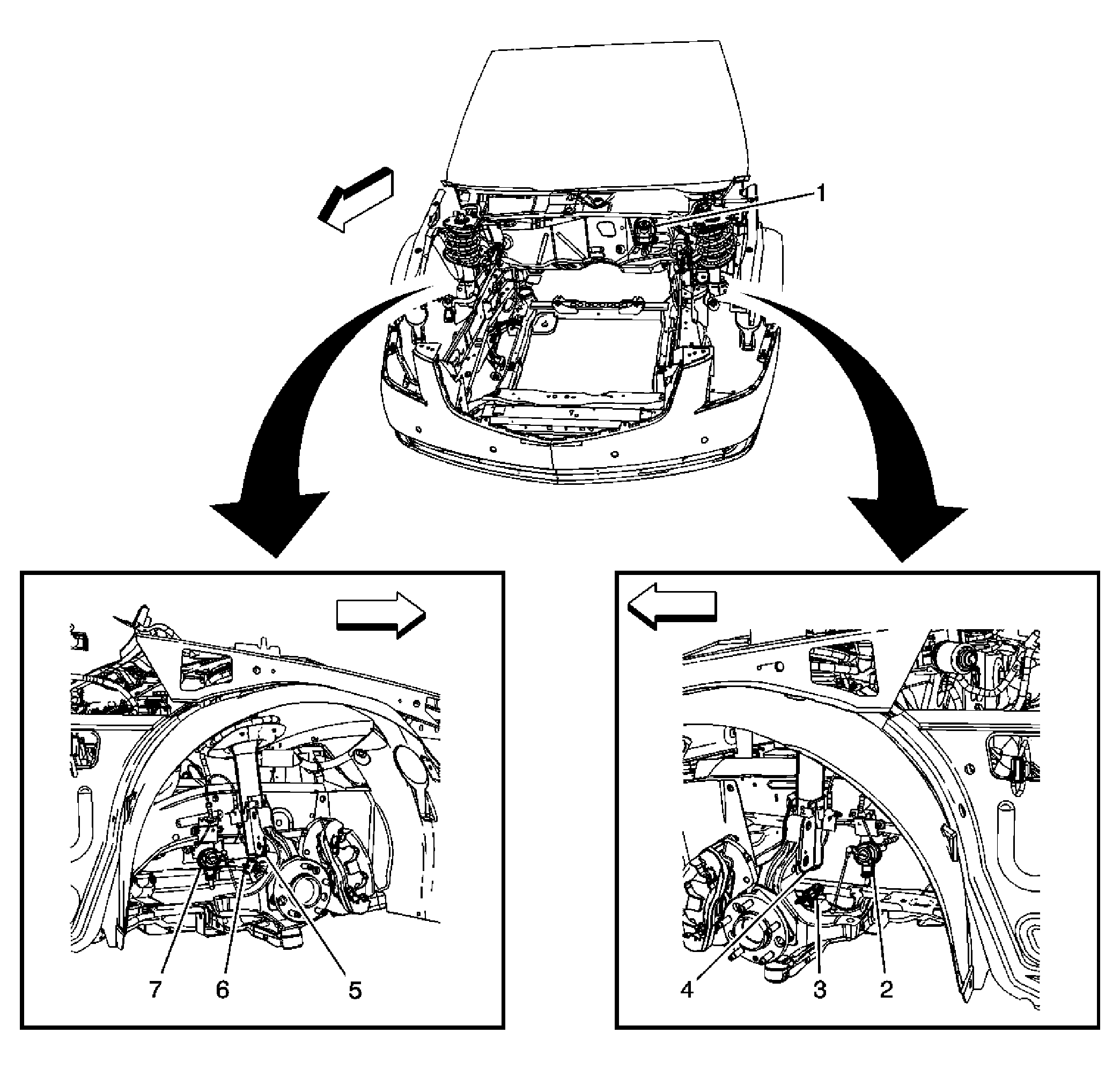

Fig 1: Front Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Switch
2	Suspension Position Sensor - LF
3	Wheel Speed Sensors (WSS) - LF
4	Suspension Damper - LF
5	Suspension Damper - RF
6	Wheel Speed Sensors (WSS) - RF
7	Suspension Position Sensor - RF

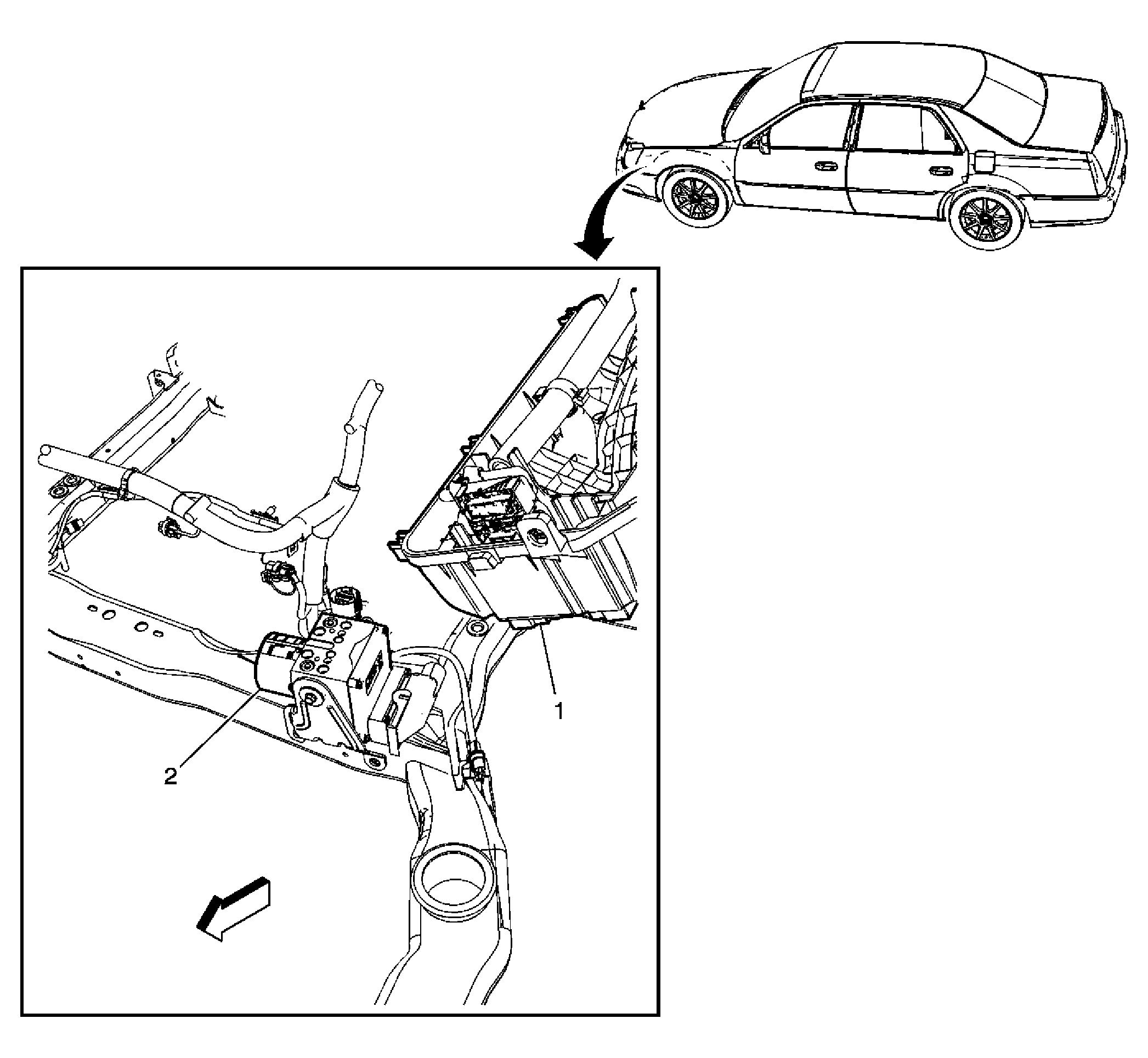

Fig 2: Lower Left Front of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Air Cleaner Box
2	Electronic Brake Control Module (EBCM)

Fig 3: Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Traction Control Switch (AV8)
3	Column Shifter Shift Lock Control Solenoid (AV8)
4	Ignition Key Alarm Switch
5	Theft Deterrent Module (TDM)
6	Ignition Switch
7	Inflatable Restraint Steering Wheel Module Coil
8	Steering Angle Sensor (JL4)
9	Telescoping Actuator (N37)
10	Tilt Actuator (N37)
11	Tilt/Telescope Switch (N37)

Fig 4: Under Front Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Reverse Lockout Solenoid C1 (AQ9)
3	Reverse Lockout Solenoid
4	Reverse Lockout Solenoid C2 (AQ9)
5	PRNDL Lamp
6	HVAC Control Module - Auxiliary (CJ4)
7	Auxiliary Power Outlet - Console (AQ9)
8	Traction Control Switch
9	Cigar Lighter

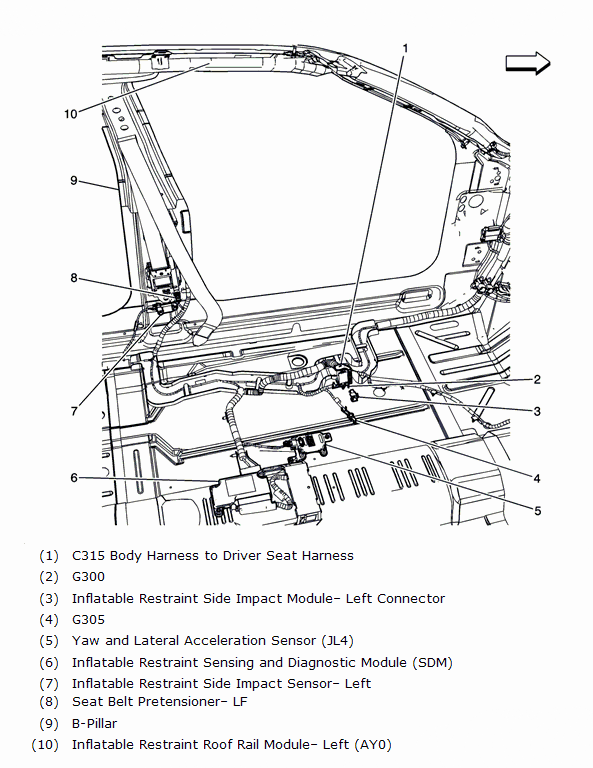

Fig 5: Driver Seat Area Component Views (Body Harness)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C315 Body Harness to Driver Seat Harness
2	G300
3	Inflatable Restraint Side Impact Module - Left Connector
4	G305
5	Yaw and Lateral Acceleration Sensor (JL4)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Inflatable Restraint Side Impact Sensor - Left
8	Seat Belt Pretensioner - LF
9	B-Pillar
10	Inflatable Restraint Roof Rail Module - Left (AY0)

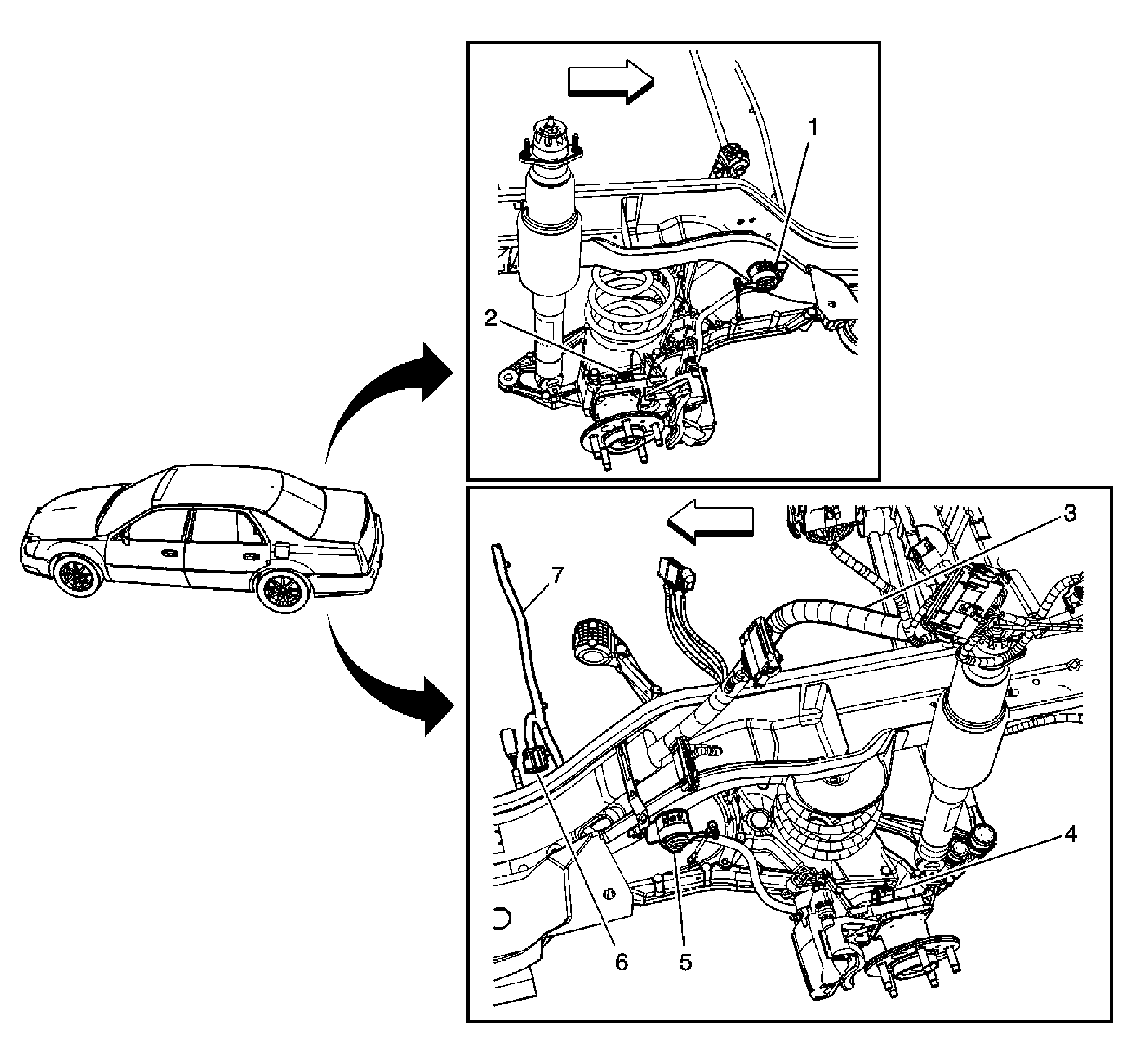

Fig 6: Rear Axle Area Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - RR (F55)
2	Wheel Speed Sensor - RR
3	Body Harness
4	Wheel Speed Sensor - LR
5	Suspension Position Sensor - LR (F55), Automatic Level Control Module (FE1, FE3, F41)
6	C308 Rear Wheel Speed Harness to Chassis Harness
7	Rear Wheel Speed Harness
