Installation Procedure

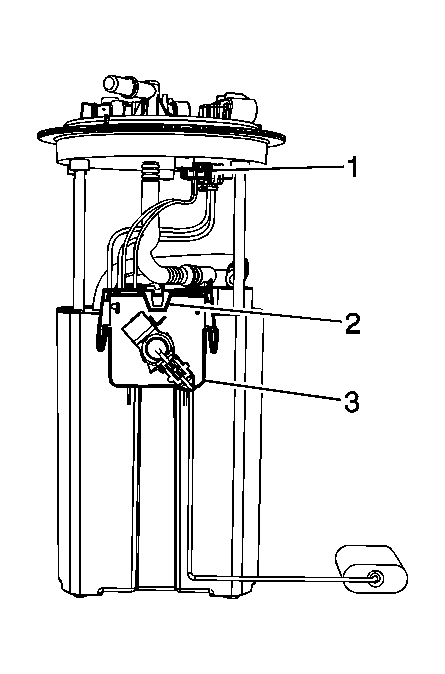

    Fig 1: View Of Fuel Pump Module
    GM1671973Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel level sensor (3) up onto the bucket, gently lift up on the locking tab (2) and continue sliding the sensor up until it engages the tab.
  2. Connect the fuel level sensor electrical connector (1) under the module cover. Push up the connector until the clip engages.
  3. Install the fuel pump module. Refer to Fuel Sender Assembly Replacement .
