Central Control Module



Entertainment/Communication Connector End Views

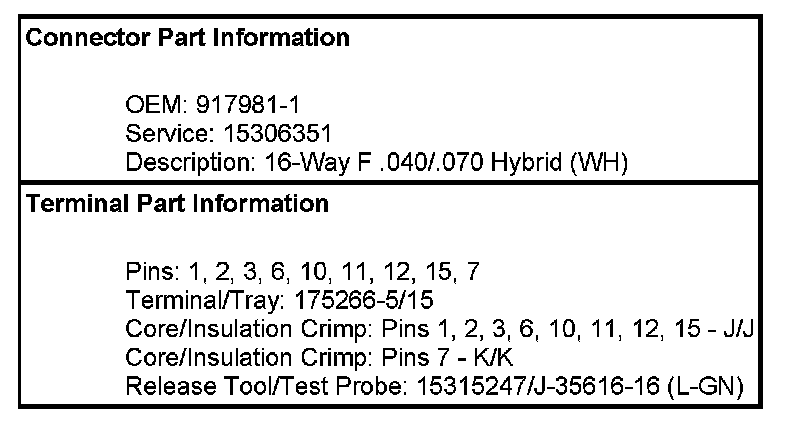

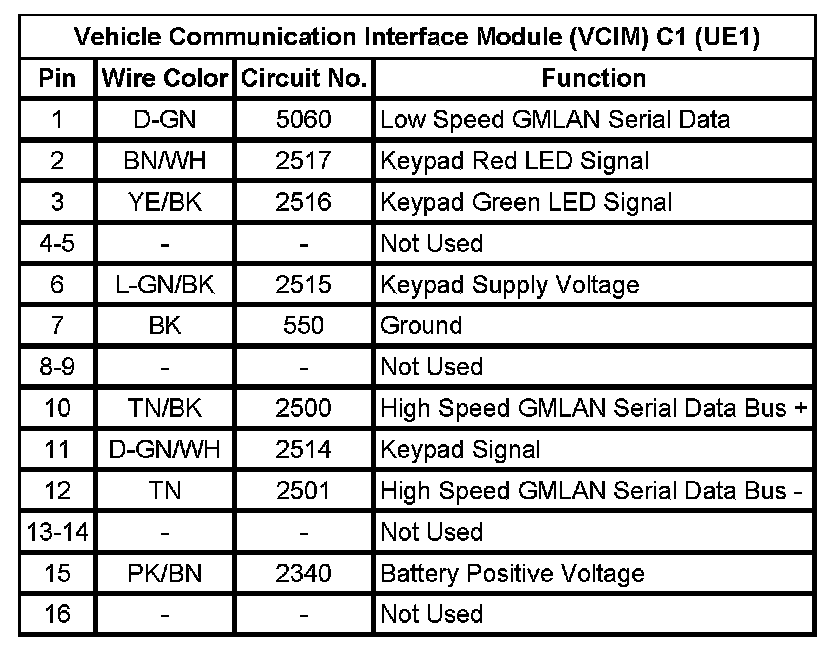

Vehicle Communication Interface Module (VCIM) C1 (UE1)

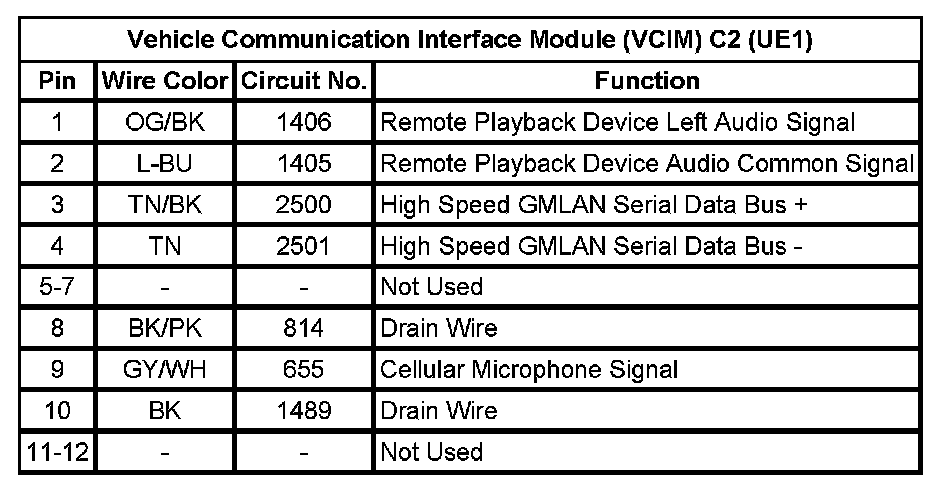

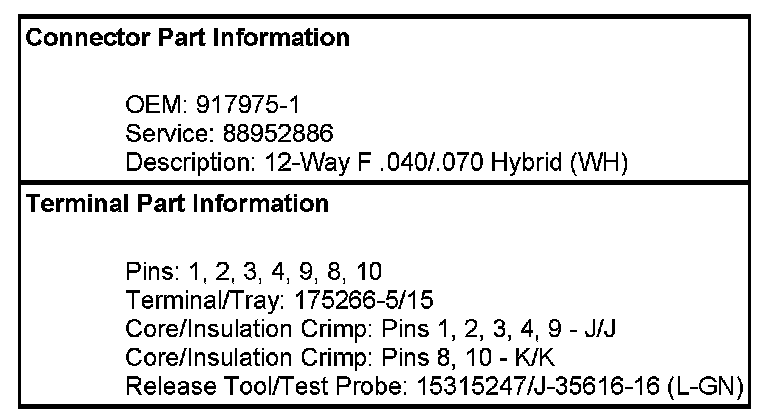

Vehicle Communication Interface Module (VCIM) C2 (UE1)

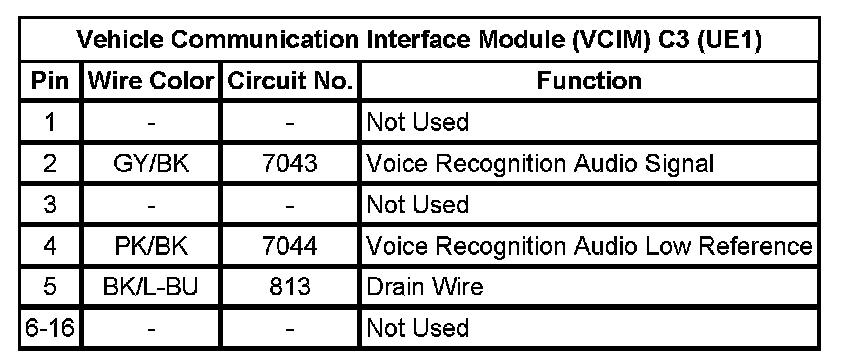

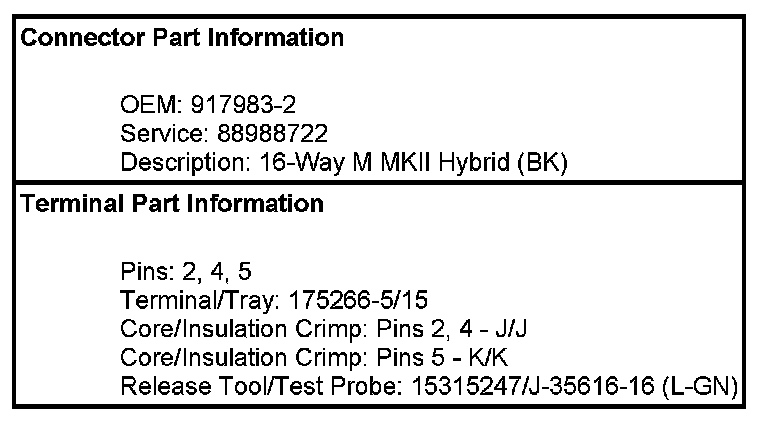

Vehicle Communication Interface Module (VCIM) C3 (UE1)
