Cruise Control Module

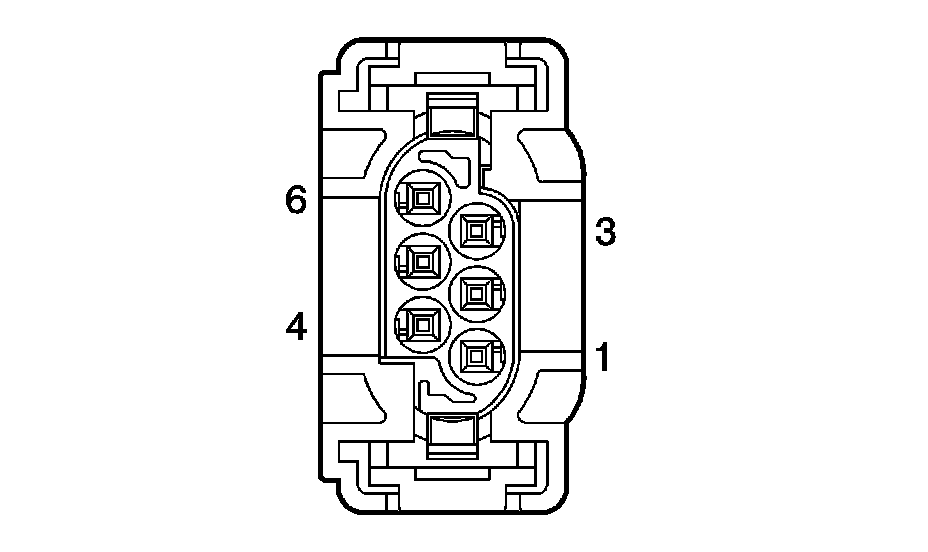

Cruise Control Connector End Views

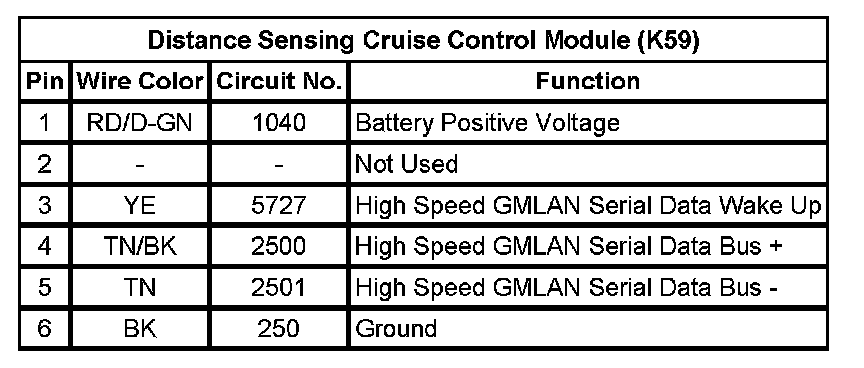

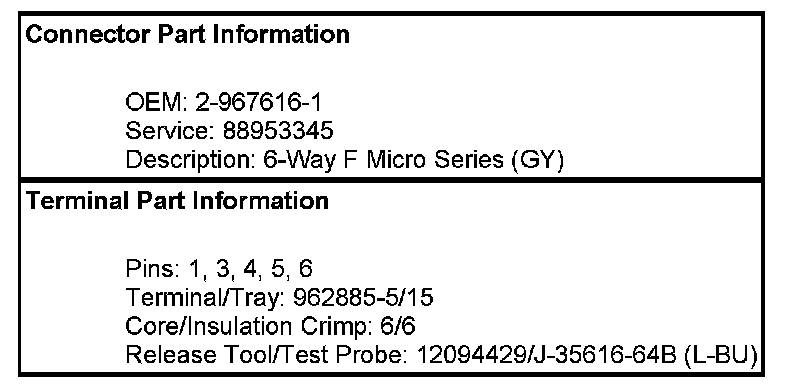

Distance Sensing Cruise Control Module (K59)
