Steering Mounted Controls Assembly



Secondary/Configurable Control Connector End Views

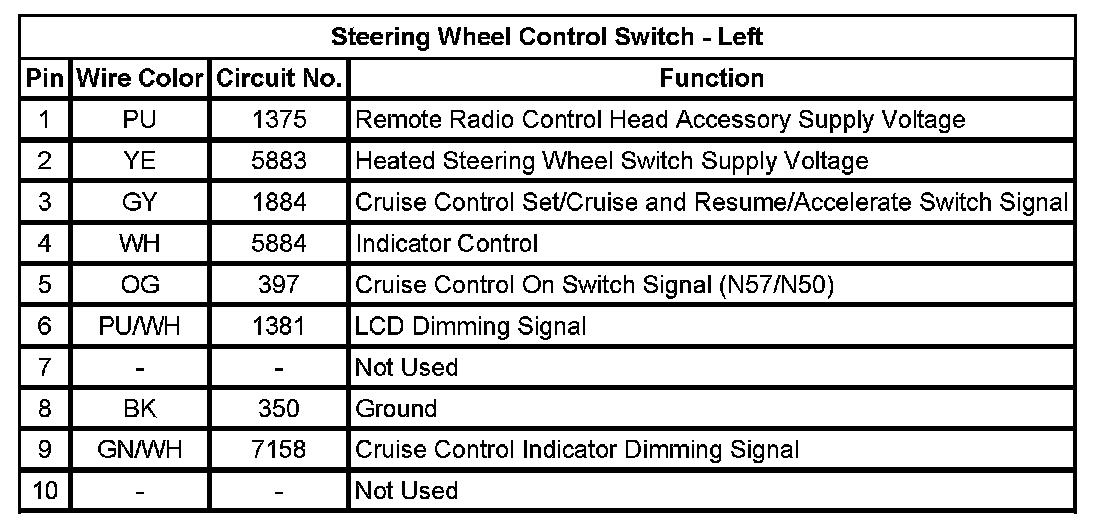

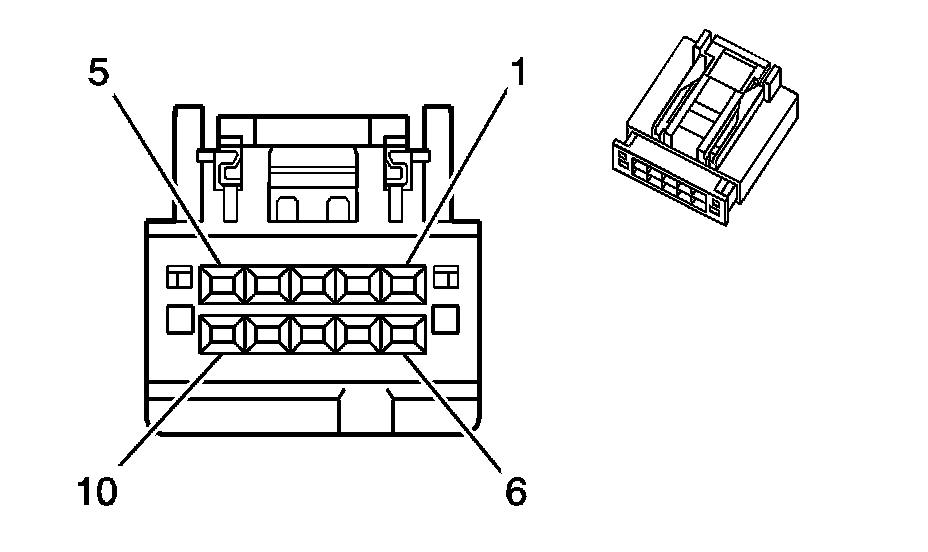

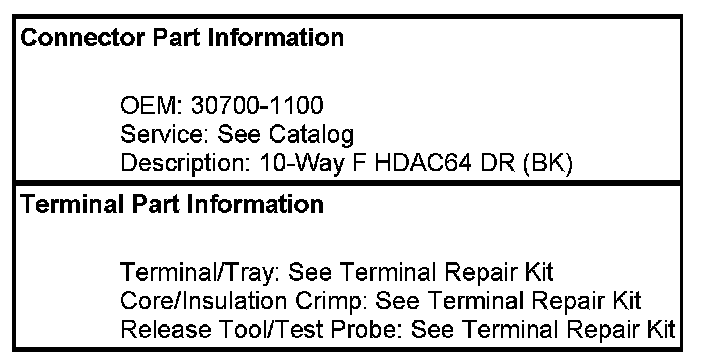

Steering Wheel Control Switch - Left

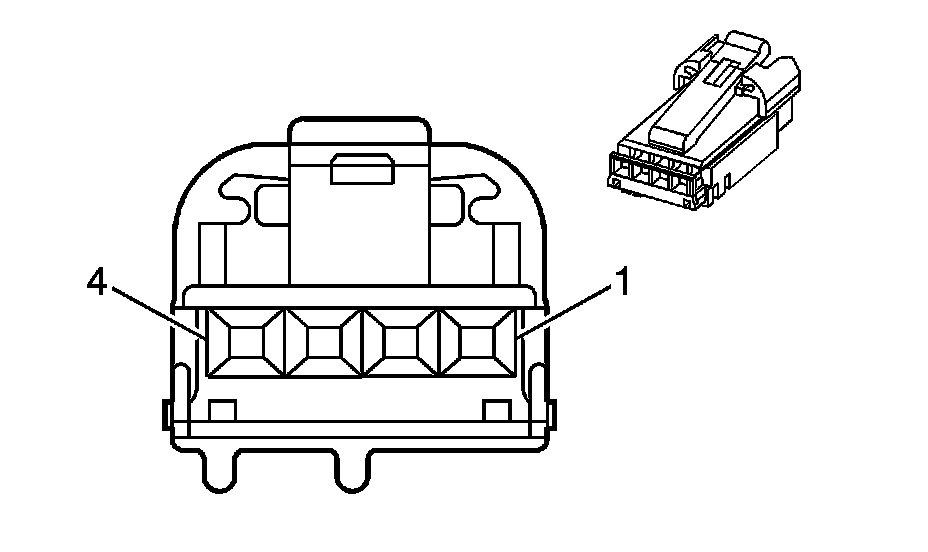

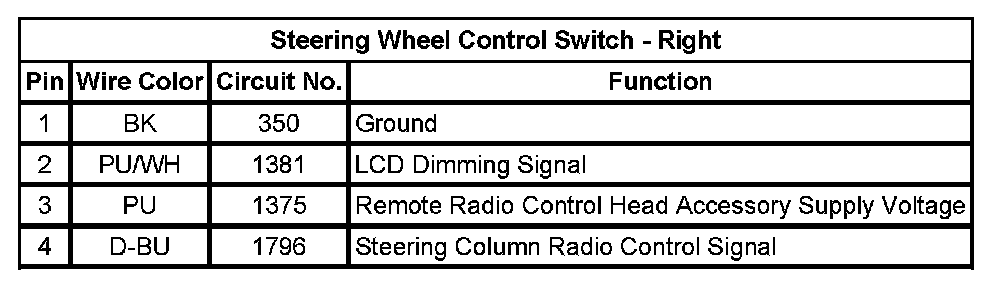

Steering Wheel Control Switch - Right
