HVAC Module Views



Harness Routing Views

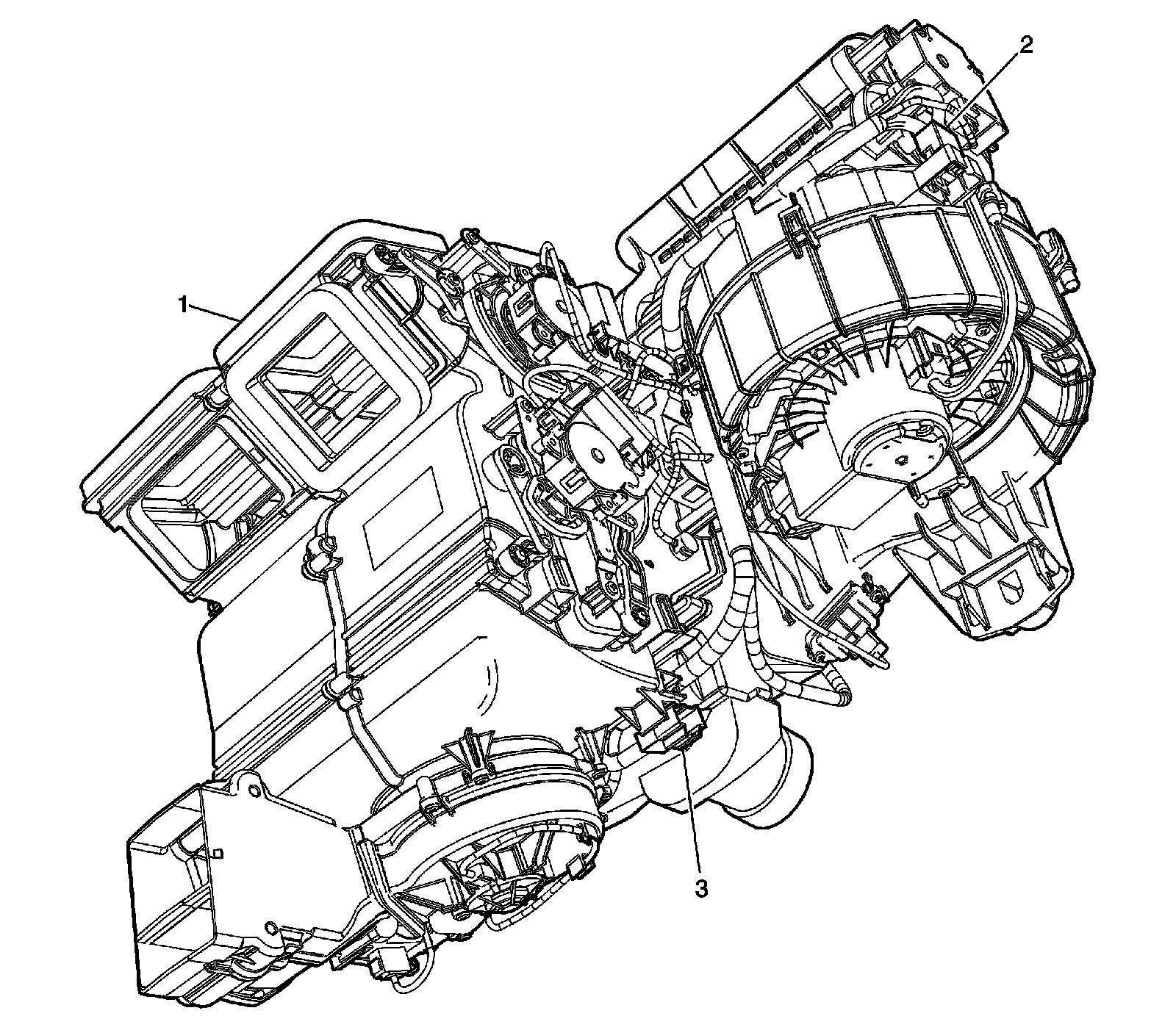

HVAC Module Harness




1 - HVAC Module Assembly
2 - C206
3 - C202
