HVAC Control Assembly Replacement - Auxiliary



HVAC Control Assembly Replacement - Auxiliary

Removal Procedure

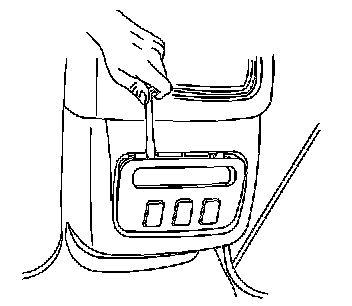

1. Using a flat-bladed tool, carefully pry out on the top of the HVAC control - auxiliary.

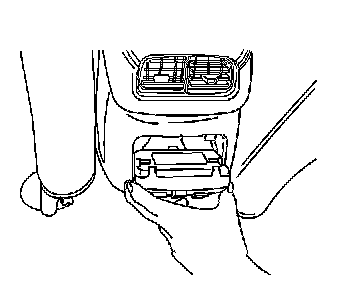

2. Remove the HVAC control - auxiliary from the center console.

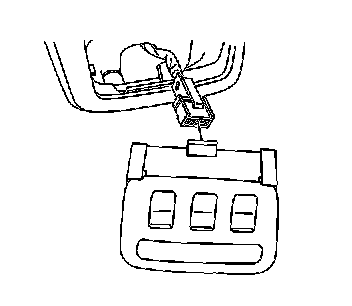

3. Disconnect the electrical connector.
4. Remove the HVAC control - auxiliary.

Installation Procedure




1. Connect the HVAC control - auxiliary electrical connector.




2. Install the HVAC control - auxiliary in the console bottom first.
3. Push in at the top of the HVAC control - auxiliary in order to engage the HVAC control - auxiliary in the console.
4. Refer to Control Module References for replacement and setup information.
