Battery Views



Harness Routing Views

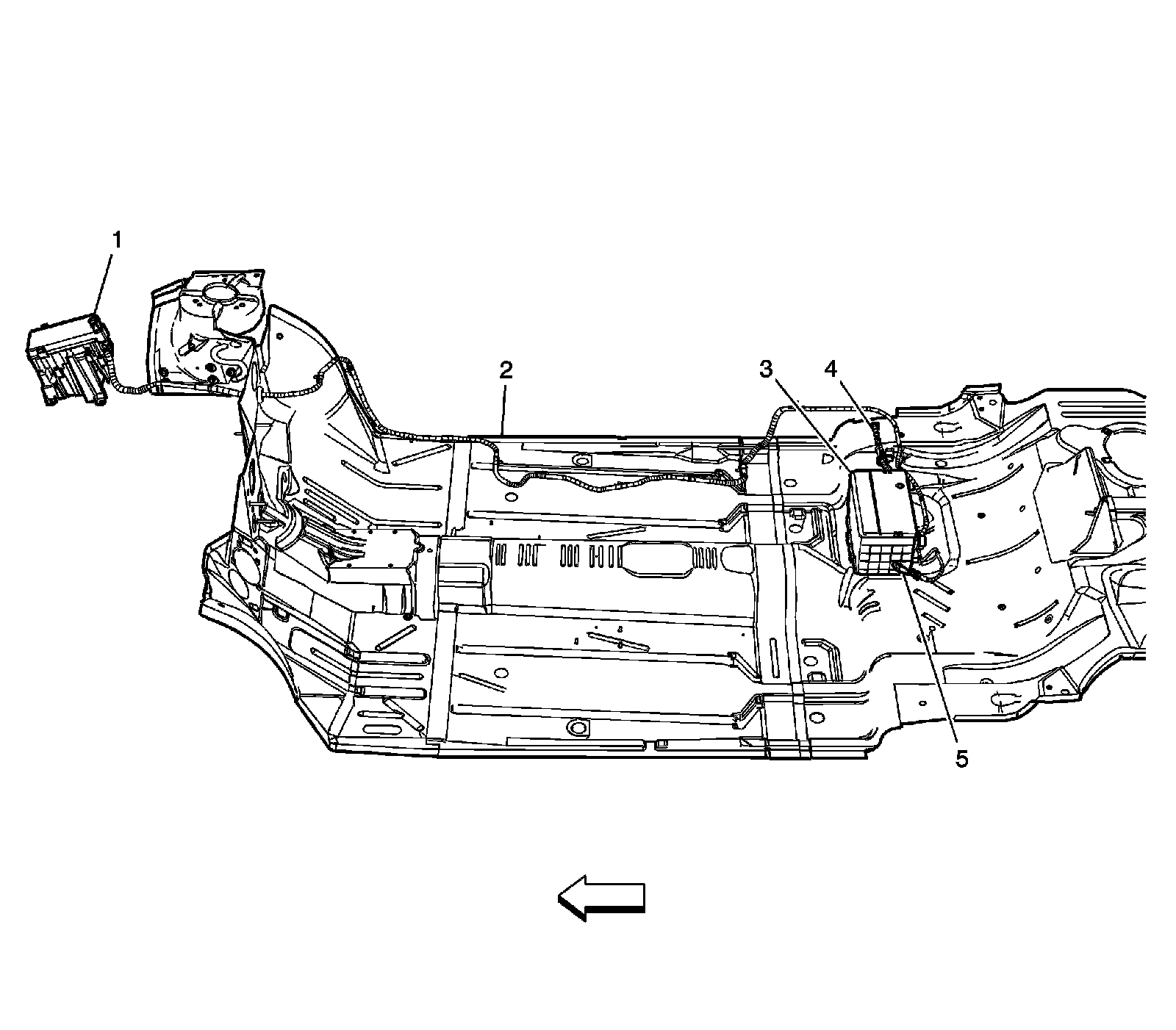

Battery Cable Harness




1 - Fuse Block - Underhood
2 - Floor Panel
3 - Battery
4 - G303
5 - Fuse Block - Rear Terminal Connector
