Fuse Block: Service and Repair

Underhood Electrical Center or Junction Block Replacement

Removal Procedure

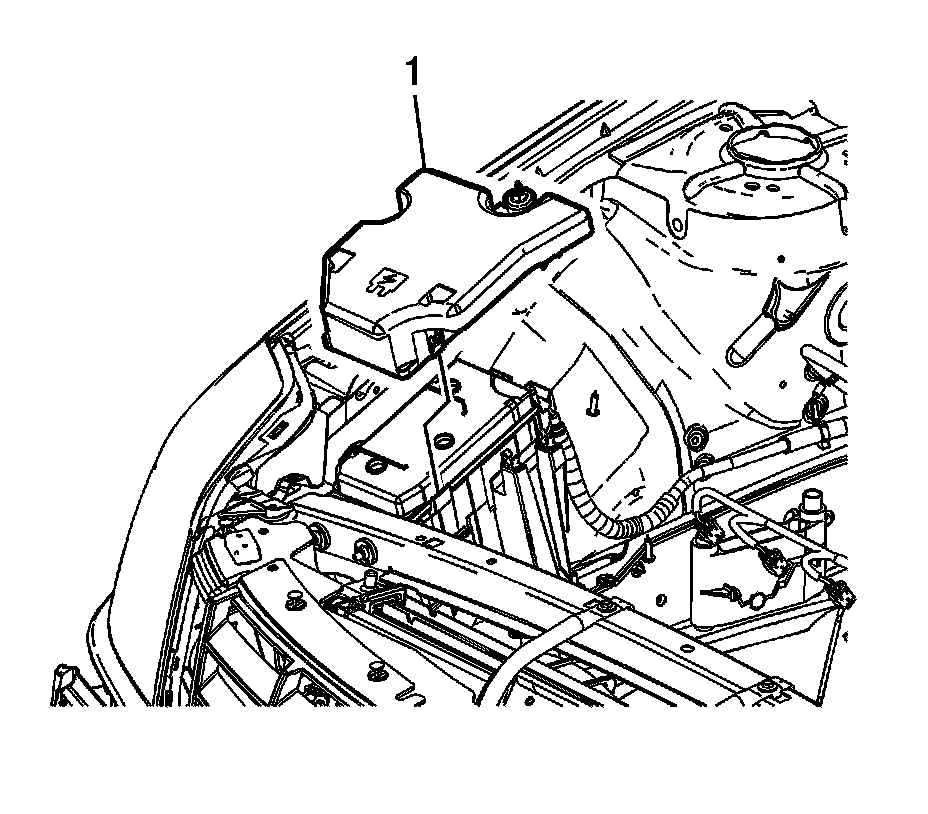

1. Remove the electrical center cover (1).




2. Disconnect the positive battery cable from junction box.

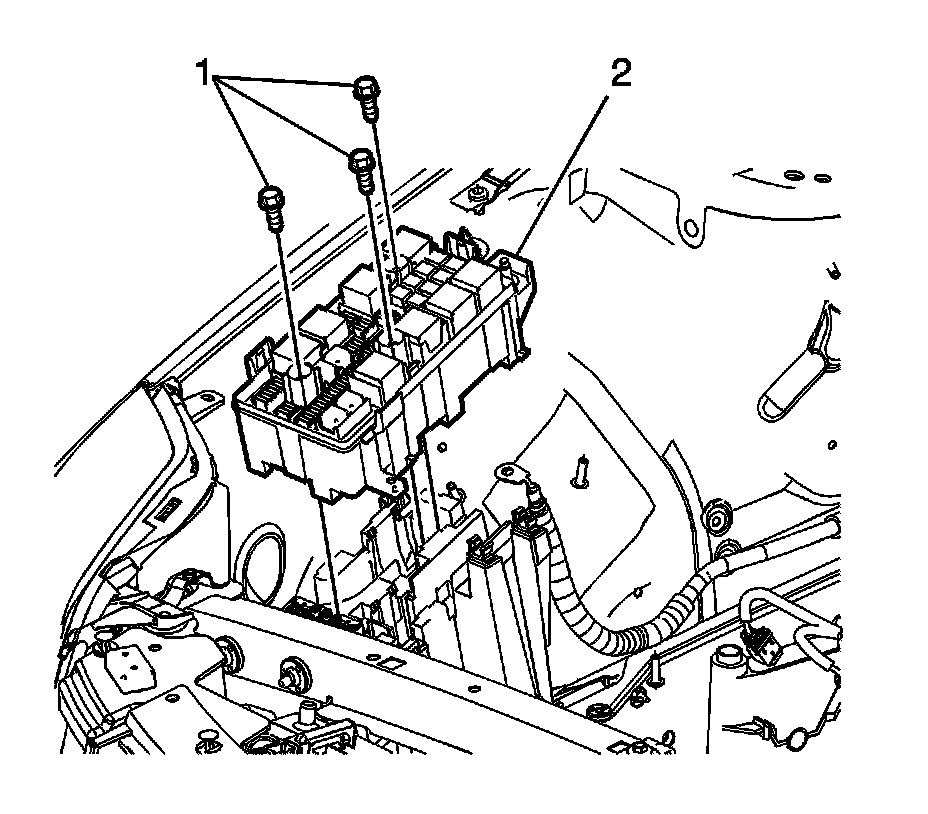

3. Remove the fasteners (1) securing the electrical center board (2).
4. Unlock the tabs on the electrical center board.
5. Lift up on the electrical center board.




6. Disconnect the electrical connector (1).

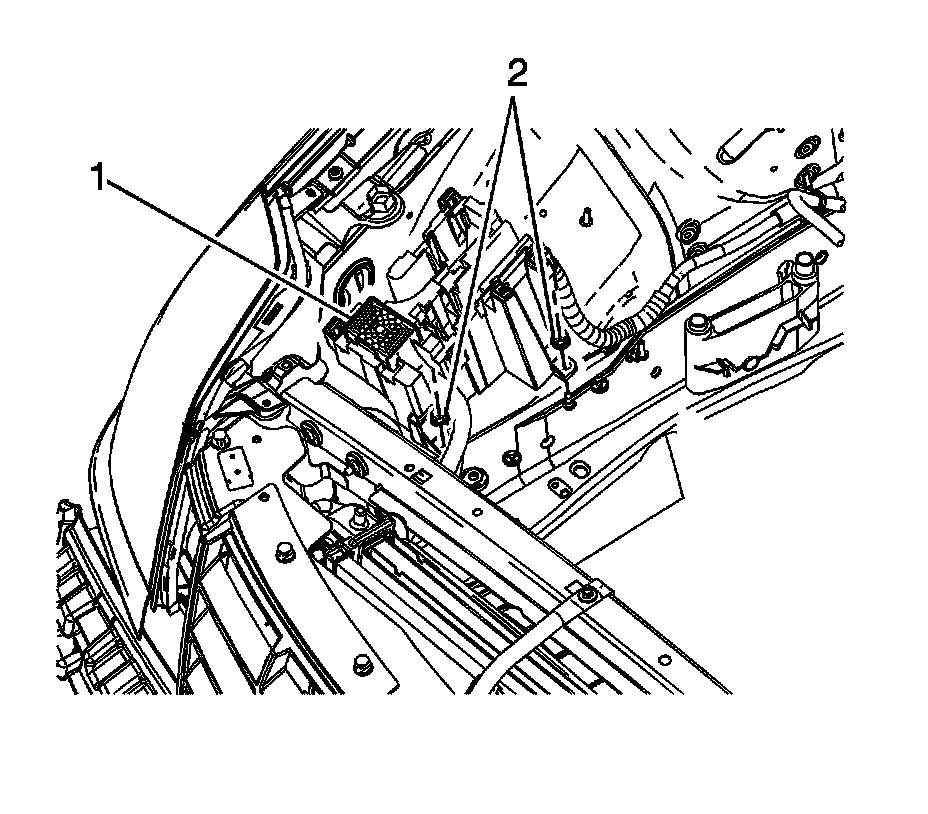

7. Remove the fasteners (2) securing the electrical center to vehicle.

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install fasteners (2) securing the electrical center to vehicle.

Tighten the fasteners to 10 N.m (86 lb in).

2. Install the harness (1).




3. Install the fasteners (1) securing the electrical center board (2).

Tighten the fasteners to 7 N.m (62 lb in).

4. Connect the positive battery cable.




5. Install the electrical center cover (1).
