Passenger Views

Power and Grounding Component Views

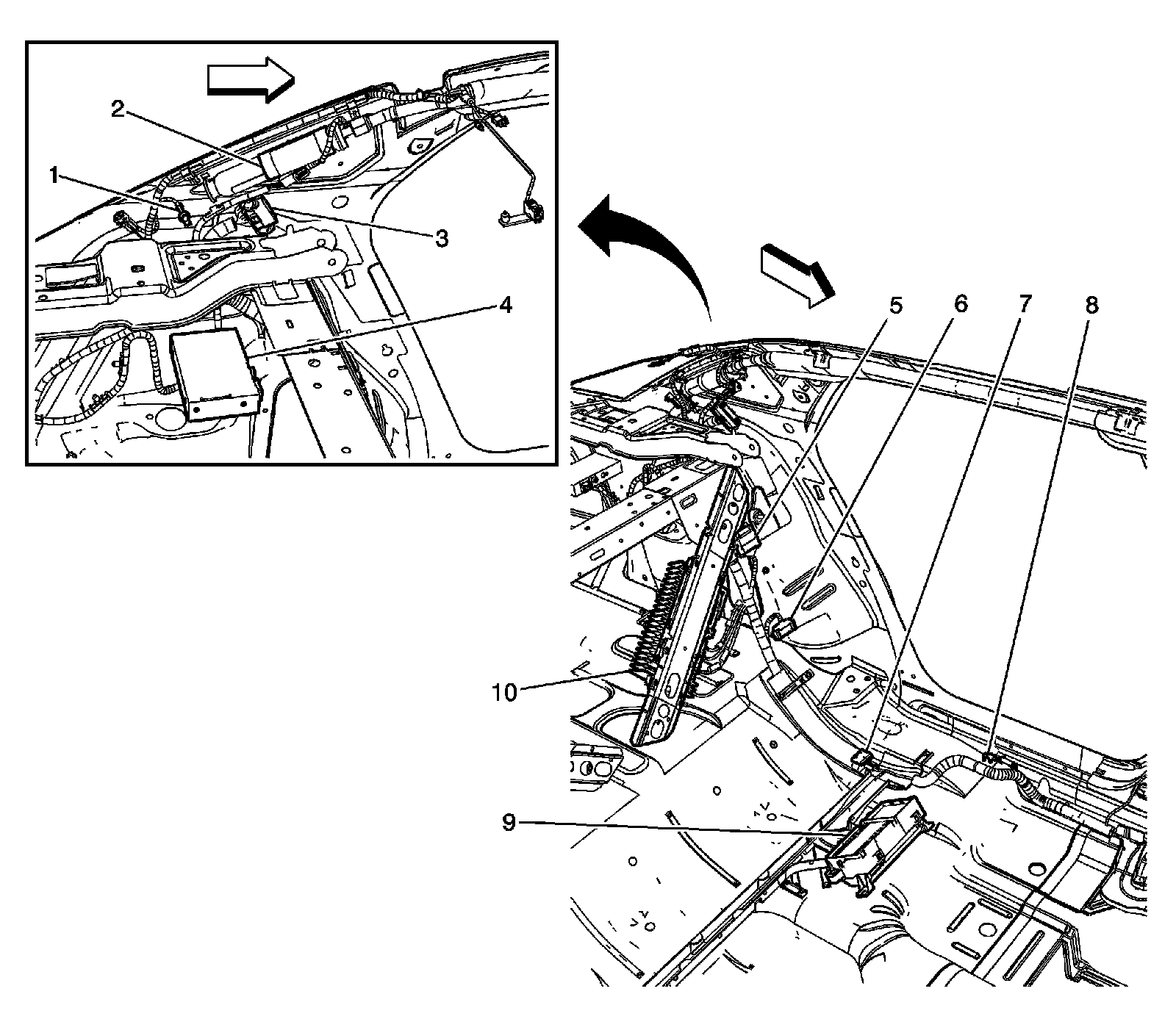

Passenger - LR Area




1 - G306
2 - Inflatable Restraint Roof Rail Module - Left
3 - C321 Body Harness to Headliner Harness
4 - Traffic Information Receiver
5 - C445 Body Harness to Rear Shelf Harness
6 - C313 Body Harness to LR Seat Harness
7 - Splice Pack SP300
8 - G301
9 - Fuse Block - Rear
10 - Audio Amplifier
