Seat Cushion Ventilation Heat and Cool Module

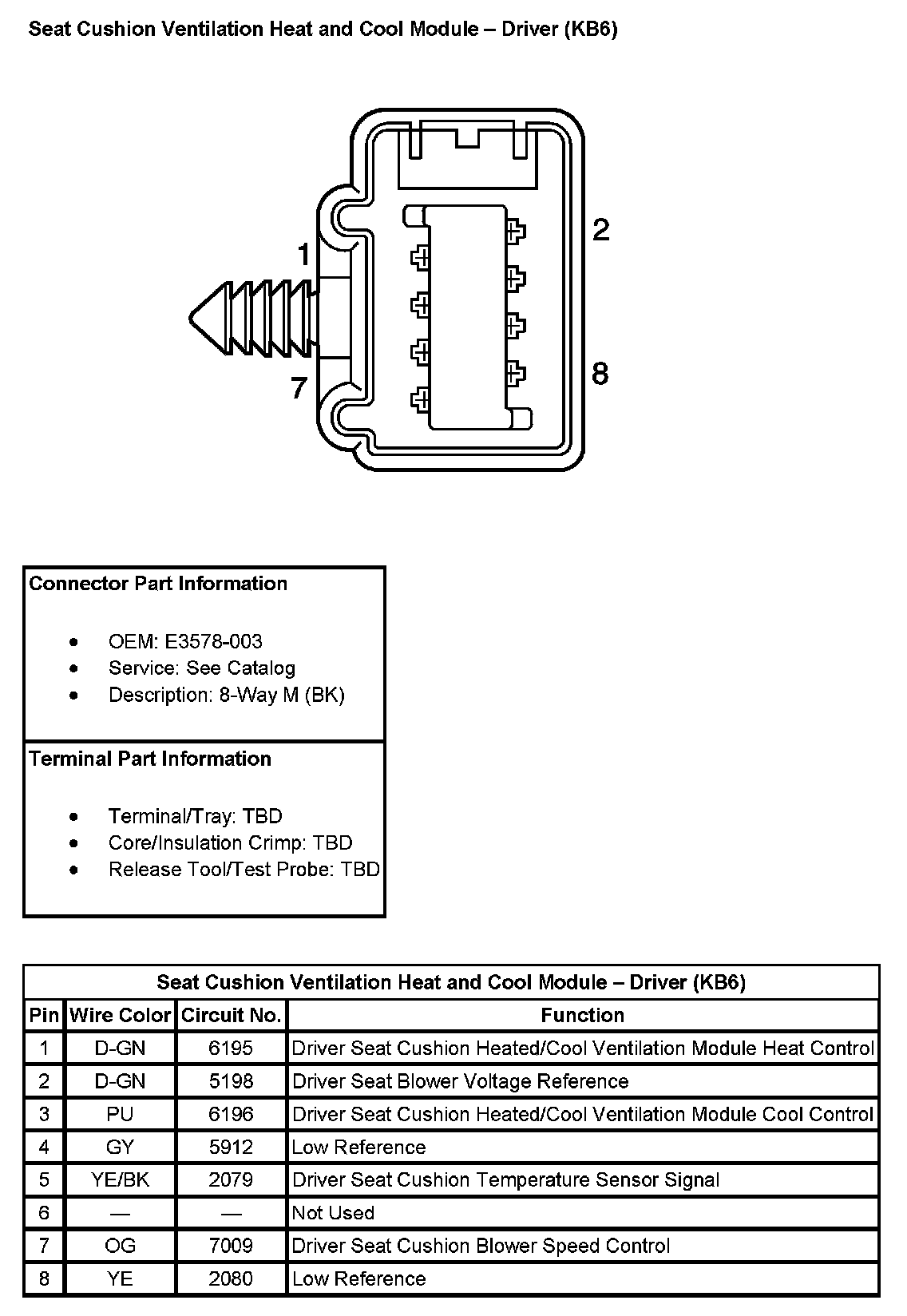

Seat Cushion Ventilation Heat And Cool Module - Driver (With RPO Code KB6):

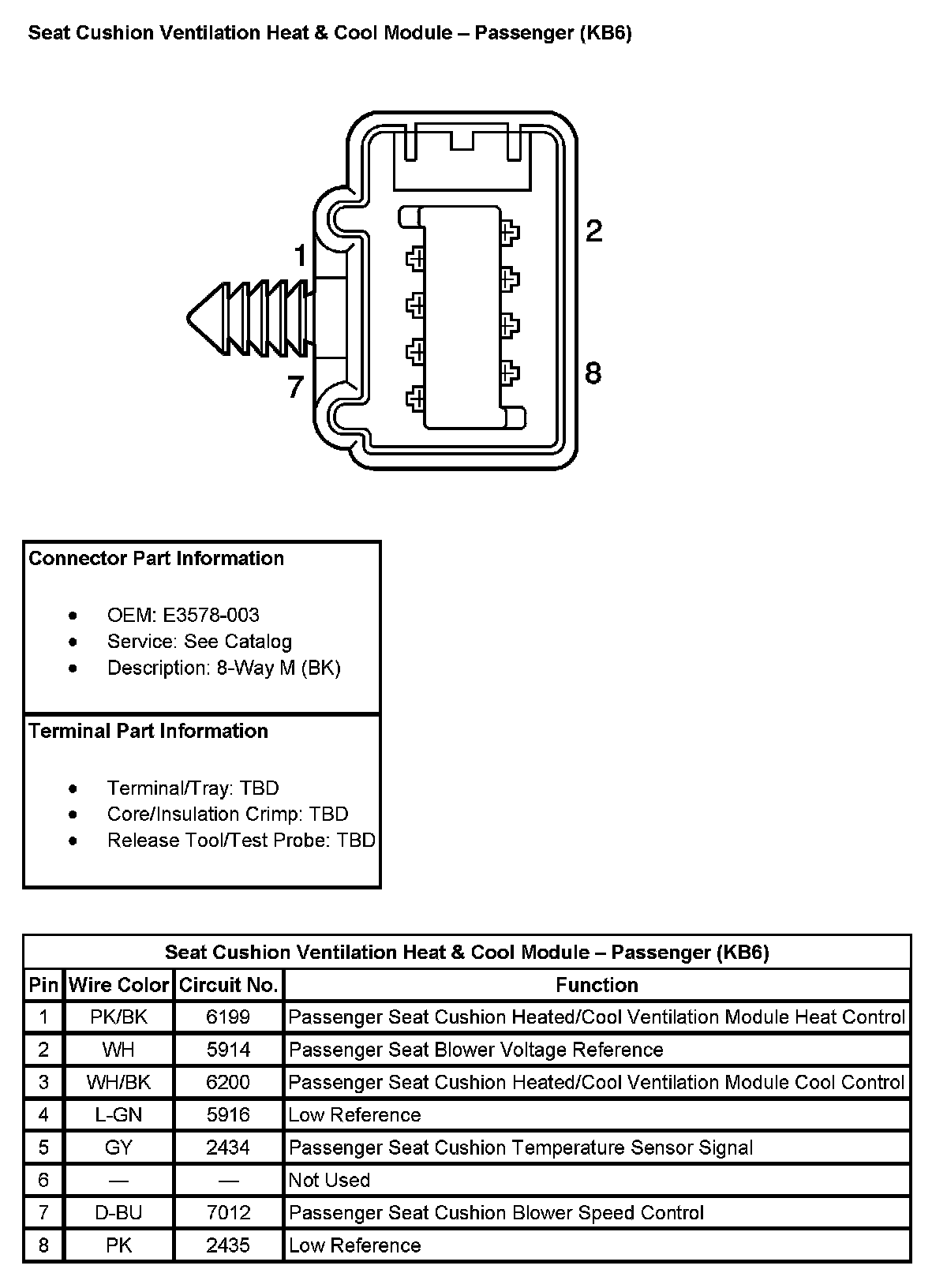

Seat Cushion Ventilation Heat & Cool Module - Passenger (With RPO Code KB6):
