Steering Angle Sensor



Antilock Brake System Connector End Views

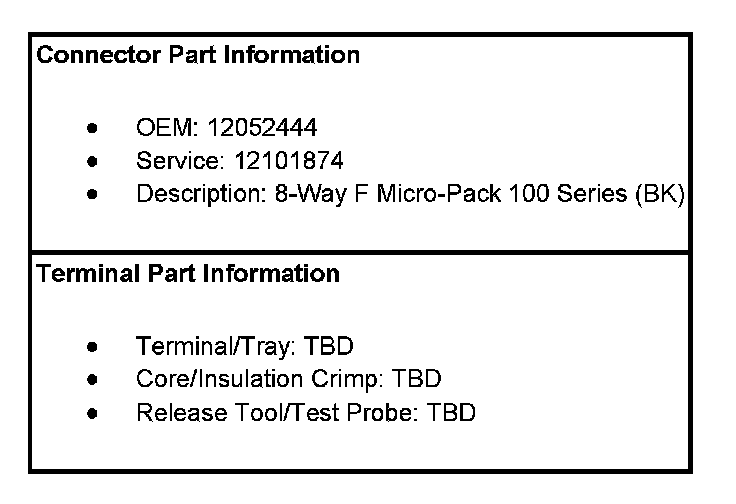

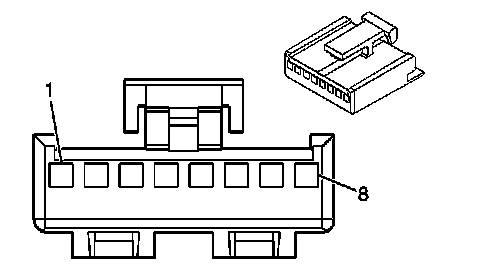

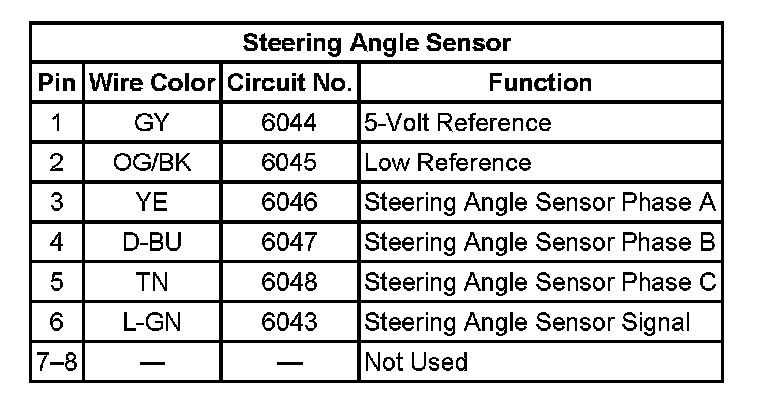

Steering Angle Sensor

Steering Wheel Speed/Position Sensor:







Steering Angle Sensor:
