HVAC System - Automatic

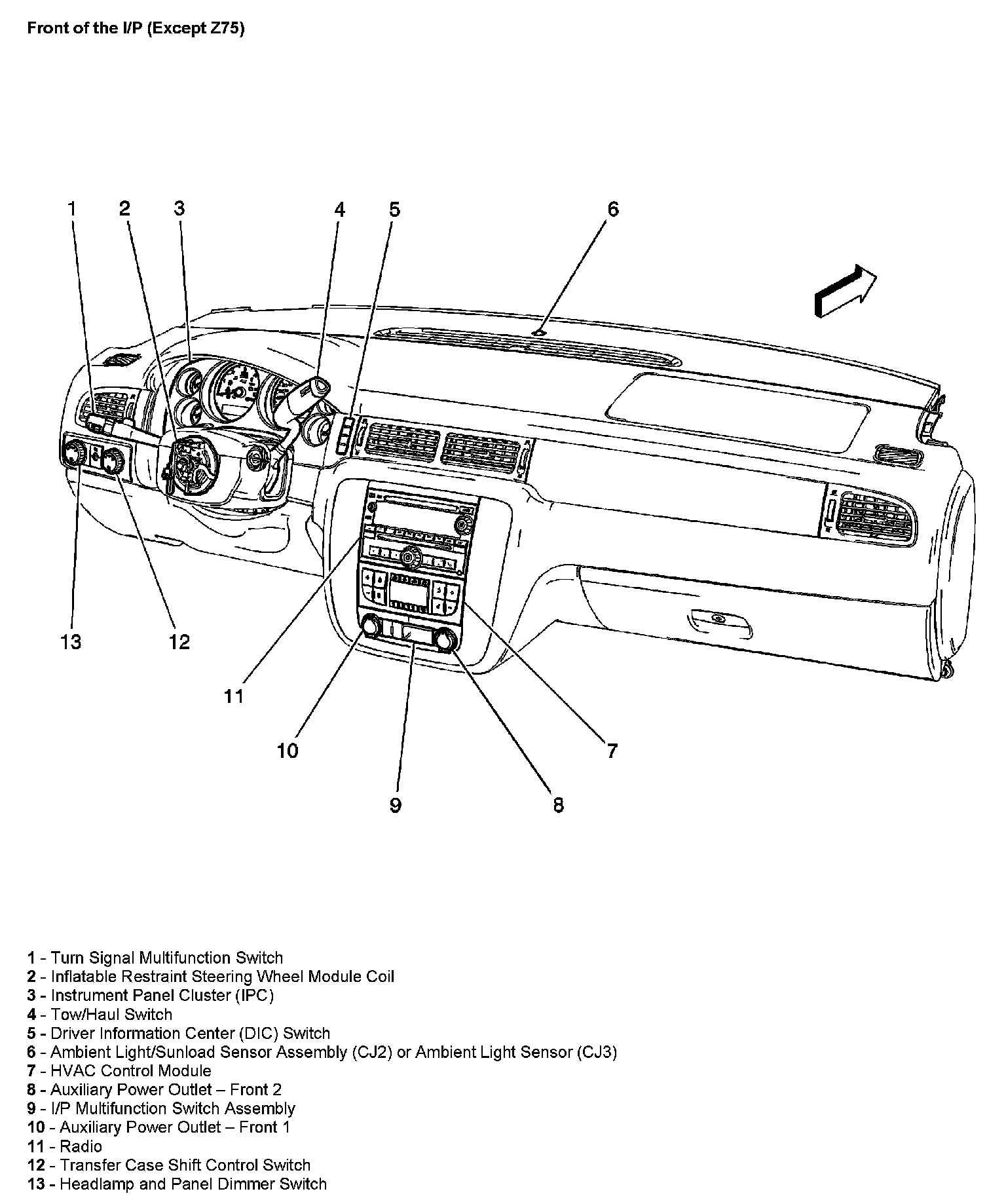

Front Of The I/P (Except RPO Code Z75):

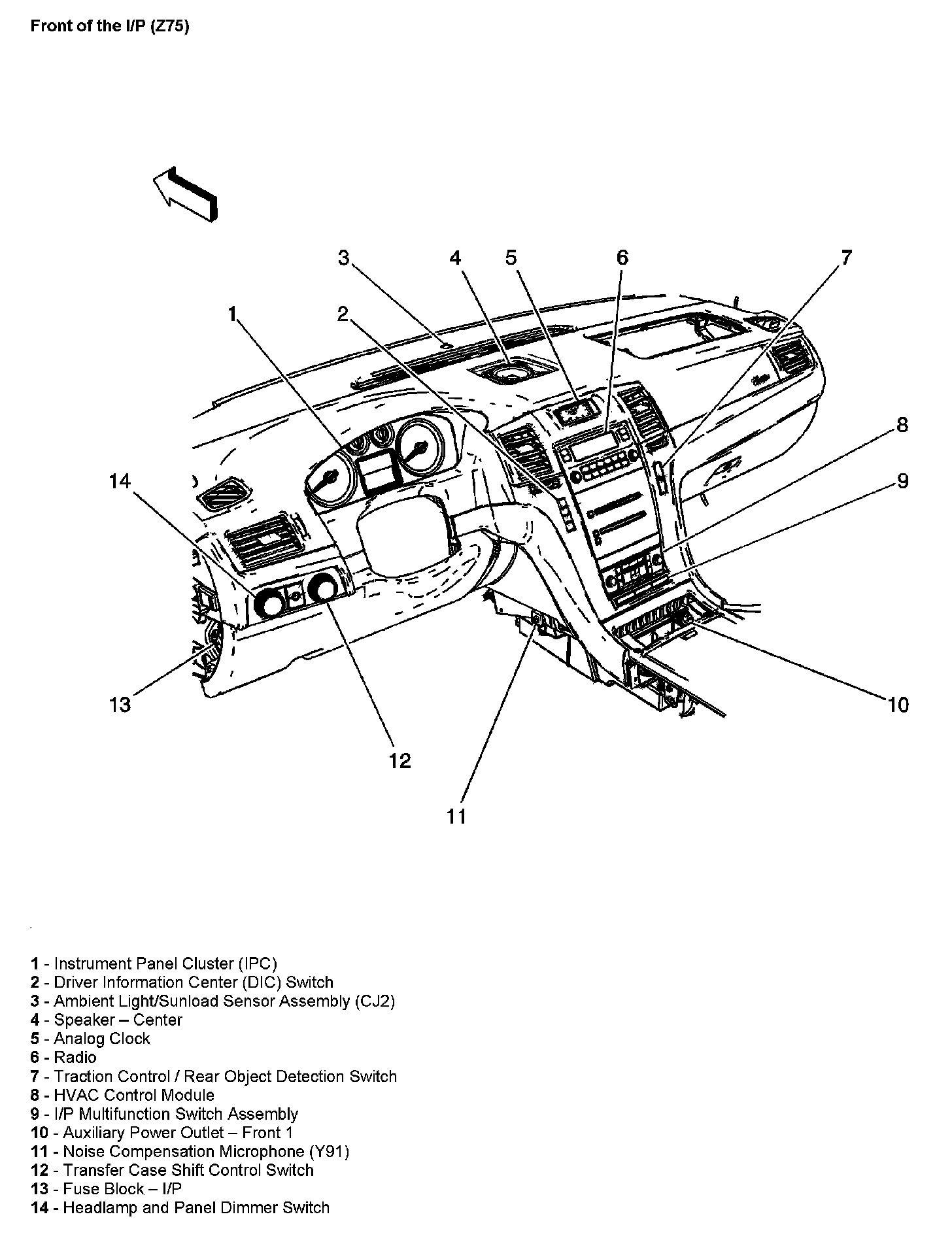

Front Of The I/P (With RPO Code Z75):

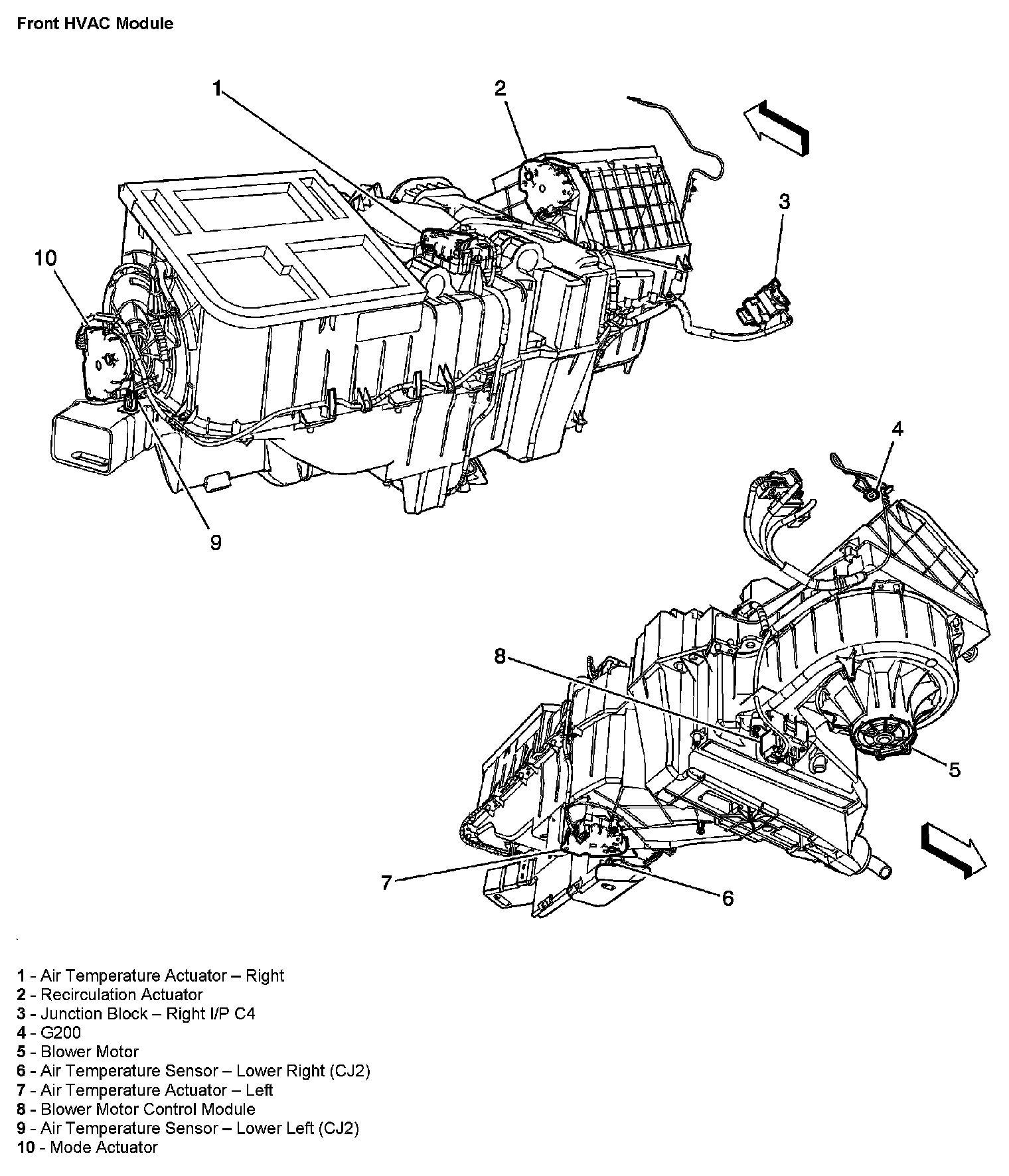

Front HVAC Module:
