Fuel Level Sensor Replacement (1500 Series With RPO Code E85)

FUEL LEVEL SENSOR REPLACEMENT (1500 SERIES WITH RPO CODE E85)

REMOVAL PROCEDURE




1. Remove the fuel tank module.

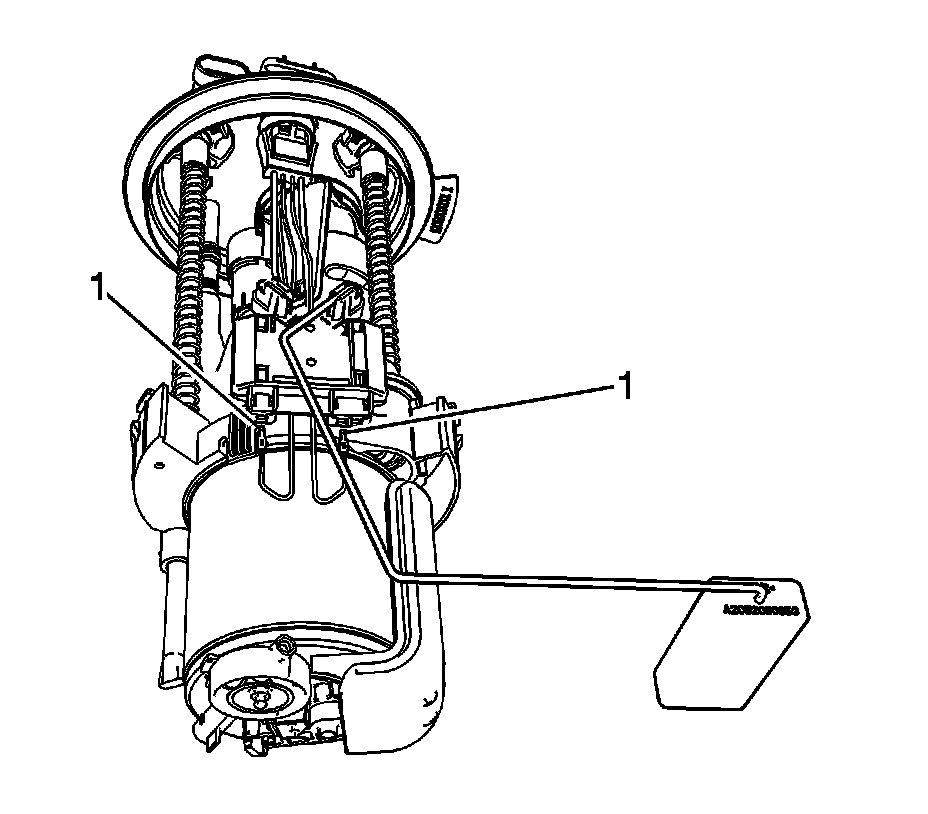

2. Disengage the retainers (1) and slide the fuel level sensor up.
3. Remove the fuel level sensor from the module.
4. Disconnect the fuel level sensor electrical connectors (1).

INSTALLATION PROCEDURE




1. Connect the fuel level sensor electrical connectors (1).
2. Install the fuel level sensor to the module.
3. Position and slide the fuel level sensor down until the retainers (1) engage the sensor.
4. Install the fuel tank module.
