Seat Back Ventilation Heat & Cool Module

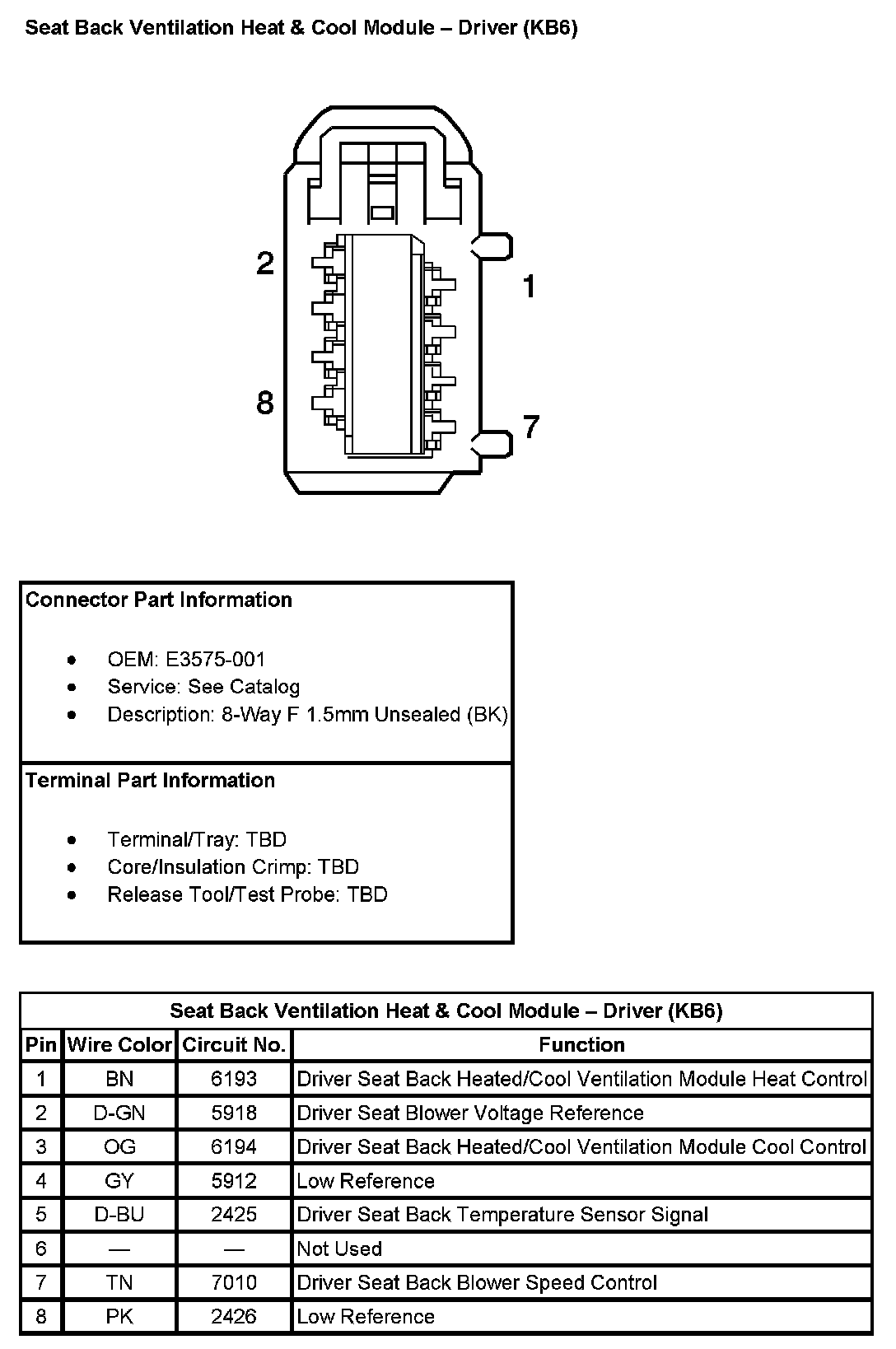

Seat Back Ventilation Heat & Cool Module - Driver (With RPO Code KB6):

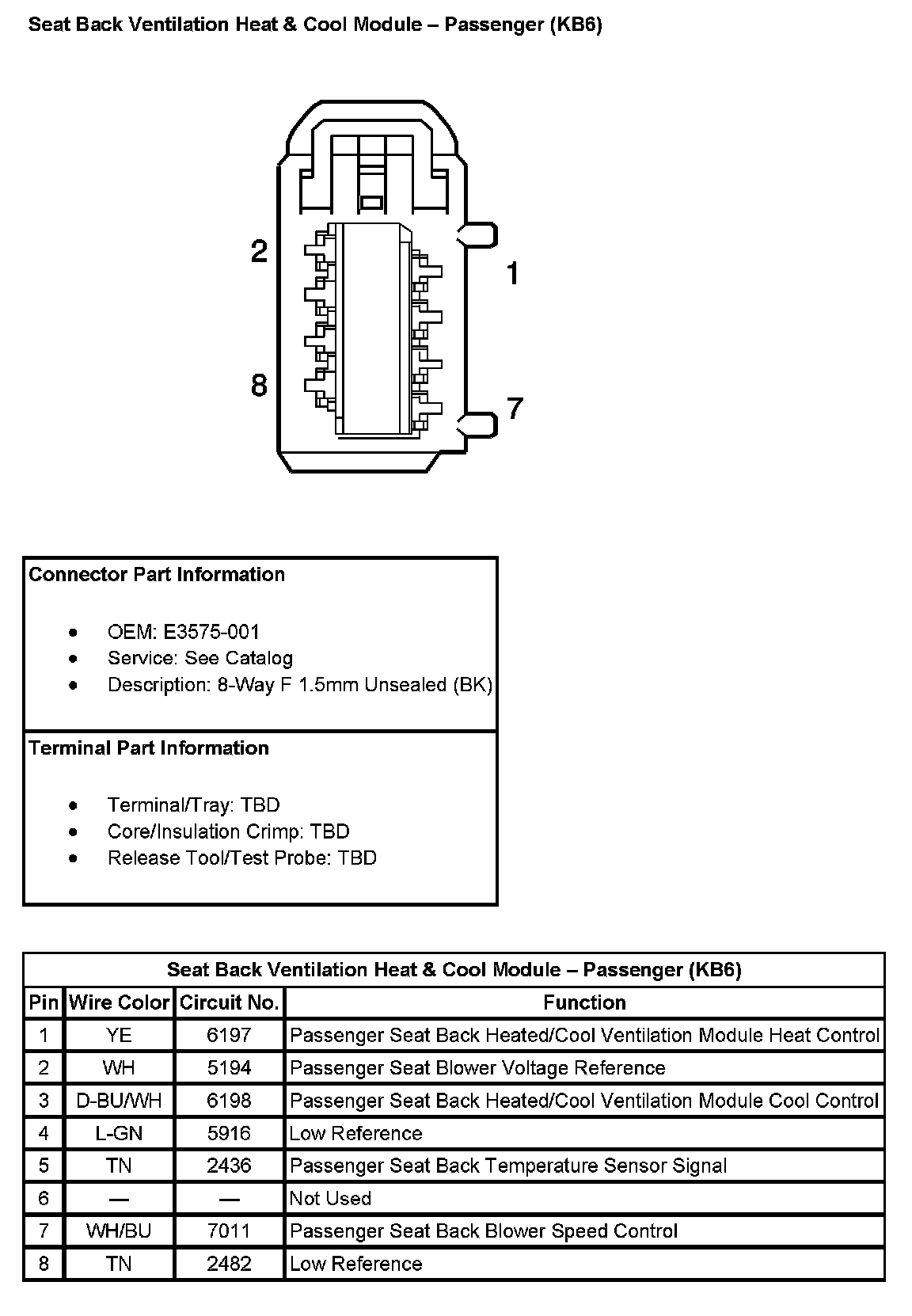

Seat Back Ventilation Heat & Cool Module - Passenger (With RPO Code KB6):
