Lighting Systems Component Views

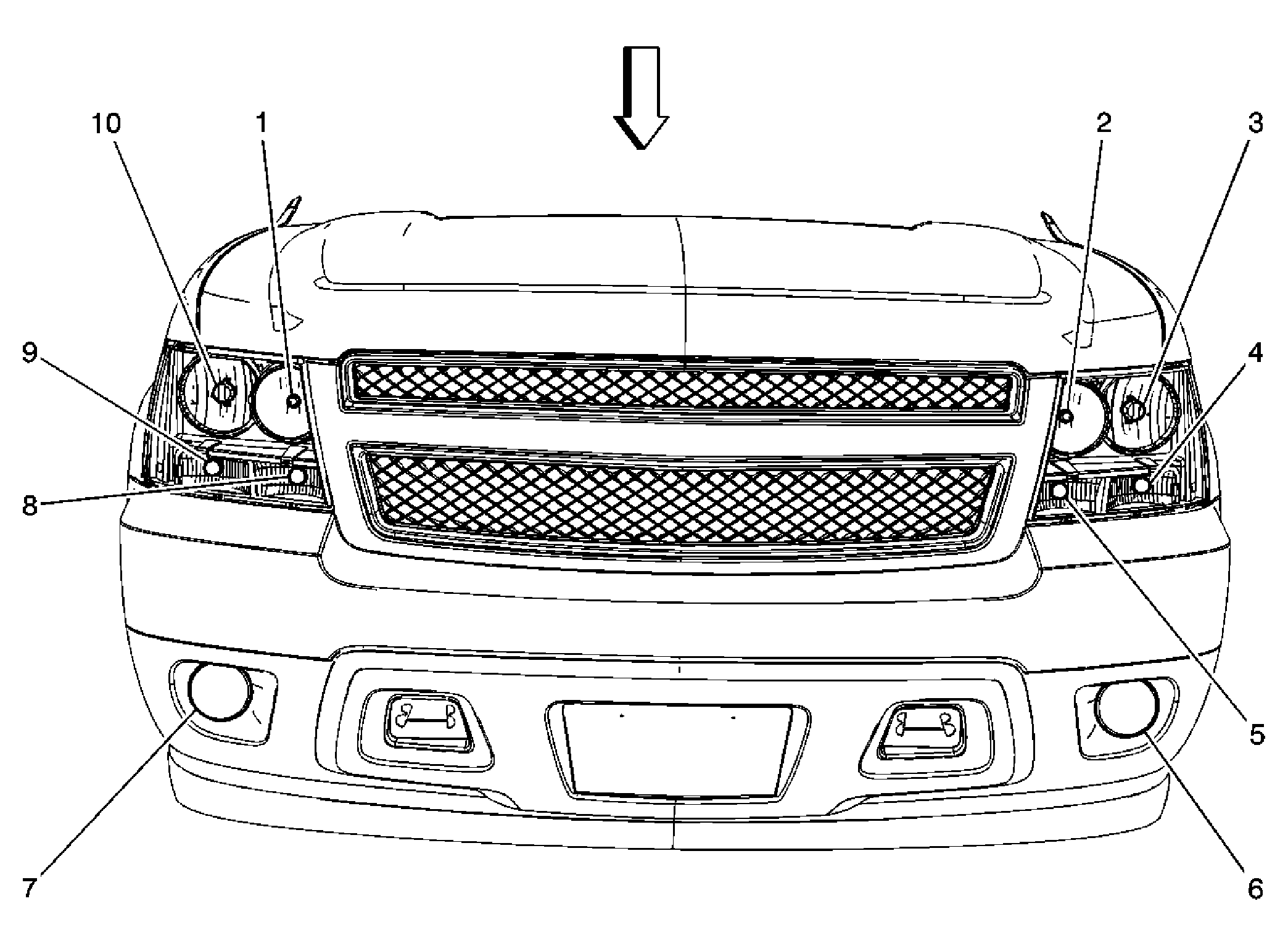

Fig 1: Front of the Vehicle (X88)
GM1714194Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - High Beam - Right
2 Headlamp - High Beam - Left
3 Headlamp - Low Beam - Left
4 Park/Turn Signal Lamp - Left
5 Daytime Running Lamp (DRL) - Left
6 Fog Lamp - LF
7 Fog Lamp - RF
8 Daytime Running Lamp (DRL) - Right
9 Park/Turn Signal Lamp - Right
10 Headlamp - Low Beam - Right

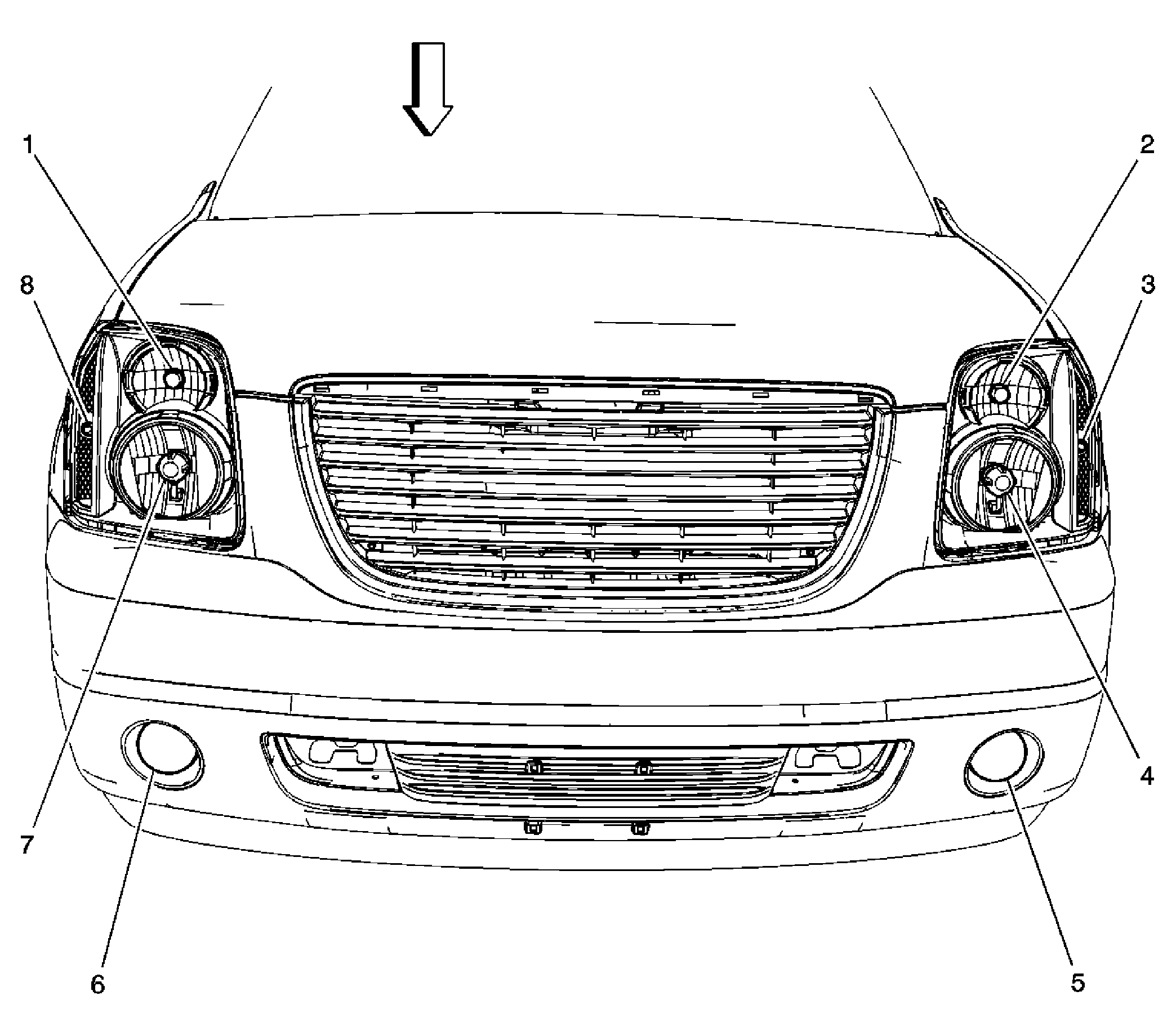

Fig 2: Front of the Vehicle (Z88)
GM1776403Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park / Turn Signal Lamp - RF
2 Park / Turn Signal Lamp - LF
3 Marker Lamp - LF
4 Headlamp - Left
5 Fog Lamp - LF
6 Fog Lamp - RF
7 Headlamp - Right
8 Marker Lamp - RF

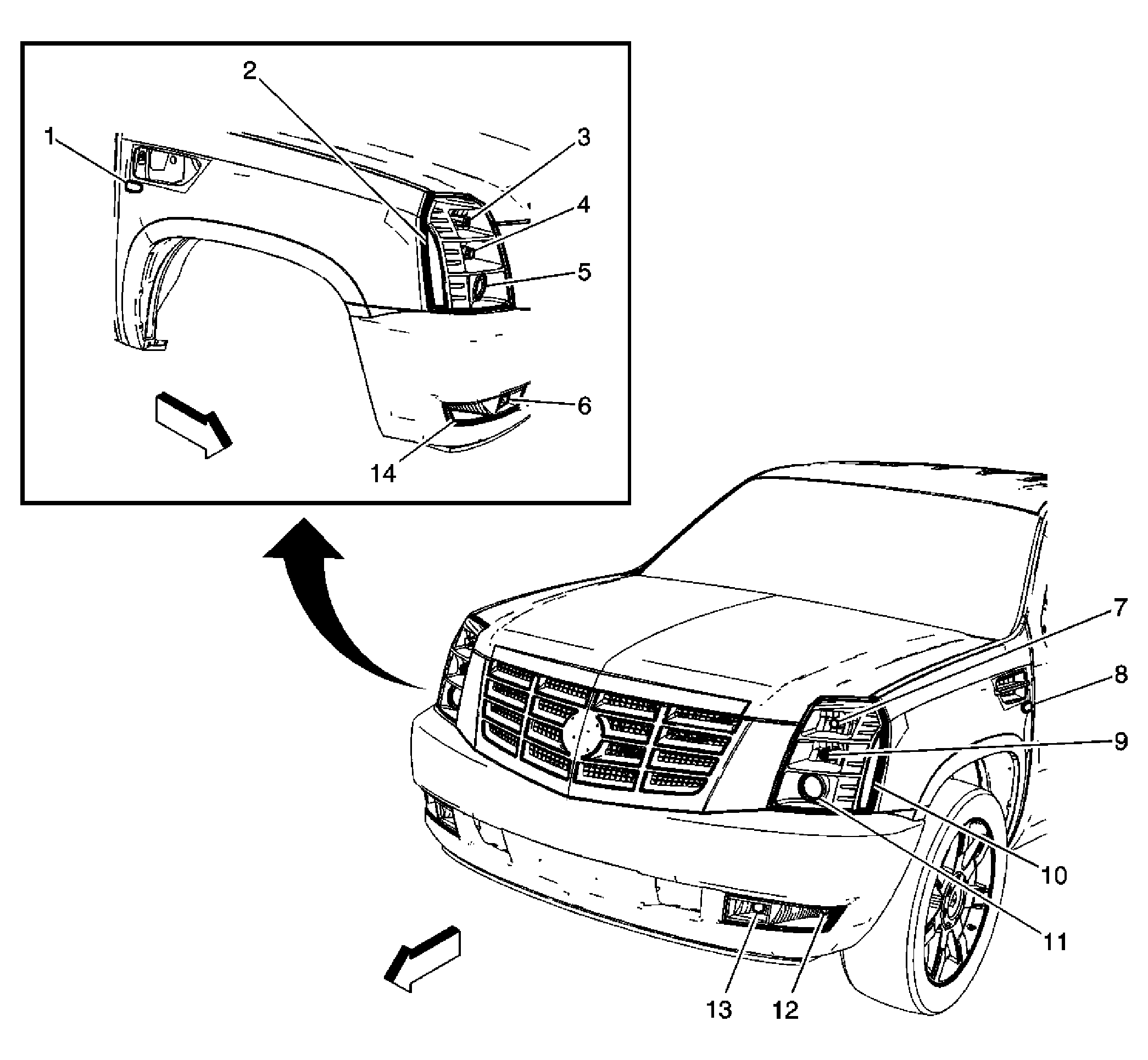

Fig 3: Front of the Vehicle (Z75)
GM1765616Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Repeater Lamp - RF (TR2)
2 Marker Lamp - RF
3 Park Lamp - RF
4 Daytime Running Lamp (DRL) - Right
5 Headlamp - Right
6 Fog Lamp - RF
7 Park Lamp - LF
8 Repeater Lamp - LF (TR2)
9 Daytime Running Lamp (DRL) - Left
10 Marker Lamp - LF
11 Headlamp - Left
12 Turn Signal Lamp - LF
13 Fog Lamp - LF
14 Turn Signal Lamp - RF
Fig 4: Top Front of the Passenger Compartment
GM1714227Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Switch (CF5)
2 Courtesy/Reading Lamps - Second Row
3 Power Liftgate Switch (E61)
4 Folding Seat Switch - Front (ARS)
5 Garage Door Opener (UG1)
6 Onstar Button Assembly (UE1)
7 Inside Rearview Mirror (ISRVM)
8 Inflatable Restraint Passenger Air Bag ON/OFF Indicator
9 Courtesy/Reading Lamp - Front
10 Inside Air Temperature Sensor - Front (CJ2)
Fig 5: Front of the I/P (Except Z75)
GM1714203Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal Multifunction Switch
2 Inflatable Restraint Steering Wheel Module Coil
3 Instrument Panel Cluster (IPC)
4 Tow/Haul Switch
5 Driver Information Center (DIC) Switch
6 Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7 HVAC Control Module
8 Auxiliary Power Outlet - Front 2
9 I/P Multifunction Switch Assembly
10 Auxiliary Power Outlet - Front 1
11 Radio
12 Transfer Case Shift Control Switch
13 Headlamp and Panel Dimmer Switch
Fig 6: Front of the I/P (Z75)
GM1732568Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster (IPC)
2 Driver Information Center (DIC) Switch
3 Ambient Light/Sunload Sensor Assembly (CJ2)
4 Speaker - Center
5 Analog Clock
6 Radio
7 Traction Control / Rear Object Detection Switch
8 HVAC Control Module
9 I/P Multifunction Switch Assembly
10 Auxiliary Power Outlet - Front 1
11 Noise Compensation Microphone (Y91)
12 Transfer Case Shift Control Switch
13 Fuse Block - I/P
14 Headlamp and Panel Dimmer Switch
Fig 7: Above the Headliner
GM1714213Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Module (CF5)
2 Courtesy/Reading Lamps - 2nd Row
3 Courtesy/Reading Lamps - 3rd Row
4 Inside Air Temperature Sensor - Rear (CJ2)
5 Headliner
6 Inside Air Temperature Sensor - Front (CJ2)
7 Inside Rearview Mirror (ISRVM)
8 Outside Moisture Sensor (CE1)
Fig 8: Rear of the Vehicle (X88 w/E52)
GM1714228Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Lamp - Left
2 Center High Mounted Stop Lamp (CHMSL)
3 Defogger Grid
4 License Lamp - Right
5 Tail/Stop Lamp - Right
6 Backup Lamp - Right
7 Tail/Turn Signal Lamp -Right
8 Object Sensor - RR Corner
9 Object Sensor - RR Middle
10 Rearview Camera (UVC) (E52)
11 Object Sensor - LR Middle
12 Object Sensor - LR Corner
13 Tail/Turn Signal Lamp - Left
14 Backup Lamp - Left
15 Tail/Stop Lamp - Left
Fig 9: Rear of the Vehicle (X88 Except E52)
GM1755833Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rearview Camera (UVC)
2 Tail/Stop Lamp - Right
3 Backup Lamp - Right
4 Tail/Turn Signal Lamp - Right
5 Marker Lamp - RR
6 Object Sensor - RR Corner
7 License Lamp - Right
8 Object Sensor - RR Middle
9 Object Sensor - LR Middle
10 Marker Lamp - LR
11 Tail/Turn Signal Lamp - Left
12 Backup Lamp - Left
13 Tail/Stop Lamp Left
14 Object Sensor - LR Corner
15 License Lamp - Left
Fig 10: Rear of the Vehicle (Z75 w/E52)
GM1755828Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Defogger Grid
2 Center high Mounted Stop Lamp (CHMSL)
3 Rearview Camera (UVC)
4 Object Sensor - RR Corner
5 Tail Lamp Circuit Board - Right (Park)
6 Tail Lamp Circuit Board - Right (Marker)
7 Backup Lamp - RR
8 Tail Lamp circuit Board - Right (Stop/Turn)
9 Object Sensor - RR Middle
10 Tail Lamp Circuit Board - Left (Stop/Turn)
11 Backup Lamp - LR
12 Tail Lamp Circuit Board - Left (Marker)
13 Tail Lamp Circuit Board - Left (Park)
14 Object Sensor - LR Corner
15 Object Sensor - LR Middle
Fig 11: Rear of the Vehicle (Z75 w/o E52)
GM1765614Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tail / Stop and Turn Signal Lamp - Upper Left
2 License Lamp - Right
3 Tail / Stop and Turn Signal Lamp - Upper Right
4 Tail / Stop and Turn Signal Lamp - Lower Right
5 Marker Lamp - RR
6 Backup Lamp - Right
7 Object Sensor - RR Corner
8 Object Sensor - RR Middle
9 Object Sensor - LR Middle
10 Object Sensor - LR Corner
11 Rearview Camera (UVC)
12 License Lamp - Left
13 Backup Lamp - Left
14 Marker Lamp - LR
15 Tail / Stop and Turn Signal Lamp - Lower Left
