Infrared Module (U42)
Infrared Module (U42) Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

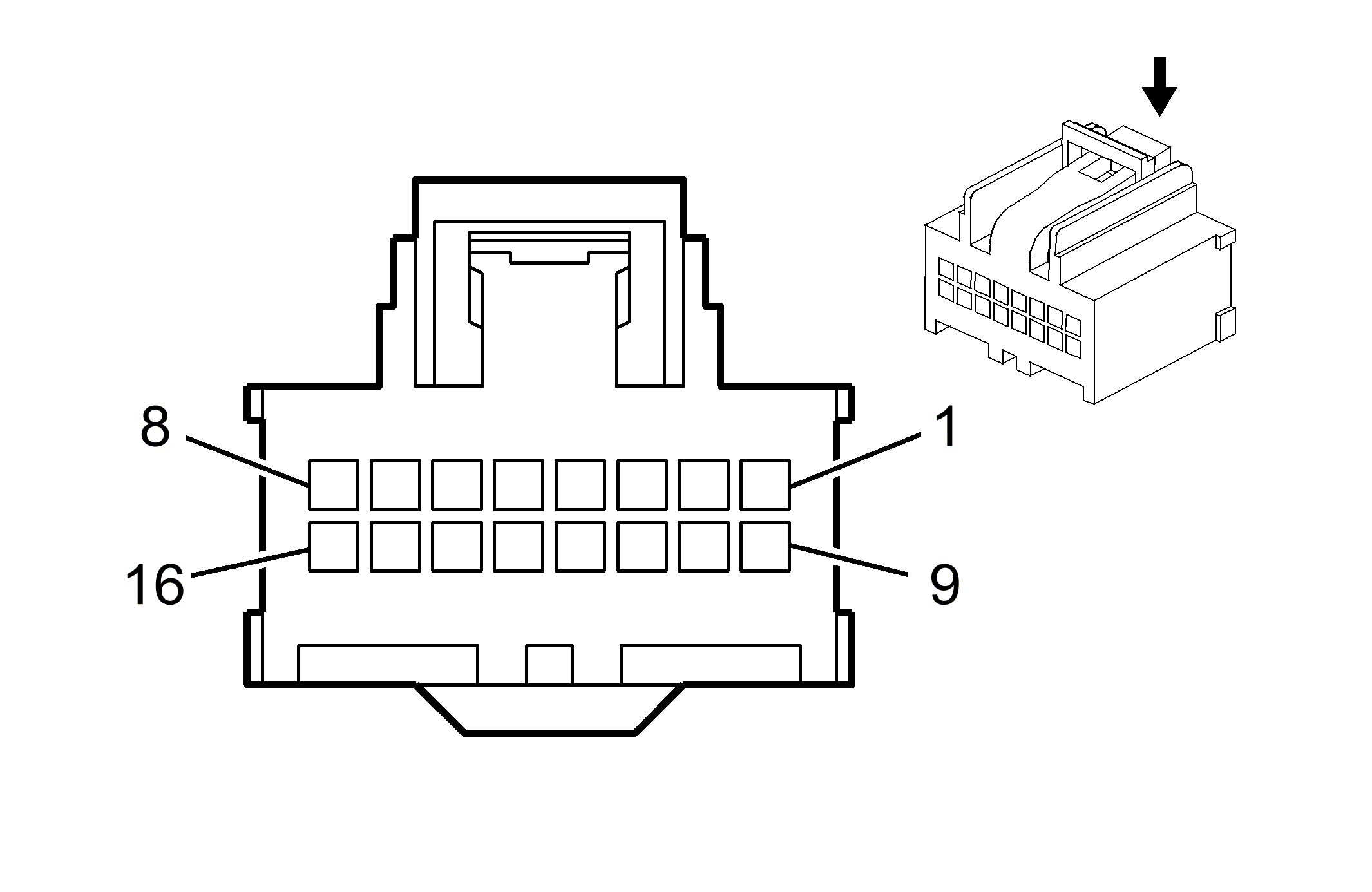

Infrared Module (U42) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | L-BU | 5826 | Left DVD Audio Signal (+) |
| 2 | PU | 6979 | DVD Audio Common |
| 3 | WH | 5828 | Right DVD Audio Signal (+) |
| 4 | PK | 5829 | Infra Red Module Supply Voltage |
| 5-7 | - | - | Not Used |
| 8 | OG/BK | 5831 | Remote Infra Red Signal (+) |
| 9 | OG/BK | 5329 | Left Infra Red Audio Signal |
| 10 | BN/WH | 5331 | Infra Red Audio Low Reference |
| 11 | PU/WH | 5330 | Right Infra Red Audio Signal |
| 12 | BK | 2550 | Ground |
| 13-15 | - | - | Not Used |
| 16 | TN/WH | 5830 | Remote Infra Red Signal (-) |
