Wiper/Washer Component Views

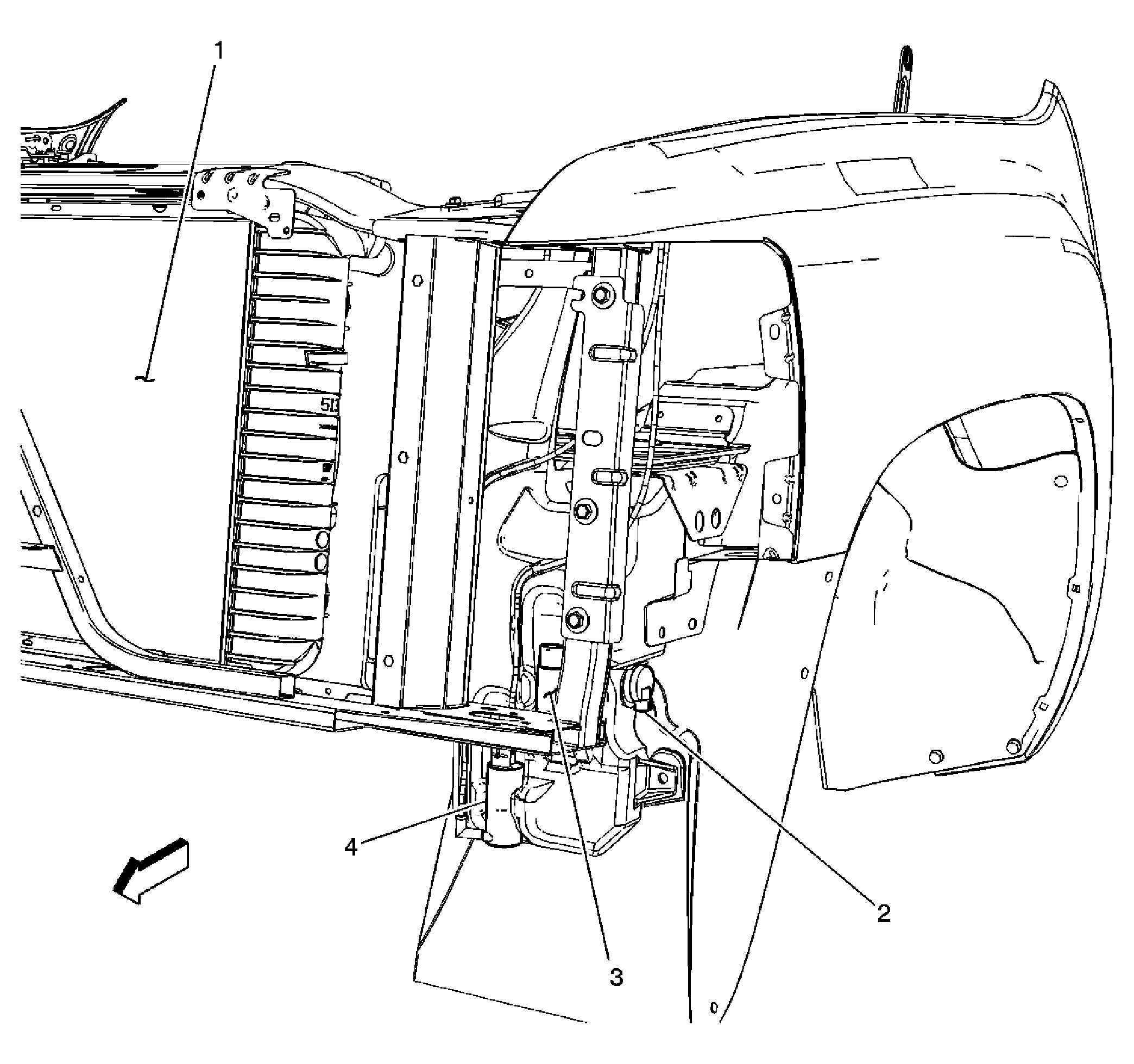

Fig 1: Windshield Washer Container Components

GM1714222

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator
2	Washer Fluid Level Switch
3	Rear Window Washer Fluid Pump
4	Windshield Washer Fluid Pump

Fig 2: Front Headlamp Washer Bottle Components

GM1714195

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LF Fender
2	Headlamp Washer Fluid Pump (CE4)
3	Headlamp Washer Fluid Reservoir (CE4)
4	Radiator

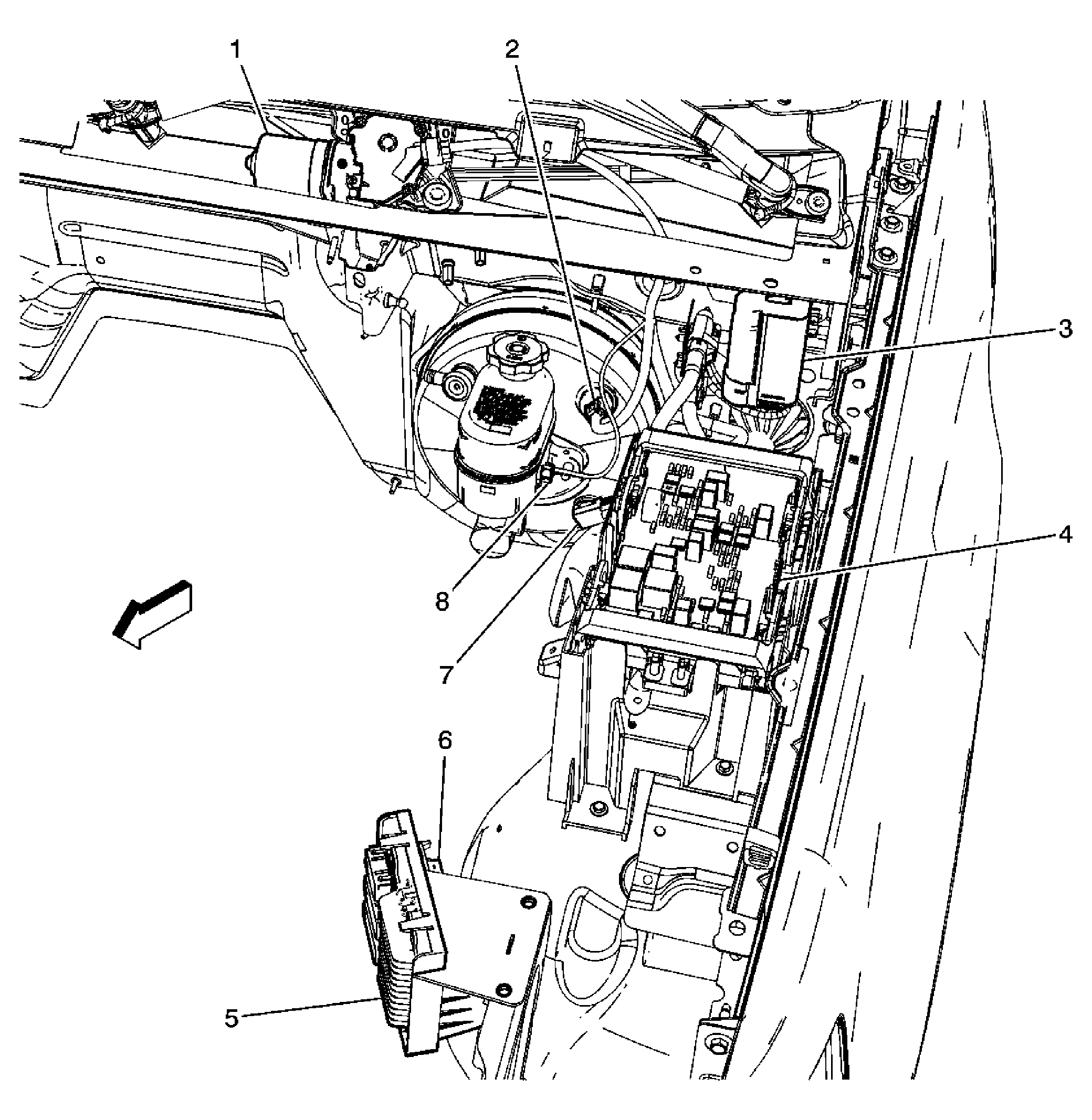

Fig 3: Left Side of the Engine Compartment

GM1714226

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Power Brake Booster
3	Windshield Washer Solvent Heater
4	Fuse Block - Underhood
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM)
7	Brake Booster Vacuum Sensor
8	Brake Fluid Level Switch

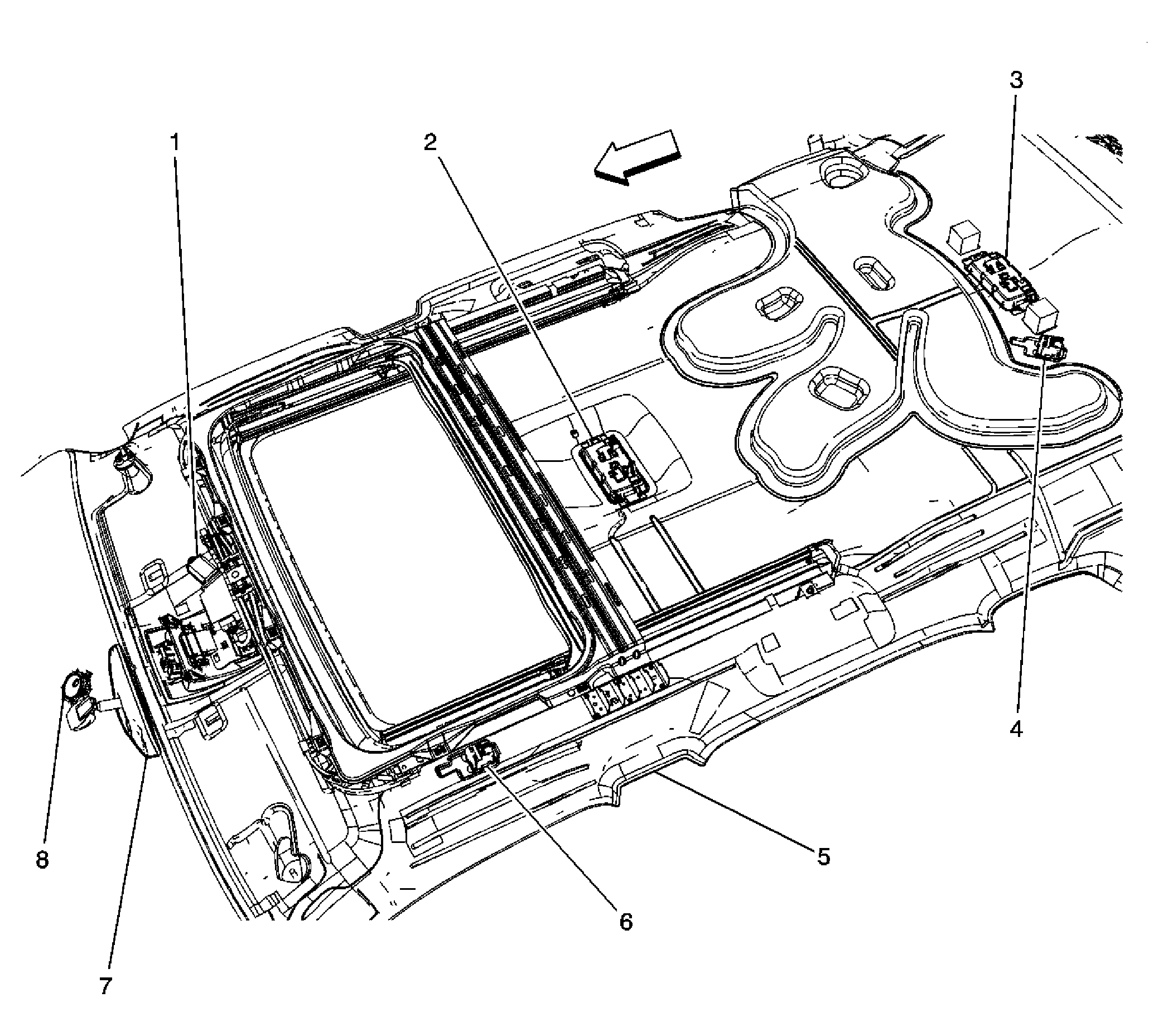

Fig 4: Above the Headliner

GM1714213

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Module (CF5)
2	Courtesy/Reading Lamps - 2nd Row
3	Courtesy/Reading Lamps - 3rd Row
4	Inside Air Temperature Sensor - Rear (CJ2)
5	Headliner
6	Inside Air Temperature Sensor - Front (CJ2)
7	Inside Rearview Mirror (ISRVM)
8	Outside Moisture Sensor (CE1)

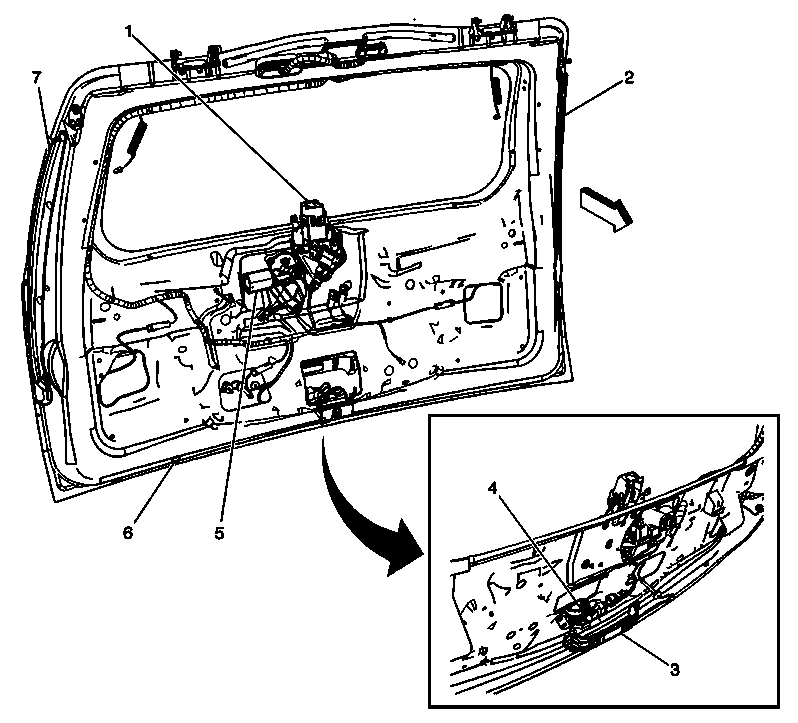

Fig 5: Liftgate Components

GM1755826

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftglass Latch Assembly
2	Liftgate Object Sensor - Left (E61)
3	Liftgate Handle Switch (E61)
4	Liftgate Latch Assembly
5	Rear Window Wiper Motor
6	Liftgate Object Sensor - Right (E61)
