Step/Running Board Component Views

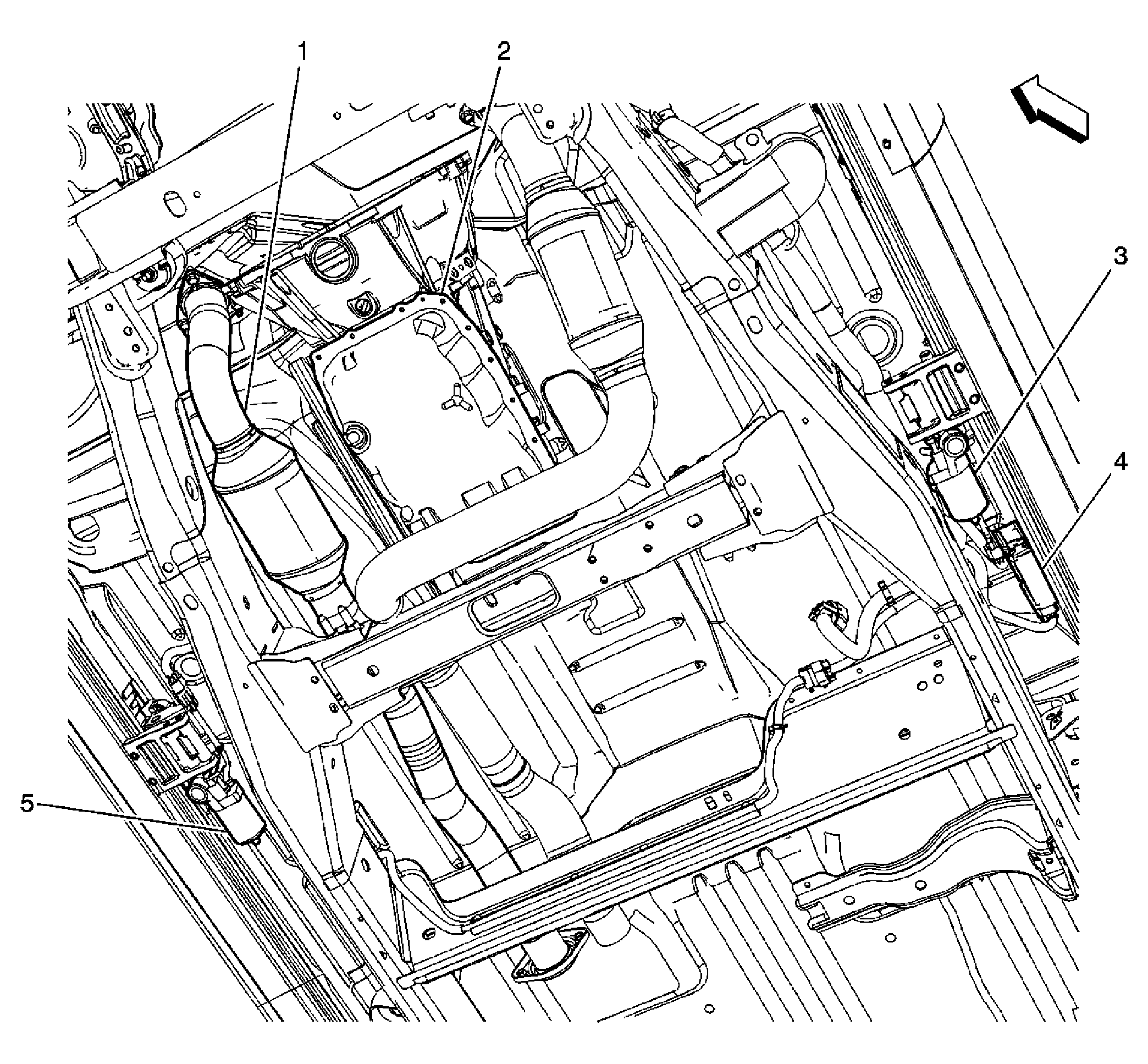

Fig 1: Retractable Running Board Components (BRS)
GM1750303Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Exhaust
2 Transmission
3 Running Board - Right
4 Articulating Running Board Module (ARBM)
5 Running Board - Left
