Inflatable Restraint Roof Rail Module - LR (ASF) Connector End View

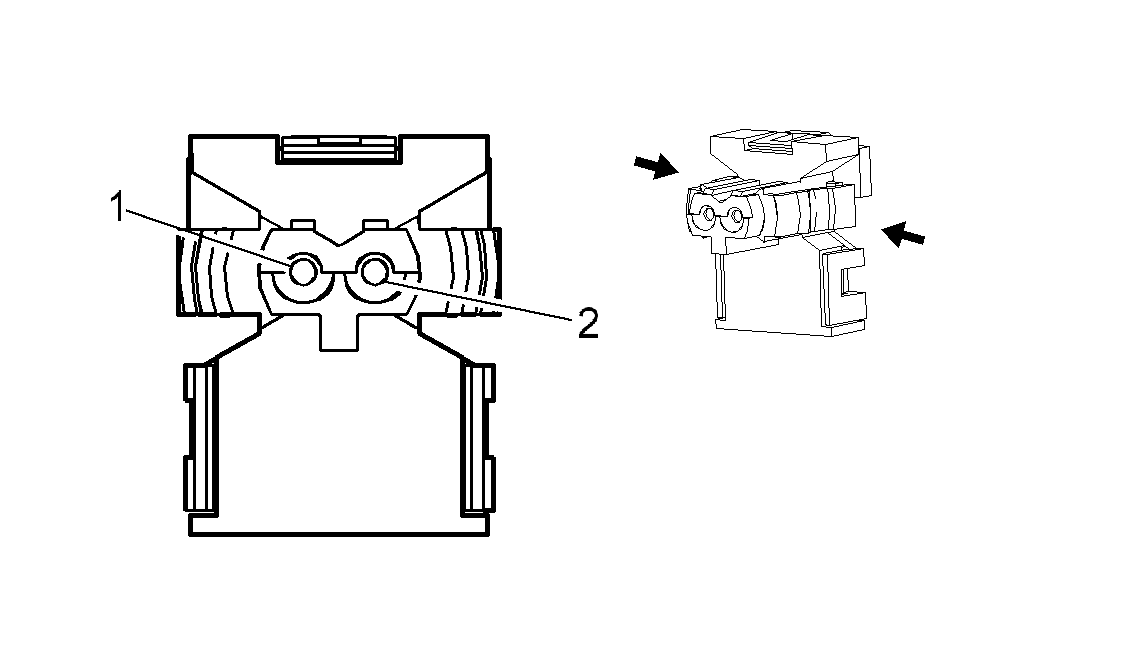

Fig 1: Inflatable Restraint Roof Rail Module - LR (ASF) Connector End View
GM1715235Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Roof Rail Module - LR (ASF) Connector Parts Information

Connector Part Information
  • OEM: 15136347
  • Service: See Catalog
  • Description: 2-Way F
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: TBD
Inflatable Restraint Roof Rail Module - LR (ASF) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 TN 7014 Left Rear Head Curtain Module Low Control
2 YE 7013 Left Rear Head Curtain Module High Control
