Adjustable Pedal Schematics

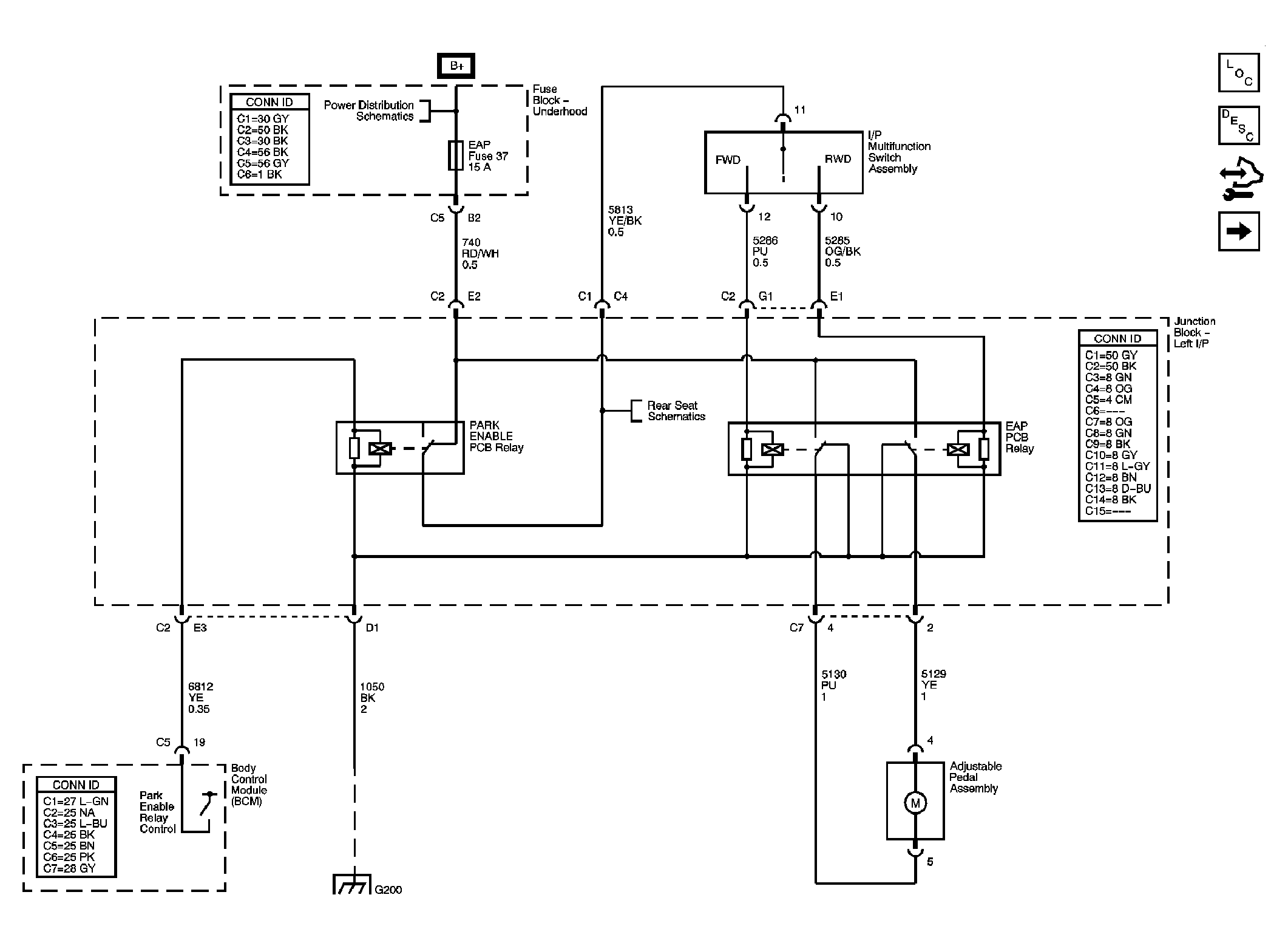

Fig 1: Except AN3 Schematic
GM1701912Courtesy of GENERAL MOTORS CORP.

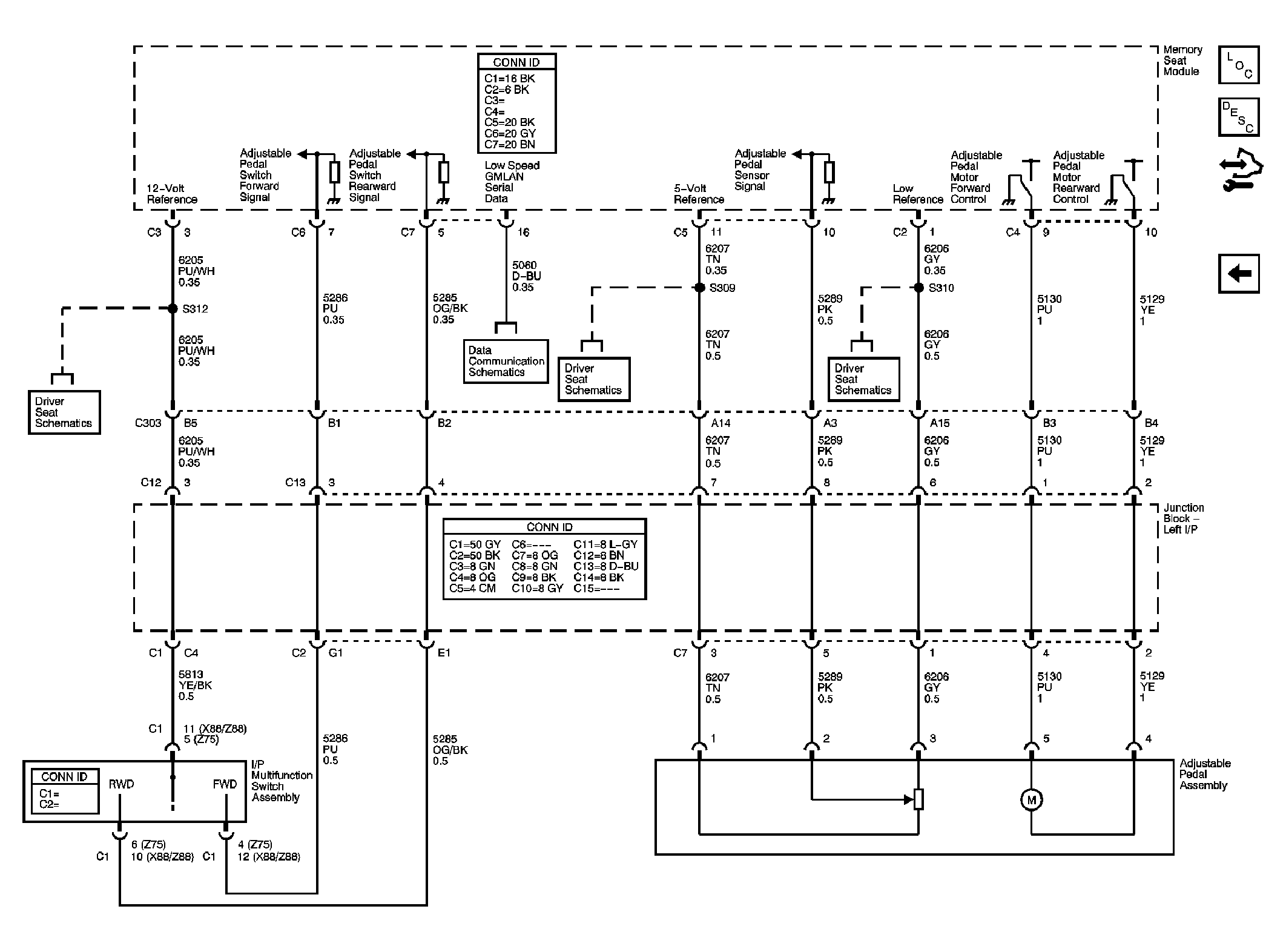

Fig 2: AN3 Schematic
GM1701913Courtesy of GENERAL MOTORS CORP.
