Immobilizer Schematics

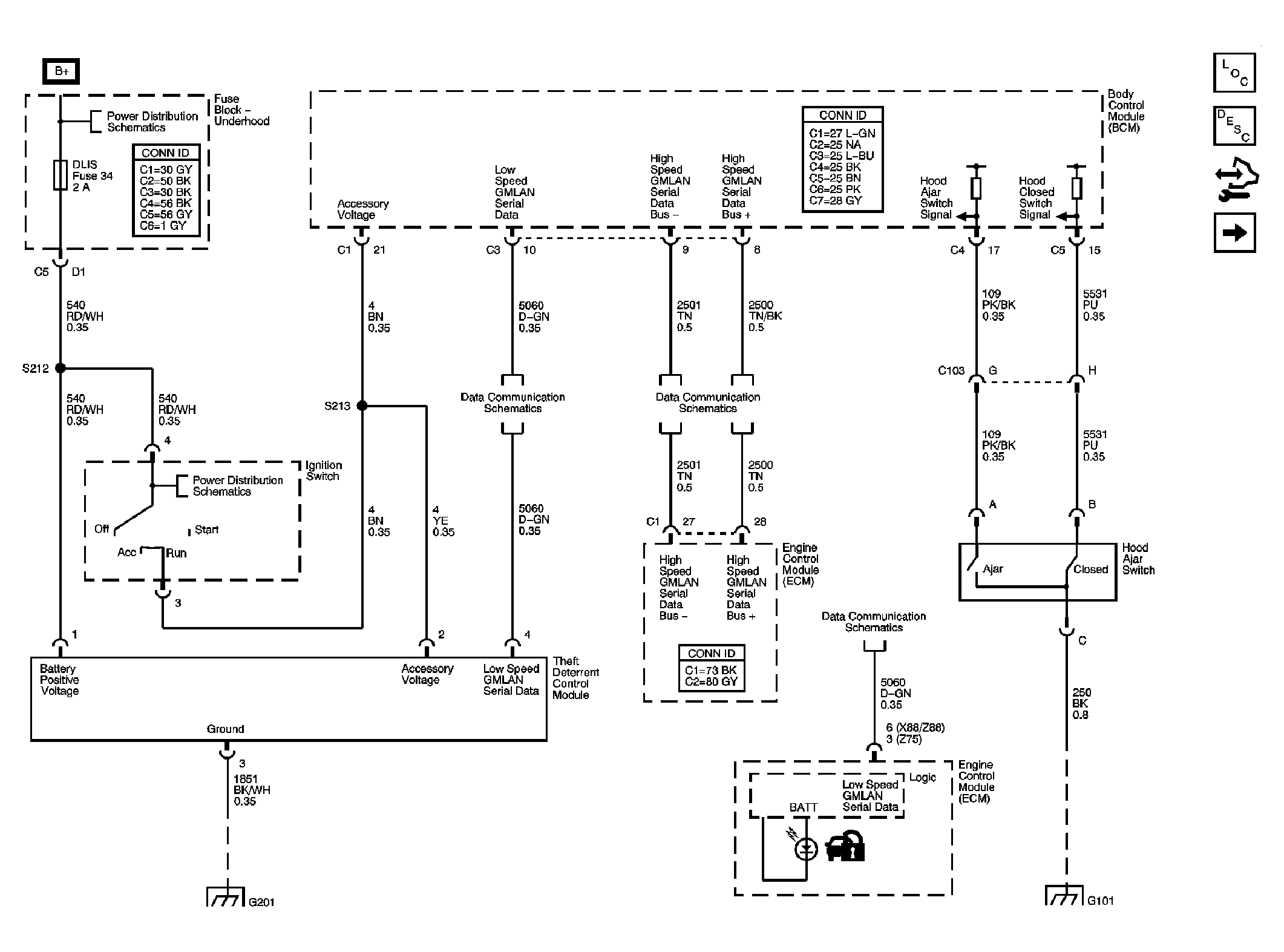

Fig 1: Immobilizer Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
