Installation Procedure

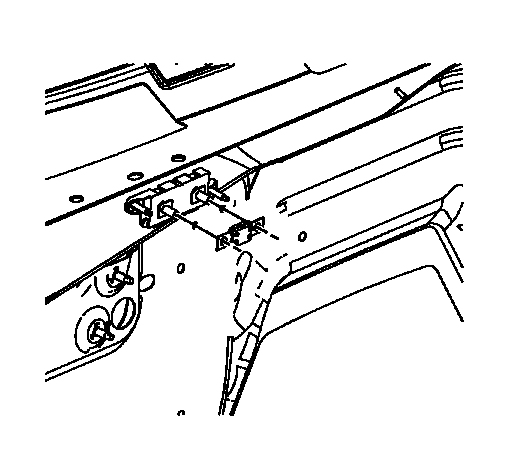

    Fig 1: View Of Fuse & Holder
    GM1714852Courtesy of GENERAL MOTORS CORP.
  1. Install the fuse to the holder.
    2. Fig 2: View Of Generator Battery Jumper Cable & Components
    GM1699546Courtesy of GENERAL MOTORS CORP.
  2. Install the positive battery cable terminal to the fuse stud.
  3. Install the generator battery jumper cable terminal (4) to the fuse stud.
    4. NOTE: Refer to Fastener Notice .
  4. Install the generator battery jumper cable to fuse nut (3).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    5. Fig 3: View Of Battery Cable Components
    GM1702504Courtesy of GENERAL MOTORS CORP.
  5. Install the starter solenoid cable terminal (2) to the fuse stud.
  6. Install the starter solenoid cable nut (1) to the fuse stud.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    7. Fig 4: View Of Mega Fuse Cover
    GM1702800Courtesy of GENERAL MOTORS CORP.
  7. Install the fuse cover.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
