Installation Procedure

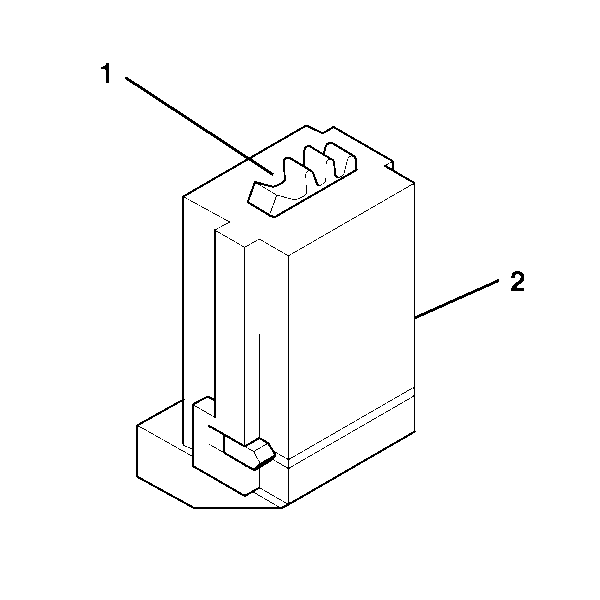

- Verify the alignment of the gear (1) in the ignition switch (2). If gear (1) is not in position shown, turn gear in ignition switch (2) until you reach the correct position.

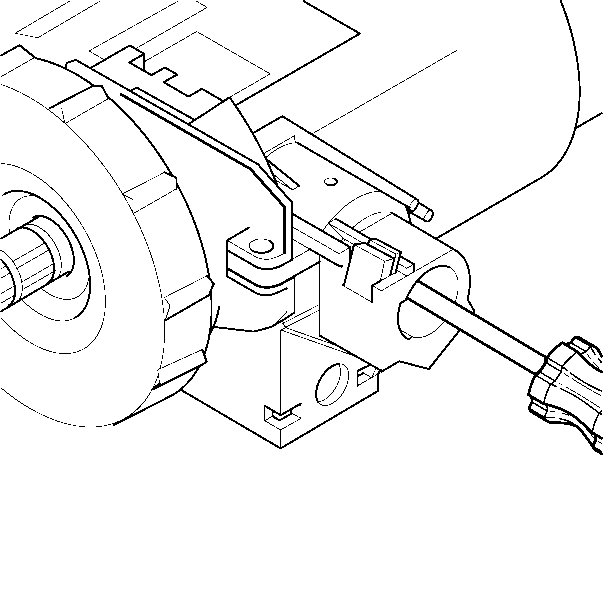

- Use a screwdriver to rotate the ignition lock cylinder case gear counterclockwise until it hits a stop.
- Connect the connector to the ignition switch.

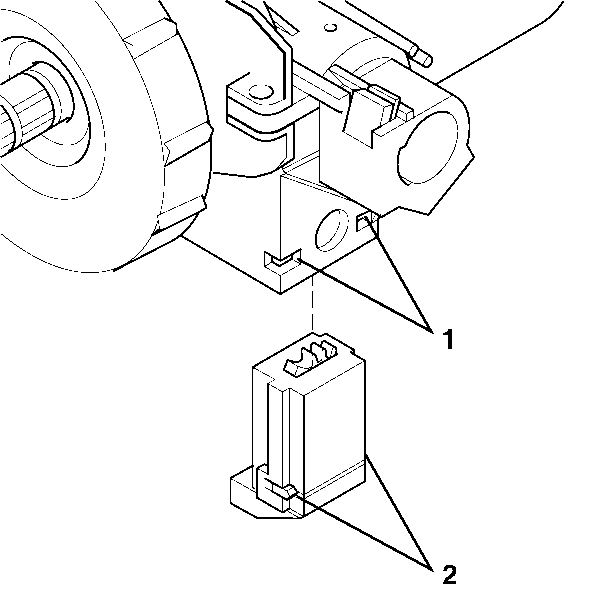

- Insert the ignition switch into the ignition lock cylinder case. The tabs (2) on the ignition switch MUST be seated inside the ignition lock cylinder case (1) for proper installation.

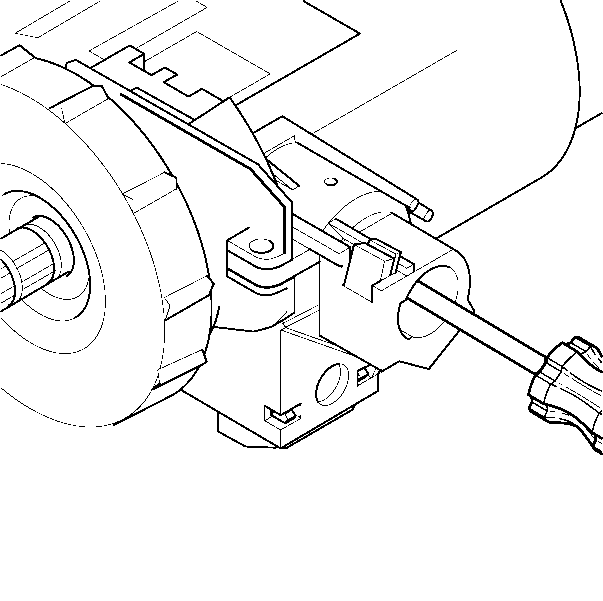

- Use a screwdriver to rotate the ignition lock cylinder case gear clockwise to the START position - allowing it to spring return into the RUN position.
- Install the theft deterrent control module. Refer to Theft Deterrent Module Replacement .
- Connect the passlock and key buzzer to the ignition lock cylinder case.
- Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
- Install the hush and knee bolster. Refer to Knee Bolster Replacement (Cadillac) or Knee Bolster Replacement (Except Cadillac) .
- Enable the SIR system. Refer to SIR Disabling and Enabling .
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
IMPORTANT:
The gears between the ignition switch and the ignition lock cylinder case must be in the correct position. Failure to do so will cause a misalignment of the gears in the ignition switch and the ignition lock cylinder case, which may result in a NO START or BATTERY DRAIN.
IMPORTANT:
In order to reach a stop while rotating the ignition lock cylinder case gear you MUST push and hold in the solenoid on the electric park lock.
