Upfitter Provision Schematics

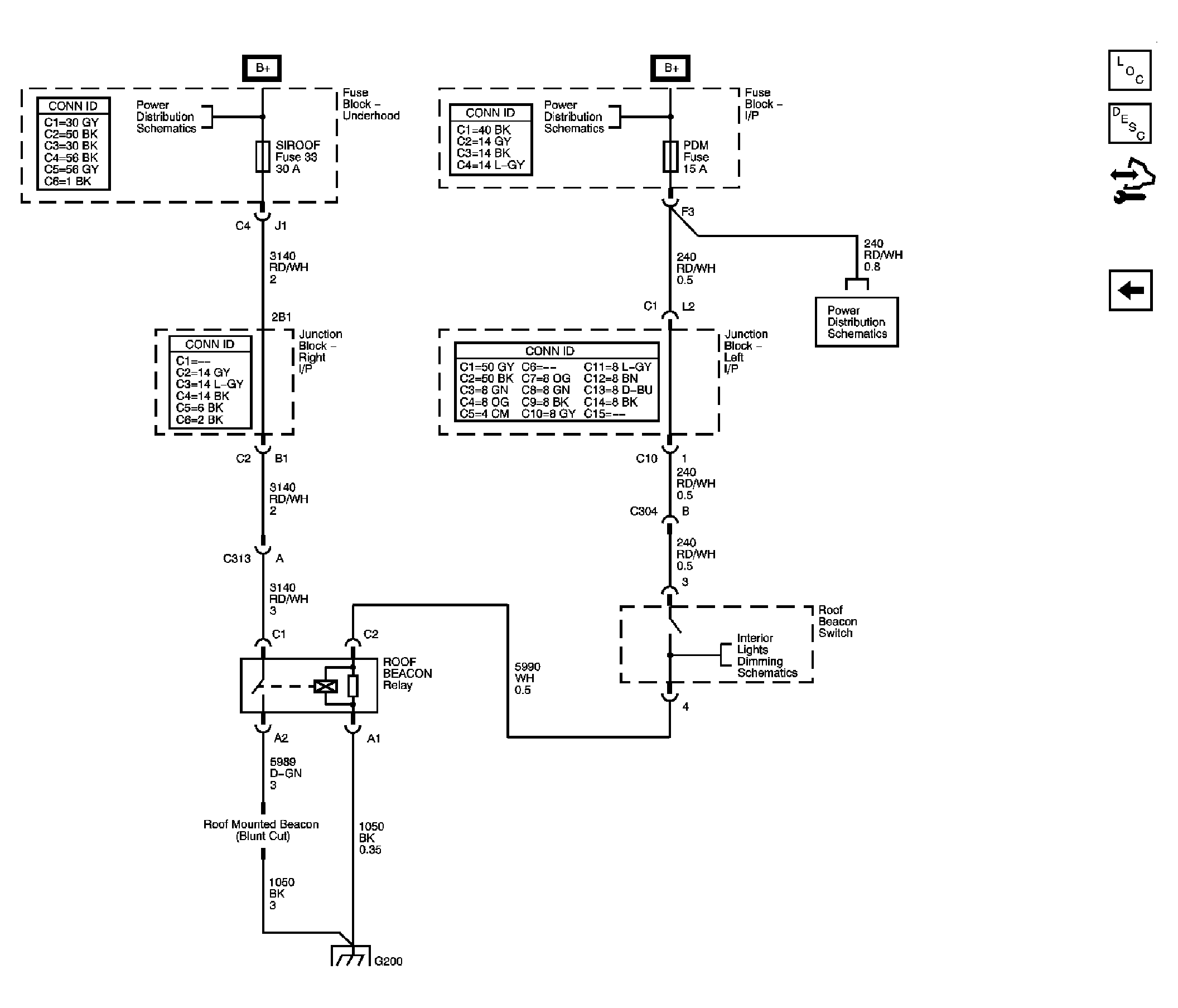

Fig 1: Roof Beacon - TRW/5G4 Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
