Antilock Brake System Schematics

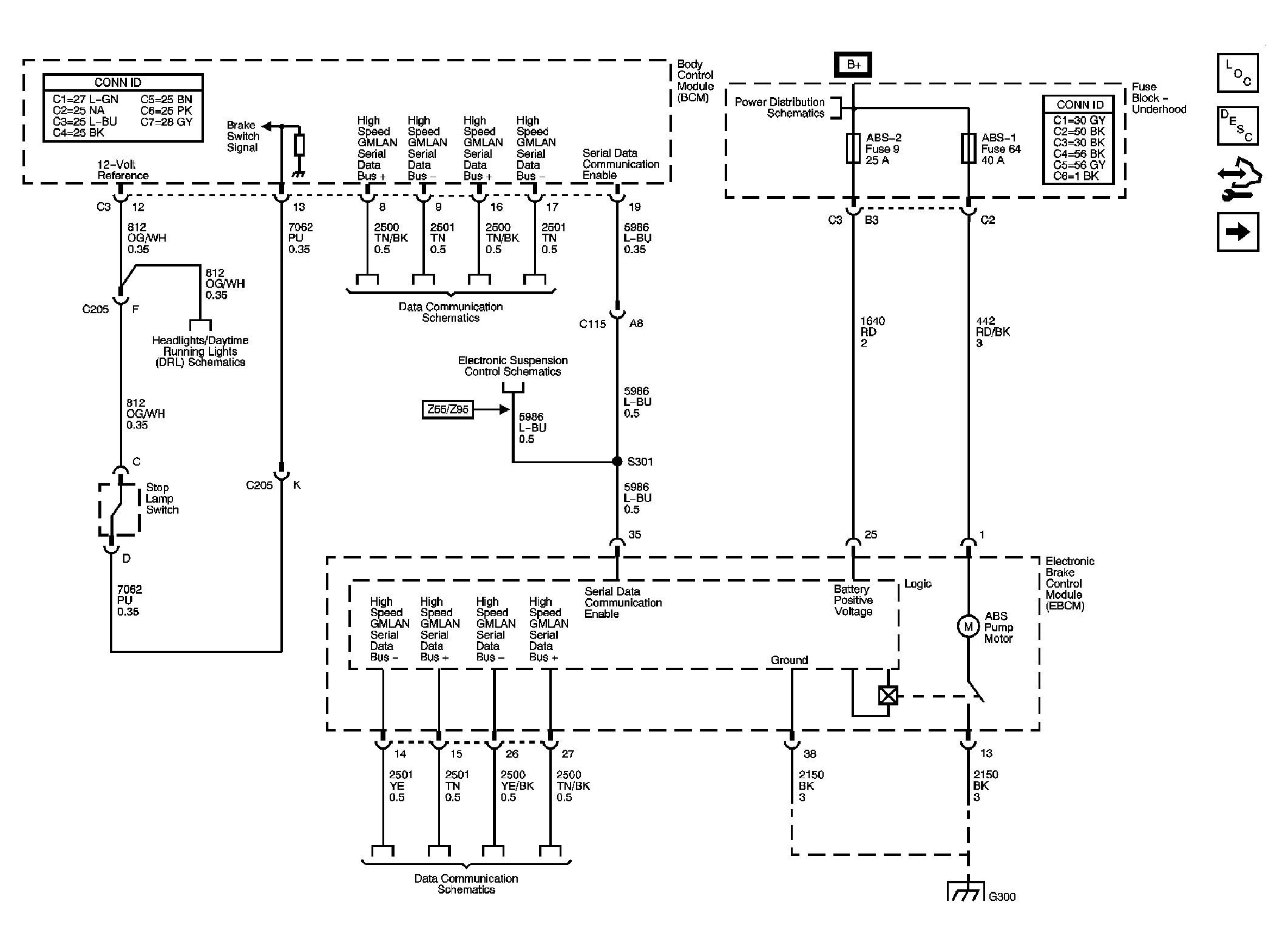

Fig 1: Module Power, Ground, & Serial Data, Pump Motor & Brake Switch Schematic
GM1698183Courtesy of GENERAL MOTORS CORP.

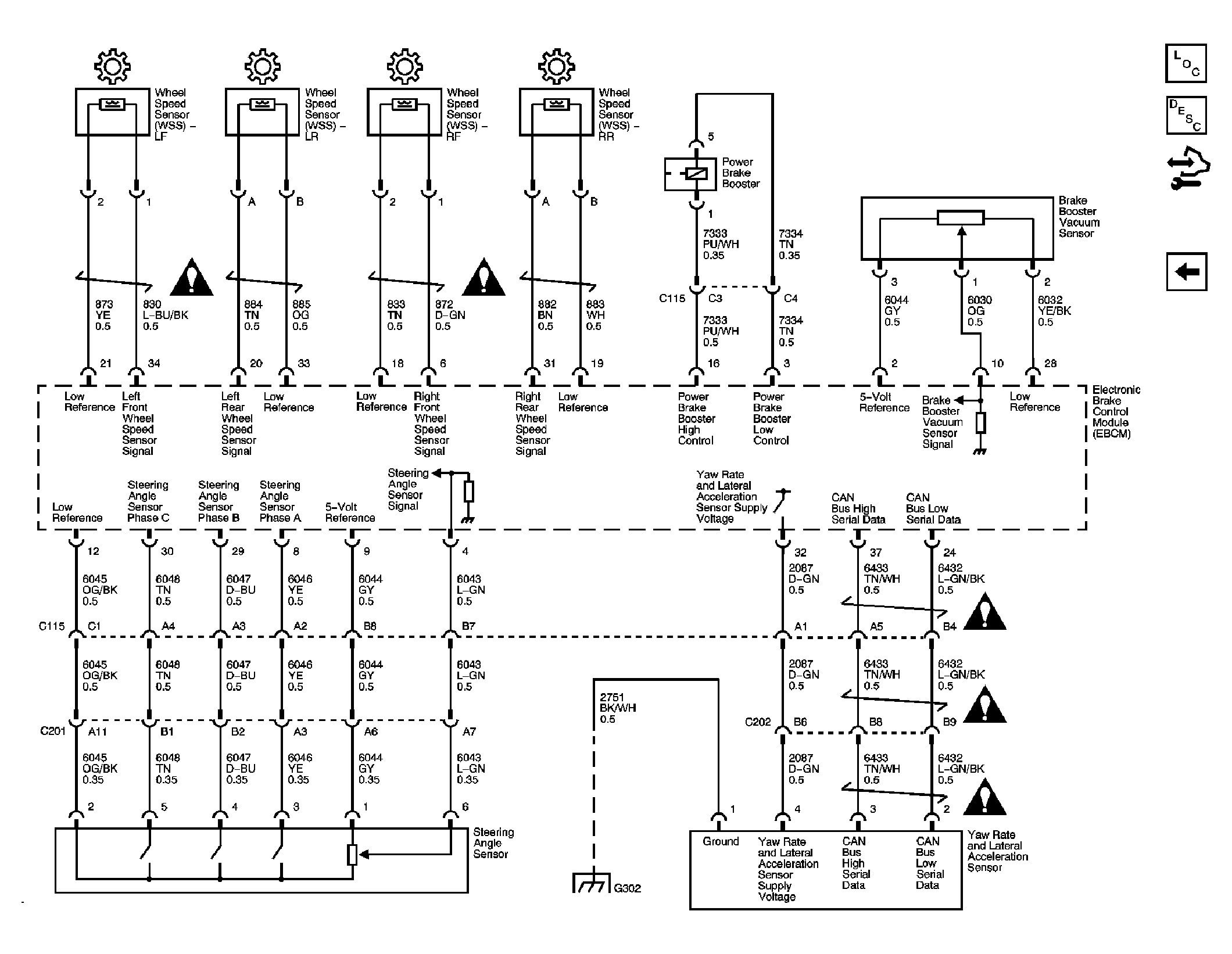

Fig 2: Sensors Schematic
GM1698185Courtesy of GENERAL MOTORS CORP.
