Starting and Charging Schematics

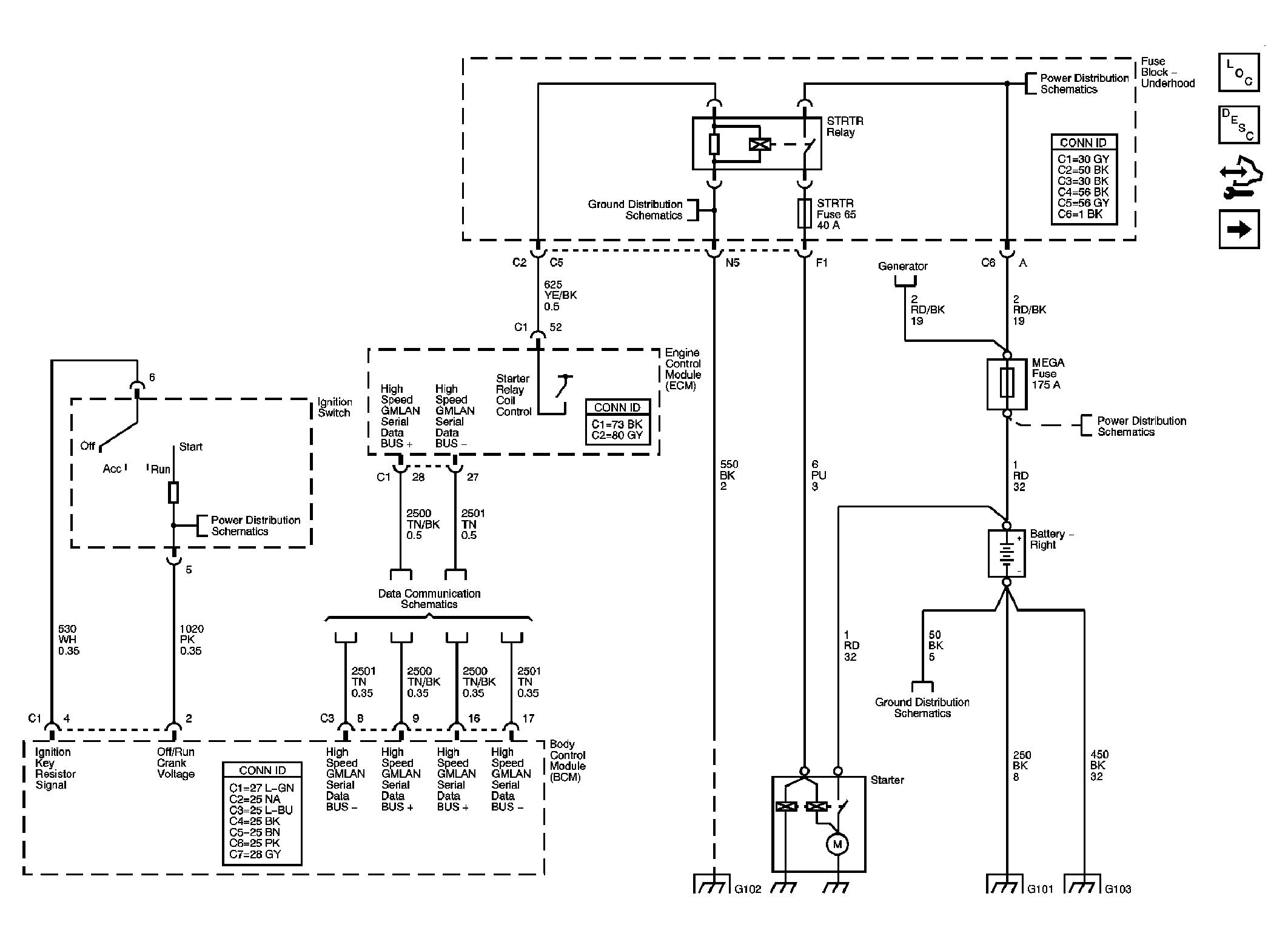

Fig 1: Starting Schematic
GM1693312Courtesy of GENERAL MOTORS CORP.

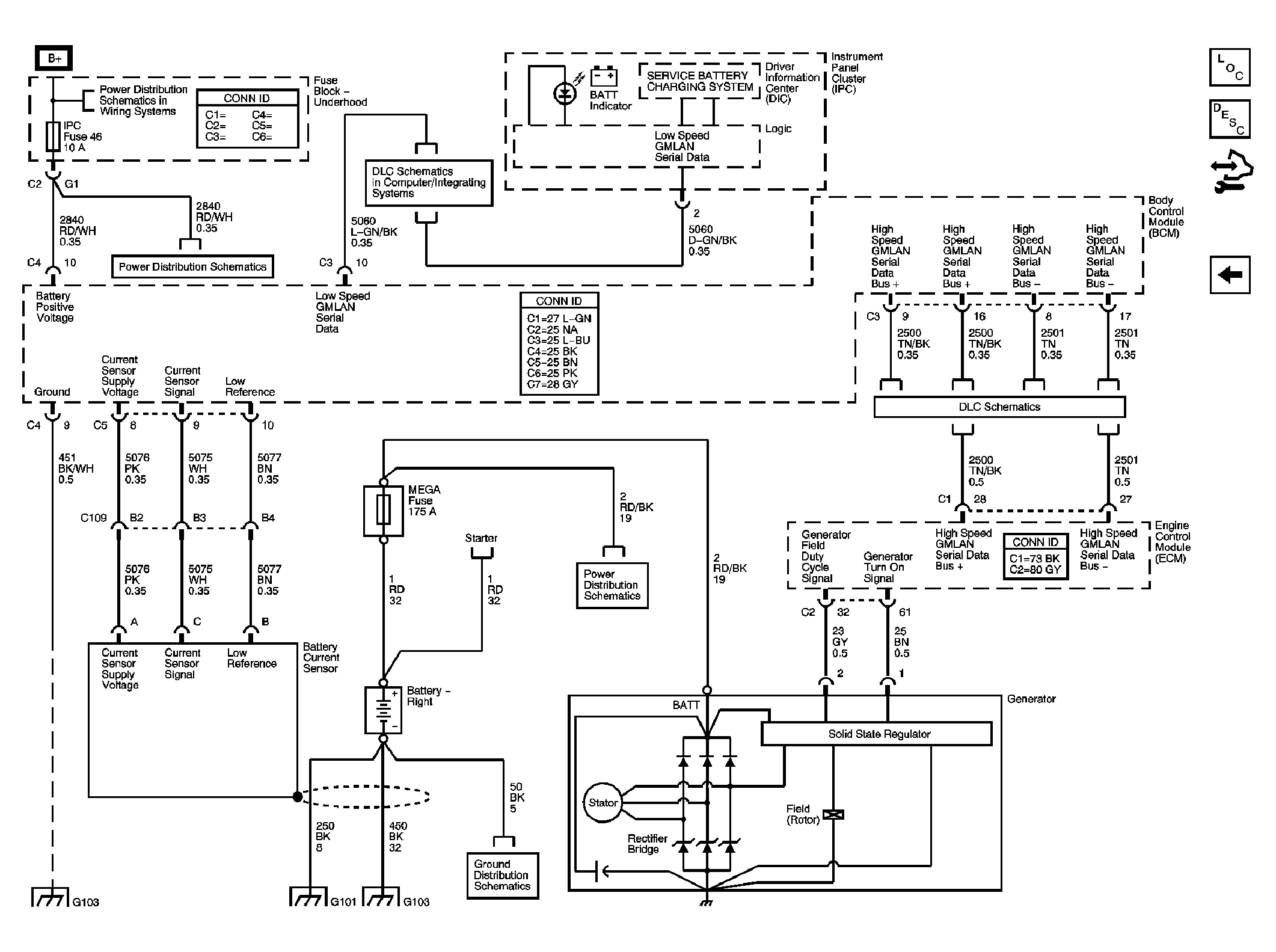

Fig 2: Charging Schematic
GM1693314Courtesy of GENERAL MOTORS CORP.
