Radio Replacement (without RPO SLT)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

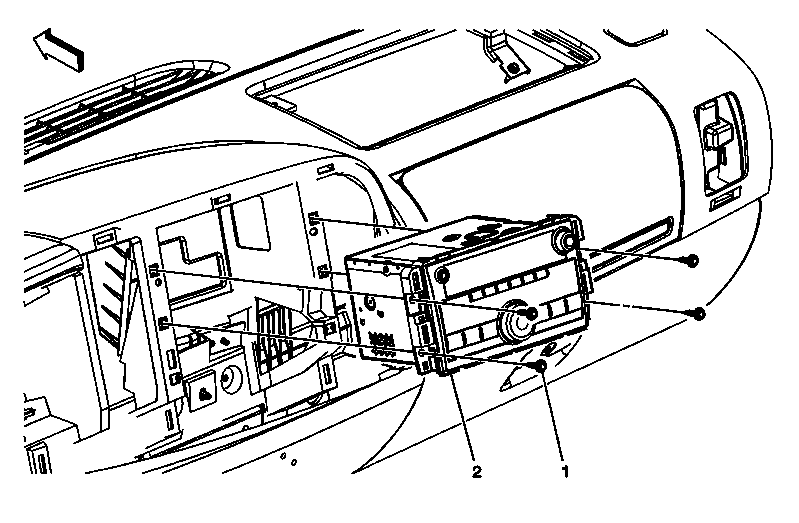

Fig 1: Radio Replacement (without RPO SLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (without RPO SLT) or Instrument Panel Accessory Trim Plate Replacement (with RPO SLT) .
1	Radio Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Radio Assembly Tip: Disconnect the electrical connector. Disconnect the antenna cable. Reprogram the radio after replacement. Refer to Control Module References .
