Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

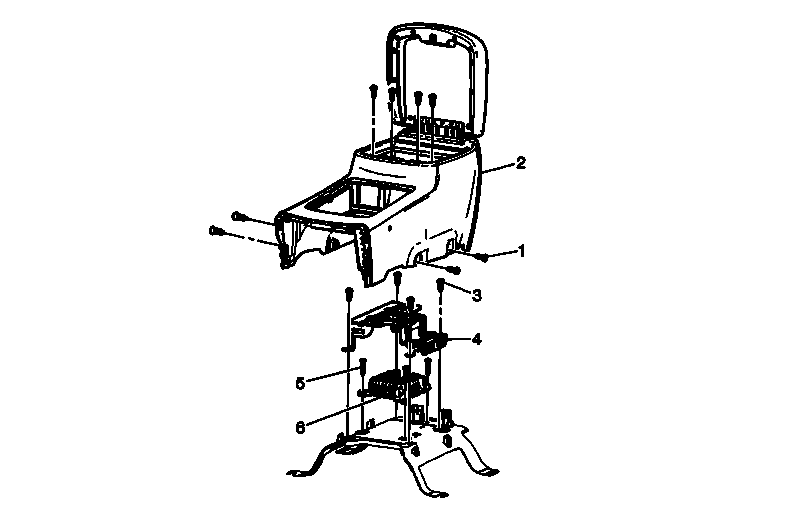

Fig 1: Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Console Screw (Qty: 8) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Floor Console Assembly Refer to Front Floor Console Replacement (with RPO SLT) or Front Floor Console Replacement (without RPO SLT) .
3	Front Floor Console Bracket Screw (Qty: 4) Tighten: 9 N.m (80 lb in)
4	Front Floor Console Bracket
5	Amplifier Screw (Qty: 3) Tighten: 9 N.m (80 lb in)
6	Radio Speaker Amplifier Assembly Tip: Disconnect the electrical connectors. If replacing the amplifier, program the replacement amplifier. Refer to Control Module References .
