Rear Pillar Speaker Replacement
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

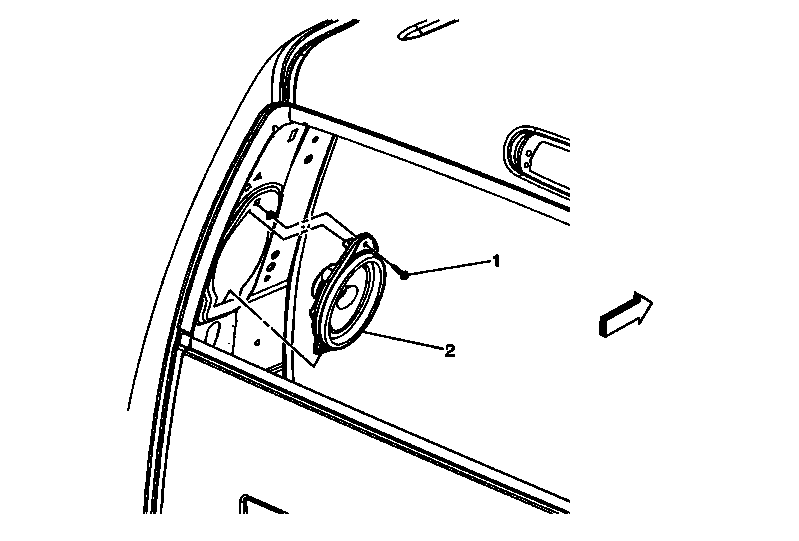

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the body lock pillar trim. Refer to Body Lock Pillar Trim Replacement (Crew Cab) or Body Lock Pillar Trim Replacement (Regular Cab) or Body Lock Pillar Trim Replacement (Extended Cab) . |
|
| 1 | Rear Pillar Speaker Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (25 lb in) |
| 2 | Rear Pillar Speaker Tip: Disconnect the electrical connectors. |
