Radio Front Side Door Lower Speaker Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

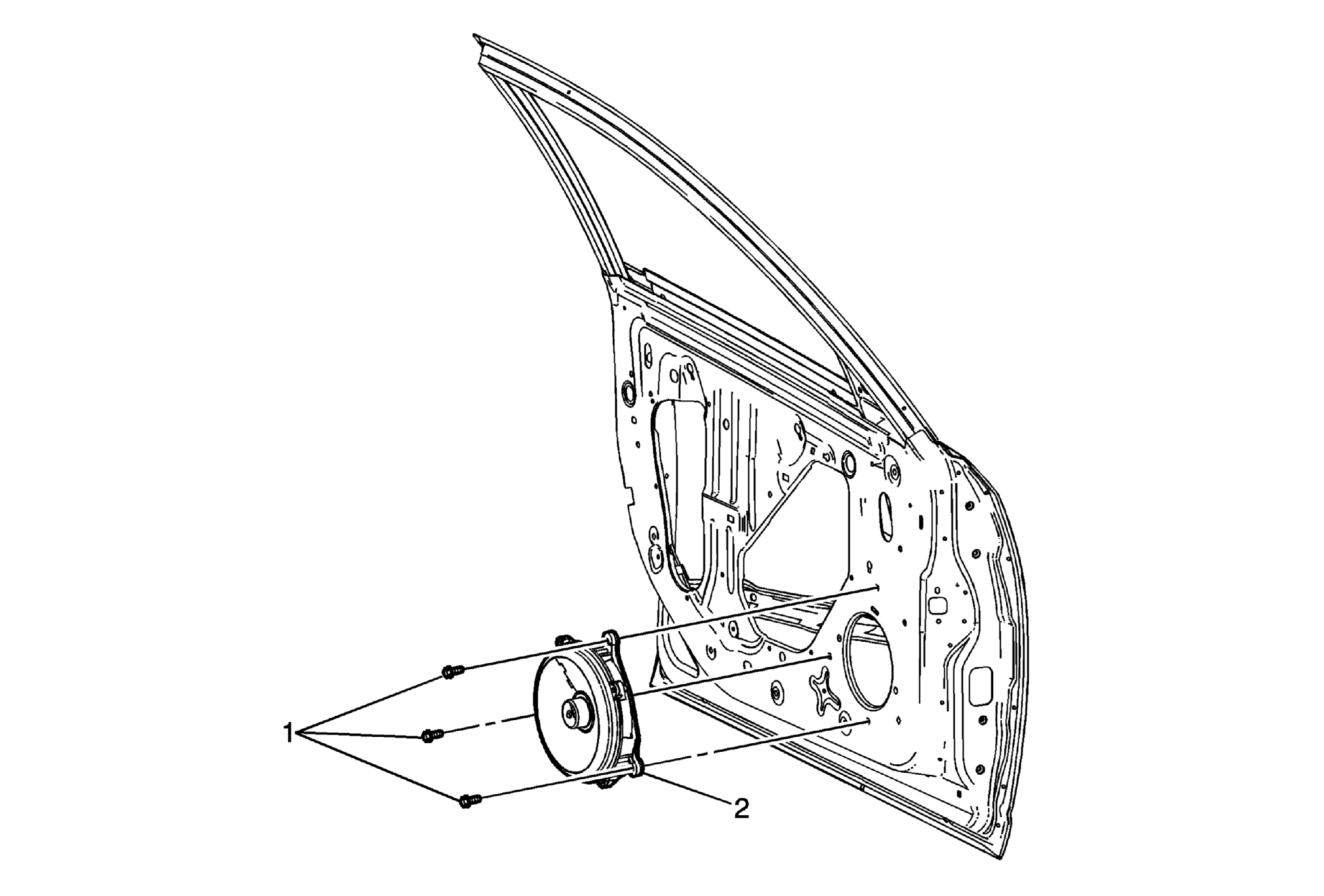

Fig 1: Radio Front Side Door Lower Speaker Replacement
GM1968563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Radio Front Side Door Speaker Bolt/Screw (Qty: 6)
NOTE: Refer to Fastener Notice .

Tighten:  2.5 N.m (22 lb in)
2 Radio Front Side Door Lower Speaker
Procedure:
Disconnect the electrical connectors.
